Tascam DR-10X – Compact Recorder with XLR Microphone Adapter

Product Overview

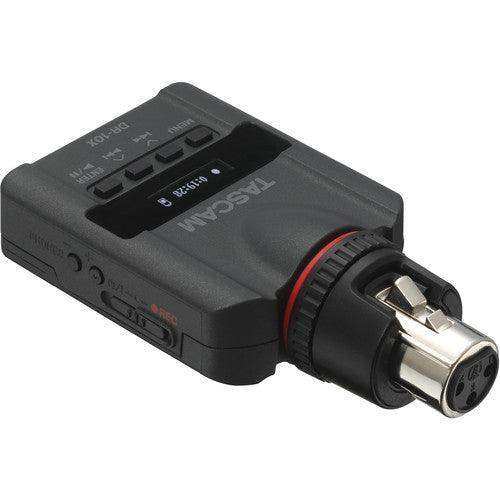

The TASCAM DR-10X is an ultra-compact plug-on PCM recorder that attaches directly to the XLR output of a handheld or stand-mounted dynamic or battery-powered condenser microphone, converting any XLR mic into a self-contained recording unit without cables or a separate recorder body. At 56.3 grams, it fits in the palm of a hand and records to microSD/SDHC media with a locking XLR connector for secure attachment during interviews, press conferences, seminars, and ENG work.

Product Description

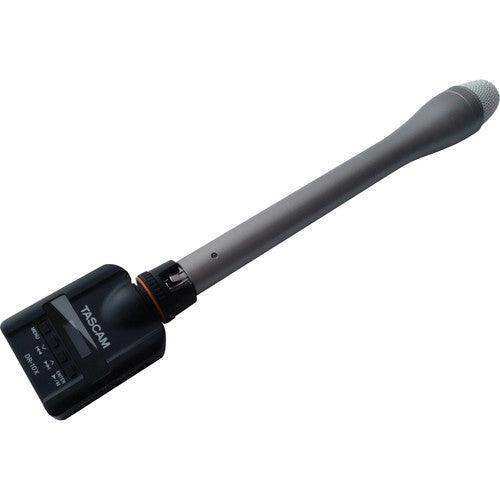

The DR-10X eliminates the need for a separate recorder body, bag, and cable run in interview and reporting situations. Plug it directly onto the XLR handle of any dynamic handheld mic or battery-powered condenser, and the assembly becomes a standalone recording unit. The locking XLR mechanism ensures the recorder stays attached during movement without loosening. A sliding record switch prevents accidental activation; the Hold function prevents stopping during recording. The OLED display shows battery level and recording status clearly. Files are automatically closed if battery runs out unexpectedly to prevent data loss. Headphone output enables monitoring of the recording or live input. The DR-10X is available at Creation Networks alongside the DR-10L Pro for lavalier applications.

Key Features

• Direct XLR Plug-On Design — Attaches directly to XLR dynamic or battery-powered condenser mics for a self-contained recording unit.
• Locking XLR Connector — Secure attachment mechanism prevents loosening during movement or vigorous use.
• 56.3g Ultra-Lightweight — Adds minimal weight to the mic assembly for all-day use without fatigue.
• Sliding Record Switch with Hold — Prevents accidental recording start/stop during operation.
• OLED Display — Battery level and recording status display.
• Headphone Output — Monitor input or recording directly on the unit.
• Auto File Close — Saves the recording if battery runs out unexpectedly.

Typical Applications

• Broadcast ENG and field interview recording
• Press conference microphone recording
• Seminar and lecture handheld mic capture
• Journalism and documentary field reporting
• Event and corporate interview recording

Technical Specifications

Frequently Asked Questions

Does the DR-10X supply phantom power to condenser mics?

The DR-10X is designed for battery-powered condenser microphones. It does not supply 48V phantom power; only mics with their own internal battery can be used with condenser capsules.

Will the DR-10X stay attached during active reporting?

Yes. The locking XLR connector mechanism secures the DR-10X to the mic body, and the Hold function prevents accidental stop during recording, so the unit records continuously even during movement.

Can the DR-10X monitor audio during recording?

Yes. A 3.5mm headphone output allows monitoring of either the live input signal or playback of recorded files directly on the unit.

What warranty applies to the DR-10X?

TASCAM products purchased through authorized dealers including Creation Networks carry TASCAM's standard limited warranty.
