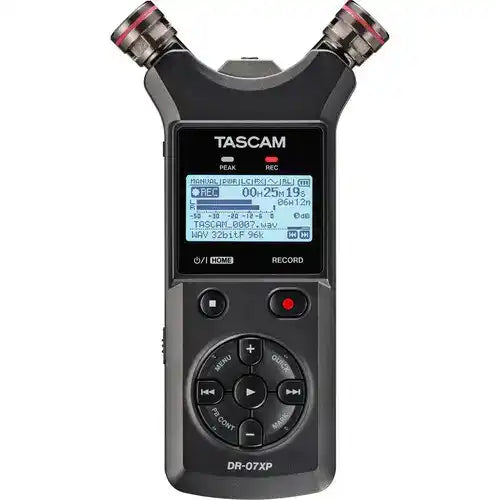

Tascam DR-07XP – 2-Channel 32-Bit Float Handheld Recorder with Adjustable Stereo Mics

Product Overview

The TASCAM DR-07XP is a 2-channel 32-bit float portable handheld recorder with USB-C audio interface and adjustable unidirectional stereo condenser microphones that switch between A/B and X/Y configurations. Designed for musicians, videographers, and content creators, it combines level-set-free 32-bit float recording at up to 96 kHz with directional mic flexibility for stereo imaging control in any environment. It records to microSDXC media up to 512 GB and functions as a driverless USB-C audio interface for direct DAW recording.

Product Description

The DR-07XP's adjustable unidirectional mics provide stereo imaging options: X/Y for tight stereo pickup with minimal phase difference, and A/B for wider ambient stereo capture — useful for music performances, acoustic instrument recording, and location sound. The mics handle up to 125 dB SPL without distortion, covered by 32-bit float's unlimited dynamic range that eliminates clipping regardless of source level. Recording modes include 32-bit float, 24-bit, and 16-bit at 44.1, 48, and 96 kHz, plus MP3. A backlit LCD provides clear display in any lighting. The driverless USB-C interface connects directly to Mac, PC, and iOS devices for recording to DAW software without driver installation. Compared to the DR-05XP's fixed omnidirectional mics, the DR-07XP's adjustable directional mics give greater control over stereo pickup pattern and front-of-unit rejection. Available at Creation Networks alongside the DR-05XP.

Key Features

• 32-Bit Float Recording — Up to 96 kHz, no level setting required; correct in post without clipping or noise artifacts.
• Adjustable A/B and X/Y Stereo Mics — Unidirectional condenser mics switch between wide-ambient and tight-imaging stereo patterns.
• Up to 125 dB SPL — Handles loud sources without mic distortion.
• microSDXC up to 512 GB — Extended storage for long-duration recording.
• Driverless USB-C Interface — 2-in/2-out plug-in-and-play for Mac, PC, and iOS.
• Multiple Recording Modes — 32-bit float / 24-bit / 16-bit at 44.1/48/96 kHz + MP3.
• One-Handed Operation — Compact form with backlit LCD for any lighting environment.

Typical Applications

• Music performance and instrument recording
• Audio for video production and DSLR filmmaking
• Podcast and interview recording
• Field recording and sound design
• Dictation and meeting capture

Technical Specifications

Frequently Asked Questions

What is the difference between X/Y and A/B mic positions on the DR-07XP?

X/Y positions the mics close together for tight stereo imaging with minimal phase difference — good for music and dialogue. A/B spaces the mics apart for wider ambient stereo, suited to room ambience and larger ensembles.

Does the DR-07XP need drivers to work as a USB audio interface?

No. It connects as a standard class-compliant USB device without drivers on Mac, PC, and iOS.

What is the difference between the DR-07XP and DR-05XP?

The DR-07XP has adjustable unidirectional mics (A/B/X/Y) for directional stereo control. The DR-05XP has fixed omnidirectional mics for all-around capture. Both use the same 32-bit float engine.

What warranty applies to the DR-07XP?

TASCAM products purchased through authorized dealers including Creation Networks carry TASCAM's standard limited warranty.
