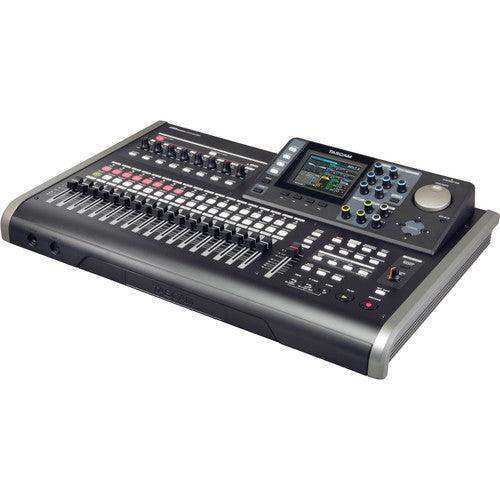

Tascam DP-24SD 24-Track Digital Portastudio

Availability: Call for Availability
Availability: Direct Ship
Tascam SKU: DP-24SD
No reviews
Price:
$525.00 $699.00

Description

The TASCAM DP-24SD Digital Portastudio records 24 tracks to solid-state drive, with up to eight track simultaneous recording via XLR and 1/4" combo jacks. Input processing includes compression and limiting, as well as guitar amp simulation and multi-effects for use with the instrument-level input. The color display and channel strip knobs make mixing fast and creative, and the included 4GB SD card can be replaced with up to 32GB SDHC media or swapped with other cards between projects for up to 50 hours of music.

The DP-24SD has 8 XLR-TRS combo inputs that can withstand multi-microphone recording with drums.
Phantom power supply is also possible, with the INPUT H compatible with direct guitar inputs.
With dynamic effects, which are indispensable for high-quality recording, up to 8 effects can be used for each input.
In addition, the DP-24SD comes with built-in guitar multi-effects, tuner, and metronome, allowing users to complete recording preparations with this device alone.

You don't need a PHD in studio recording to sound like a pro with the TASCAM DP-24DS Portastudio. We put everything you need at your fingertips so you can see and control everything that's happening.
Full-color LCD screens and self-illuminated buttons visually communicate the recording process, and everything from level setting, compression, and limiting happens with sturdy sliders, buttons, and knobs.
The TASCAM DP-24DS's intuitive design allows you to quickly dive deeper into any setting without distracting you from your creative session

  • Record up to 8 Tracks Simultaneously
  • Records to SD/SDHC Cards
  • 19 Faders
  • Up to 24 Track Playback
  • 24-bit/48 kHz Resolution
  • 8 Combo XLR/TRS Mic Inputs
  • Built-In Mixing & Mastering Effects
  • File Sharing via USB

TASCAM DP-24SD Specs
Form Factor Rackmount
Number of Tracks 24
Maximum Simultaneous Tracks 24 x Recording
Maximum Sampling Rate 48 kHz / 24-Bit
Connectivity
Analog Audio I/O 1 x Stereo RCA Coaxial Unbalanced Output
2 x 1/4" TRS Balanced Monitor Output
2 x 1/4" TRS Headphone Output
2 x 1/4" TS Unbalanced FX Send
7 x Combo XLR-1/4" TRS Balanced Mic/Line Input
1 x Combo XLR-1/4" TRS Balanced/Unbalanced Line/Hi-Z Input
USB (Non-Host) 1 x Mini-USB (USB 2.0, External Storage)
Other I/O 1 x 2.5 mm TRS Remote Input
Performance
Frequency Response 20 Hz to 20 kHz ±1 dB
Maximum Input Level XLR Inputs:
+2 dBu
1/4" Inputs:
+20 dBu
Maximum Output Level FX Send:
+6 dBV
Monitor Outputs:
+14 dBV
RCA Outputs:
+6 dBV
Headphone Output Power 70 mW per Channel into 32 Ohms (Max, 0.1% THD)
Impedance 1/4" FX Send:
200 Ohms
Monitor Outputs:
200 Ohms (Balanced)
RCA Outputs:
200 Ohms
XLR Inputs:
2.4 Kilohms
1/4" Inputs:
≥ 22 Kilohms
Hi-Z Inputs:
1 Megohm
SNR ≥ 90 dB
THD ≤ 0.01%
Audio Storage & Playback
Supported Media SD Card
Memory Card Slot 1 x SDHC
Supported Media Capacity SD:
512 MB Minimum to 2 GB Maximum
SDHC:
4 GB Minimum to 32 GB Maximum
File System Support SD: FAT16
SDHC: FAT32
Compatibility
OS Compatibility Windows XP
Windows Vista
Windows 7
Windows 8
macOS 10.6 or Later
*As of November, 2021: Check with manufacturer for the most up-to-date compatibility
Processor Requirement PC:
300 MHz Intel Pentium or Better
Mac:
266 MHz PowerPC G3 or Better
RAM Requirements PC:
128 MB
Mac:
64 MB
Required Hardware Available USB 2.0 Port
Power
Power Requirements AC/DC Power Adapter (Included)
Power Consumption 12 W
Physical
Operating Temperature 41 to 95°F / 5 to 35°C
Dimensions 20.2 x 4.1 x 13.4" / 514 x 104 x 340 mm
Weight 13.7 lb / 6.2 kg
Packaging Info
Package Weight 16 lb
Box Dimensions (LxWxH) 23.7 x 17.5 x 7.2"
