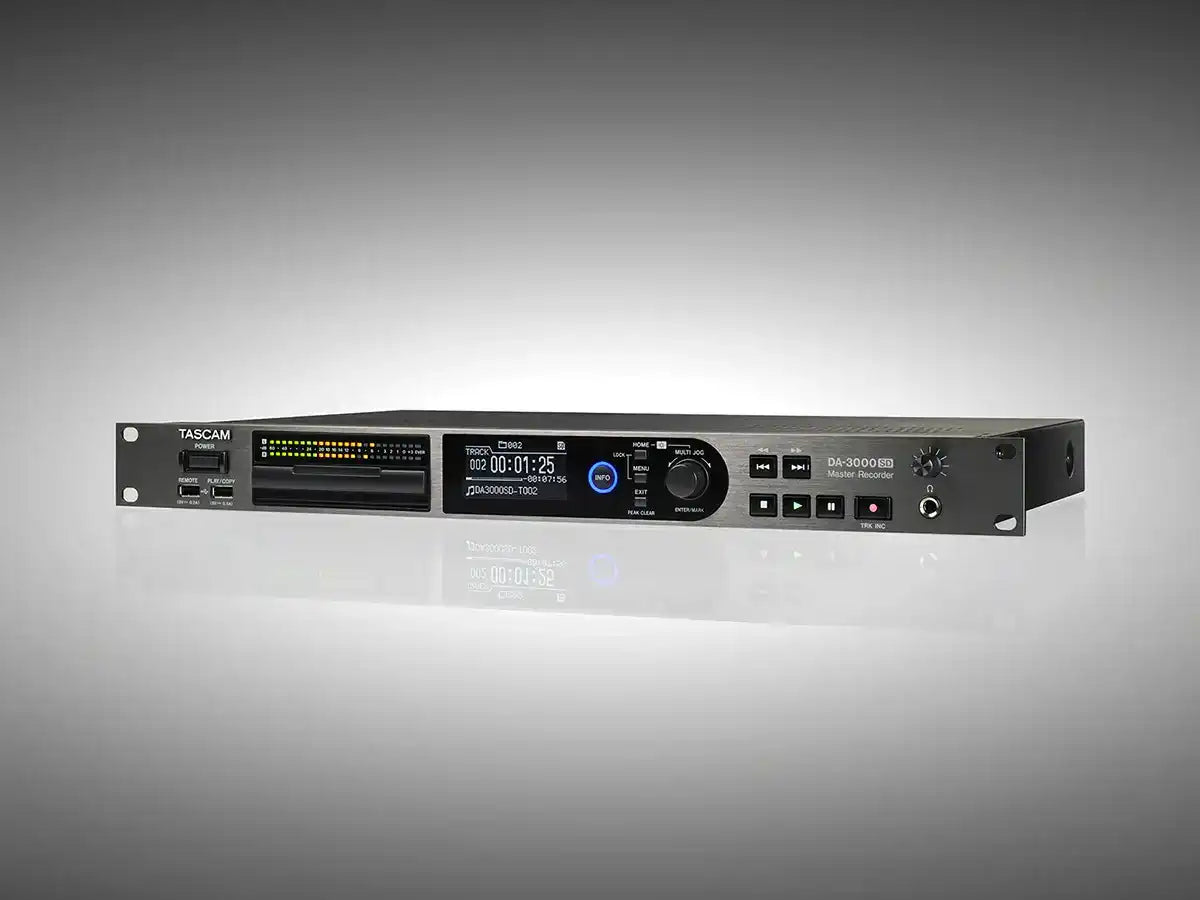

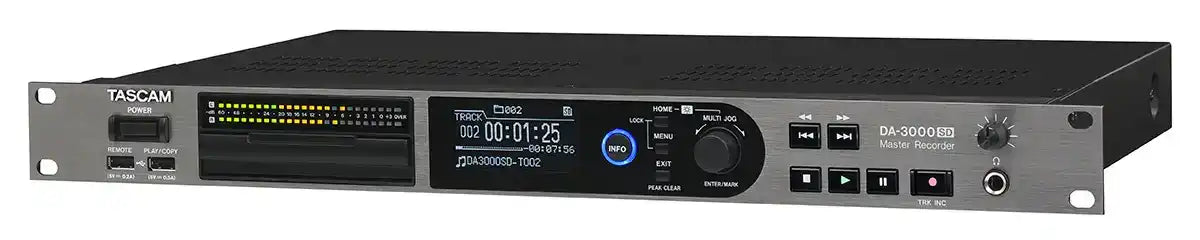

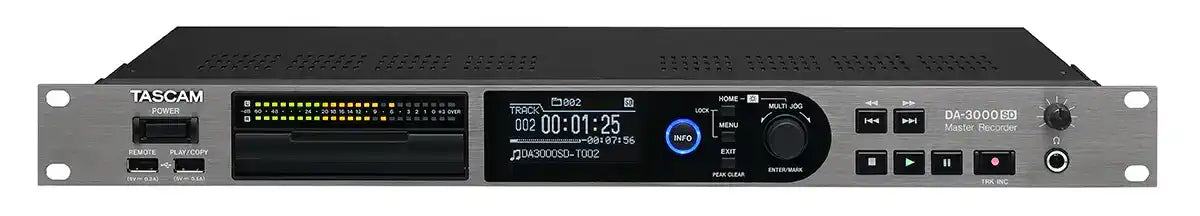

Tascam DA-3000SD – 2-Channel DSD/PCM Master Recorder & AD/DA Converter

Product Overview

The TASCAM DA-3000SD is a 2-channel DSD/PCM master recorder and reference-grade AD/DA converter designed for recording studios, mastering engineers, and broadcast facilities that require the highest available capture resolution. It records PCM audio up to 192 kHz and DSD up to 5.6 MHz directly to SD/SDHC/SDXC card media, and supports analog, AES/EBU, S/PDIF, and SDIF-3/DSD-raw I/O for integration with any professional signal chain. The DA-3000SD is the updated version of the original DA-3000, adding support for high-capacity SDXC media up to 512 GB.

Product Description

The DA-3000SD carries on the legacy of the DA-3000 as an industry benchmark for 2-channel master recording and AD/DA conversion. Its power supply section uses an EI core transformer with separate windings for digital and analog circuits, isolating noise between domains. The output audio circuit uses a dual monaural configuration — two independent mono circuits — to eliminate crosstalk between channels. All audio circuit stages use a fully balanced architecture to minimize noise floor at the input and output. A TCXO rated at less than 1 ppm provides clocking accuracy for long-duration sessions. Recording at 5.6 MHz DSD captures audio at higher resolution and wider dynamic range than any PCM bounce from a DAW, and DSD archives can be downconverted to any needed PCM format — including 24-bit/96kHz — using TASCAM Hi-Res Editor without sonic compromise as formats evolve. Multiple DA-3000SD units can be synchronized for sample-accurate multitrack DSD recording environments. The SD card media makes session transport and storage straightforward; the 512 GB SDXC maximum provides over 100 hours of 2-channel recording at 24-bit/192kHz. The DA-3000SD is available at Creation Networks.

Key Features

• DSD Recording up to 5.6 MHz — Captures audio at the highest commercially available resolution, archiving sessions for future downconversion to any PCM format.
• PCM Recording up to 192 kHz — High-resolution PCM capture with greater dynamic range than DAW bounces at equivalent sample rates.
• Dual Monaural Output Circuit — Two independent mono output circuits eliminate inter-channel crosstalk for reference-quality stereo reproduction.
• Fully Balanced Audio Circuitry — All stages run balanced to minimize noise and interference throughout the signal path.
• EI Core Transformer Power Supply — Separate digital and analog windings isolate switching noise from the audio circuits.
• TCXO Clock (<1 ppm) — Temperature-compensated crystal oscillator provides stable clocking for long-duration mastering sessions.
• SDXC Media up to 512 GB — Over 100 hours of 2-channel 24-bit/192kHz recording on a single card; simple physical transport of sessions.
• Multi-Unit Sync — Multiple DA-3000SD units can be synchronized for sample-accurate DSD multitrack recording.

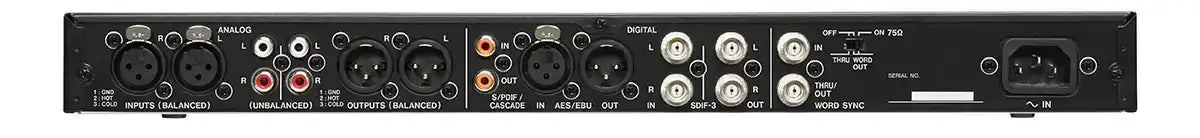

• Comprehensive I/O — Analog XLR and RCA; PCM digital via AES/EBU and S/PDIF; DSD via SDIF-3 and DSD-raw.

Typical Applications

• Mastering studio 2-channel capture and archiving
• Broadcast facility high-resolution recording
• Recording studio DSD multitrack synchronization
• Post-production reference AD/DA conversion
• Auditorium and live event high-resolution archive recording

Technical Specifications

Frequently Asked Questions

What is the advantage of DSD recording over PCM for archiving?

DSD captures audio at higher resolution and wider dynamic range than PCM. A 5.6 MHz DSD archive can be downconverted to any PCM format — including 24-bit/96kHz — without sonic compromise, future-proofing the master as playback formats evolve.

Can multiple DA-3000SD units be synchronized?

Yes. Multiple units can be synchronized for sample-accurate recording and playback, enabling a DSD multitrack environment across synchronized recorders.

What media does the DA-3000SD support?

The DA-3000SD records to SD, SDHC, and SDXC cards up to 512 GB, providing over 100 hours of 2-channel recording at 24-bit/192kHz on a single card.

How does the DA-3000SD differ from a DAW bounce?

Recording to the DA-3000SD captures audio through dedicated reference-grade AD converters with a fully balanced circuit and isolated power supply, achieving resolution and dynamic range that a DAW software bounce cannot replicate internally.

What warranty applies to the DA-3000SD?

TASCAM products purchased through authorized dealers including Creation Networks carry TASCAM's standard limited warranty. Contact Creation Networks for support.
