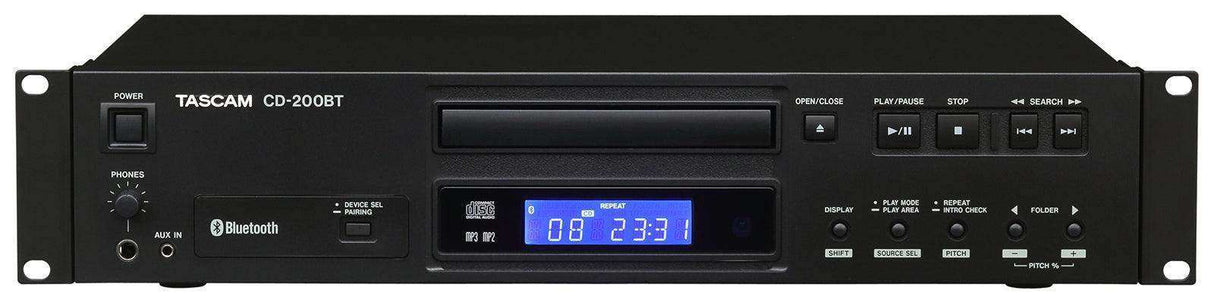

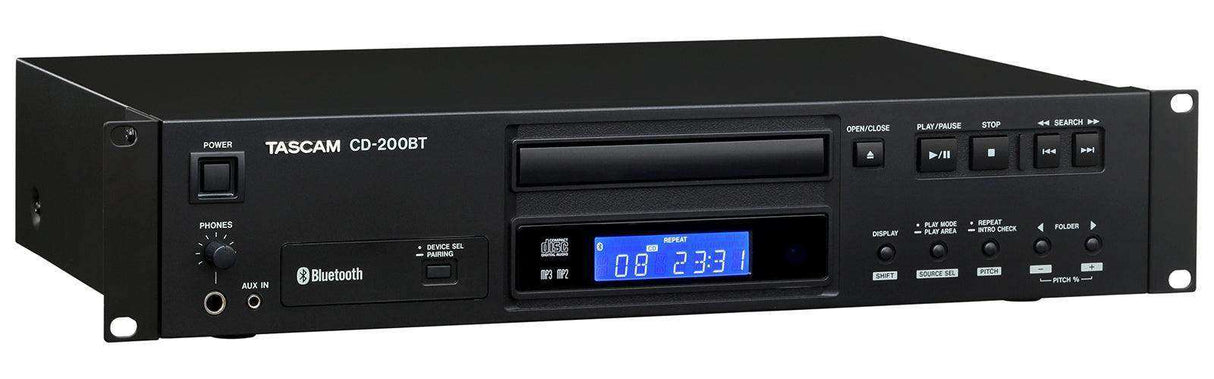

Tascam CD-200BT CD Player/Bluetooth Receiver

Availability: Call for Availability
Availability: Direct Ship
Tascam SKU: CD-200BT
No reviews

Price:
Sale price$399.00 Regular price$599.00

Description

Play High Quality Audio Sources Easily Using Bluetooth®

Wireless Playback of a Variety of Audio File Formats from Devices that Support Bluetooth®

Through the antenna located in the front of the CD-200BT, audio file playback signals can be received from a variety of Bluetooth® compatible devices. The types of files that can be played back depend on the transmitting device; so any file type that can be played back by iTunes, Windows Media Player, smartphone player apps and other music applications can be played through this unit. Bluetooth® playback uses a wireless connection, so no new wiring is necessary to use compatible audio sources as long as they are in signal-range, allowing easy and speedy playback.

Device Selection Function Allows Transmission Devices to Be Registered in Advance for Quick Switching and Operation

Bluetooth® playback requires pairing. Normally, pairing is one to one, but the CD-200BT has a device selection function that can be used to pair with multiple transmitting devices. By registering devices to be used in advance, you can switch smoothly between transmission devices for playback with minimal connection interruption time. (Only one device can be used for playback at a time) In addition, since the name of the transmission device currently being used for audio playback can be shown on the display, you can check the connection status within this unit.

Wireless Playback with High Quality Audio

A variety of different profiles are used for Bluetooth® transmission depending on the application. The CD-200BT supports the A2DP (Advanced Audio Distribution Profile) for high audio quality music playback, and SBC (Sub Band Codec), a standard A2DP codec. In addition, it supports the aptX® codec, making high quality wireless audio playback possible. The aptX® codec also has an error recovery function, so audio is much less likely to be interrupted, compared to ordinary SBC transmission.

Other Features

High-Quality CD Drive Designed and Built by TEAC

All models in the CD-200 series have the same highly-regarded and reliable TEAC designed CD drive. By undertaking development ourselves and including our drives in the player, we have achieved higher dependability, quality and reputation.

Supports for Numerous Audio Formats

The CD-200BT is perfect for any install scenario where audio format versatility is needed.

10-Second Shockproof Memory Prevents Skipping from Vibrations and Other Causes

The 10-second shockproof memory prevents skipping from vibration and other causes. Data stored in the player's memory can be played back without skipping, preventing undesired interruptions.

More from the Manufacturer

  • Disc Capacity: 1
  • Media Type Supported: CD-RW
  • Formats Supported: CD-DA
  • Formats Supported: WAV
  • Formats Supported: MP3
  • Formats Supported: MP2
  • Formats Supported: CD-Text
  • Headphone: Yes
  • Auxiliary Input: Yes
  • Input Voltage: 120 V AC
  • Form Factor: Rack-mountable
  • Height: 3.7"
  • Width: 18.9"
  • Depth: 11.7"
  • Weight (Approximate): 9.90 lb
  • Environmentally Friendly: Yes
  • Environmental Certification: RoHS
  • Environmental Certification: WEEE
  • Country of Origin: China

Playback media CD, CD-ROM, CD-R, CD-RW (12cm / 8cm)
Playback format
CD-DA Stereo, 44.1kHz, 16-bit
WAV Stereo, 8k / 11.025k / 12k / 16k / 24k / 32k / 44.1k / 48k Hz, 8/16-bit
MP2 Stereo, 32k / 44.1k / 48k Hz, 32k to 384k bps
MP3 MPEG1 Audio Layer III, 32k / 44.1k / 48k Hz, 32k to 320k bps, VBR
Pitch control ±14%
Analog audio input
AUX
Connector 1/8" (3.5mm) Stereo mini jack × 1
Input impedance 22kΩ
Nominal input level –20dBV
Maximum input level –4dBV

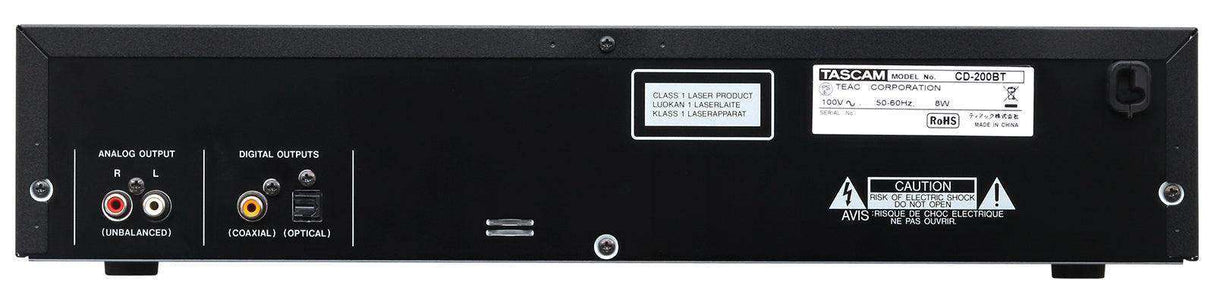

Analog audio output
UNBALANCED
Connector RCA Pin jack × 1 pair
Output impedance 200Ω
Nominal output level –10dBV (0.32Vms)
Maximum output level +6dBV (2.0Vms)
Digital audio output
COAXIAL
Connector RCA Pin jack × 1
Output impedance 75Ω
Format IEC60958-3 (S/PDIF)
OPTICAL
Connector TOS (JEITA RC-5720C) × 1
Format IEC60958-3 (S/PDIF)
Headphone out
Connector 1/4" (6.3mm) Stereo phone jack × 1
Maximum output level 20mW + 20mW or more (THD+N 0.1% or less, into 32Ω loaded)
Power AC120V, 60Hz
Power consumption 15W
Dimensions (W×H×D) 18.9" × 3.7" × 11.7" / 481 × 94.5 × 298 mm
Weight 11.5 lbs. / 5.2 kg
Operating temperature 41˚F to 95˚F / 5 ˚C to 35˚C
Inclination of installation 5˚ or less
Backup Memory Items Elapse time / Title display setting (CD), Playback mode (CD), Program (when loaded), Current folder (when CD loaded), Current source, Repeat playback function setting (ON/OFF), Pitch control (ON/OFF, CD) Pitch control value (CD)
Standard accessories Wireless remote controller (RC-CD200iL), AA battery × 2, Rack mounting screw, Warranty card, Owner's manual



Audio performance

Frequency response 20Hz to 20kHz, ±1dB (playback, JEITA)
Distortion 0.01% or less (during playback, JEITA)
S/N ratio 90dB or more (playback, JEITA)
Dynamic range 90dB or more (playback, JEITA)
Channel separation 90dB or more (playback, JEITA)
