Tascam BO-32DE – 32-Channel Euroblock to D-Sub Breakout Box
Product Overview

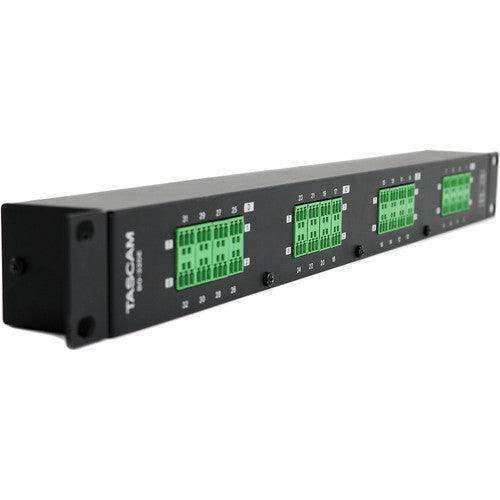

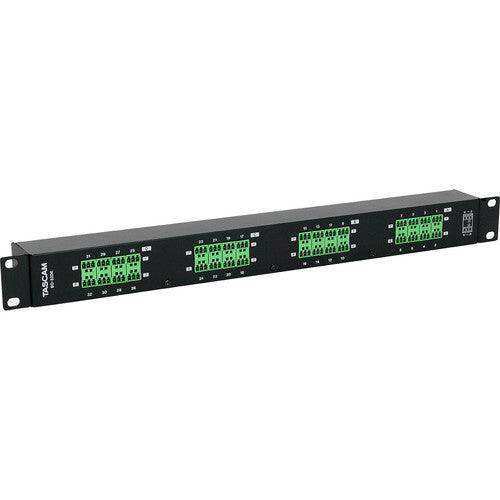

The TASCAM BO-32DE is a 1U rack-mount 32-channel breakout adapter that bridges 32 Euroblock (Phoenix-style) connectors on the front panel to four D-Sub 25-pin connectors on the rear, providing a neat and reliable termination point for Euroblock-wired installations connecting to TASCAM ML-16D, ML-32D, and other D-Sub-equipped Dante or analog audio equipment. The unit can be mounted facing forward or backward in a rack for flexible installation, and fits within 45mm depth behind the rack ears for rear-of-rack mounting.
Product Description
The BO-32DE eliminates the need for custom D-Sub-to-Euroblock breakout cables by providing a permanent 1U rack panel with 32 front-accessible Euroblock terminals each internally wired to one of the four rear D-Sub 25-pin connectors. Included Euroblock plugs with tabs and wire-band attachment points minimize stress on signal wires during connection and disconnection in permanent installations. The unit is bidirectional — it passes signal in either direction without signal processing, making it suitable as both an input and output breakout panel on the same rack. Compatible with ML-16D (requires 2 BO-32DE units for full 32-channel I/O) and ML-32D (requires 2 BO-32DE units for full 32-channel I/O). The rack ears can be removed for tabletop use. Available at Creation Networks alongside the ML-16D, ML-32D, BO-16DX/IN, and BO-16DX/OUT.
Key Features
- 32 Euroblock Terminals to 4 D-Sub 25-Pin Connectors — Complete conversion of 32 Euroblock signals to 4 D-Sub channels in a single 1U rack unit.
- Bidirectional — Input or Output — Passes signal in both directions for input or output breakout use.
- ML-16D and ML-32D Compatible — Direct D-Sub interface with TASCAM Dante/analog converters.
- Forward or Backward Rack Mounting — Rack ears reversible for front or rear rack installation.
- 45mm Depth Behind Rack Ears — Fits in shallow rear-of-rack spaces.
- Tabletop Use — Rack ears removable for desktop installations.
Typical Applications
- ML-16D and ML-32D Euroblock I/O termination panel
- Dante analog converter Euroblock-wired installation
- Permanent installation Euroblock-to-D-Sub patching for zone mixers and distributed audio
- Broadcast and studio installation wiring termination
Technical Specifications
| Specification | Value |
|---|---|
| Channels | 32 |
| Front Connectors | 32 Euroblock terminals |
| Rear Connectors | 4 × D-Sub 25-pin |
| Direction | Bidirectional (input or output) |
| Depth (behind ears) | 45 mm |
| Weight | 0.9 kg (1.99 lbs) |
| Form Factor | 1U rack-mount (reversible ears) |
Frequently Asked Questions
- How many BO-32DE units are needed for the ML-32D?
- The ML-32D has 32 analog inputs and 32 analog outputs via 8 D-Sub connectors. Two BO-32DE units cover 32 inputs and two more cover 32 outputs, for a total of 4 units for full ML-32D I/O termination.
- Is the BO-32DE signal-processing free?
- Yes. The BO-32DE is a passive breakout adapter with no active circuitry — it simply terminates the physical connections without affecting the audio signal.
- Can the BO-32DE be used for both input and output on the same unit?
- No. The unit is passive and bidirectional in concept, but each installation should dedicate a BO-32DE to either input channels or output channels to avoid signal routing confusion. Use BO-16DX/IN and BO-16DX/OUT for XLR termination.
- What warranty applies to the BO-32DE?
- TASCAM products purchased through authorized dealers including Creation Networks carry TASCAM's standard limited warranty.
