Tascam BO-16DX/OUT – 16-Channel D-Sub to XLR Output Breakout Box
Product Overview

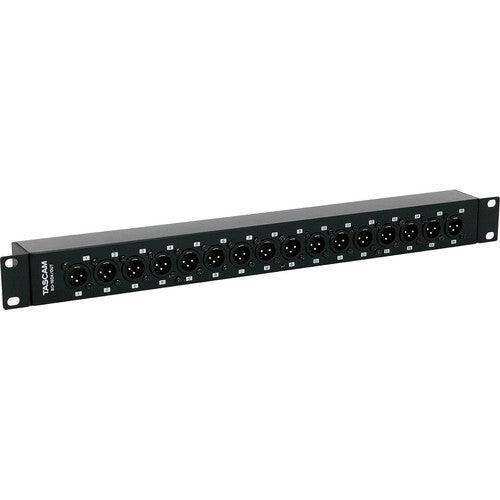

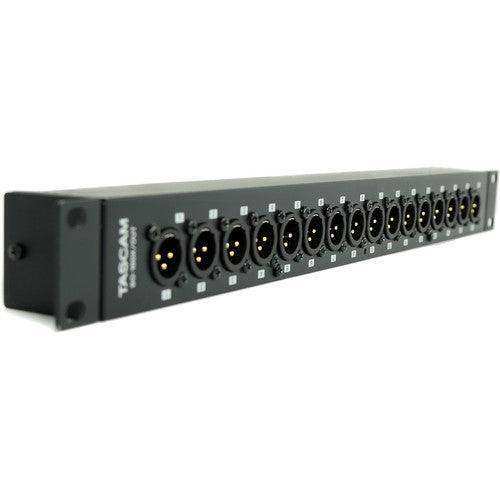

The TASCAM BO-16DX/OUT is a 1U rack-mount 16-channel D-Sub-to-XLR output breakout box, converting two D-Sub 25-pin input connectors on the rear to 16 XLR male output connectors on the front for direct XLR wiring from TASCAM ML-16D, ML-32D, DA-6400, and other professional audio devices with D-Sub 25-pin analog outputs. Two 180-degree mounting orientations accommodate different rack cable routing requirements.
Product Description
The BO-16DX/OUT provides a permanent rack-mounted XLR output patch point for D-Sub-equipped Dante converters, recorders, and analog processing equipment. It is the output-direction counterpart to the BO-16DX/IN: where the BO-16DX/IN accepts XLR sources and delivers them to D-Sub equipment, the BO-16DX/OUT accepts D-Sub signals and delivers them to XLR-wired amplifiers, consoles, processors, and speaker systems. Two 180-degree rack-mount orientations allow the XLR connectors to face either toward or away from the front of the rack, minimizing cable run distance. Approximately 13mm of clearance above each XLR connector enables access to locking XLR lever releases when units are stacked. The 45mm depth behind rack ears allows rear-of-rack and shallow-rack mounting. Rack ears are reversible and removable for tabletop use. Available at Creation Networks alongside the BO-16DX/IN, BO-32DE, ML-16D, and ML-32D.
Key Features
- 2 D-Sub 25-Pin Inputs to 16 XLR Male Outputs — Converts D-Sub analog outputs to XLR for standard wiring to consoles, amplifiers, and outboard gear.
- Two 180-Degree Mounting Orientations — Orient XLR connectors toward cable run for clean rack wiring.
- 13mm Clearance Above Each XLR — Stacking access for locking XLR connectors.
- 45mm Depth — Rear-of-rack and shallow rack mounting compatible.
- Reversible Rack Ears + Tabletop Use — Forward or backward mounting; ears removable for desktop.
Typical Applications
- ML-16D and ML-32D XLR analog output termination
- DA-6400 analog output breakout to console or amp
- Broadcast and studio D-Sub device XLR output patching
- Permanent installation analog output wiring termination
Technical Specifications
| Specification | Value |
|---|---|
| Channels | 16 |

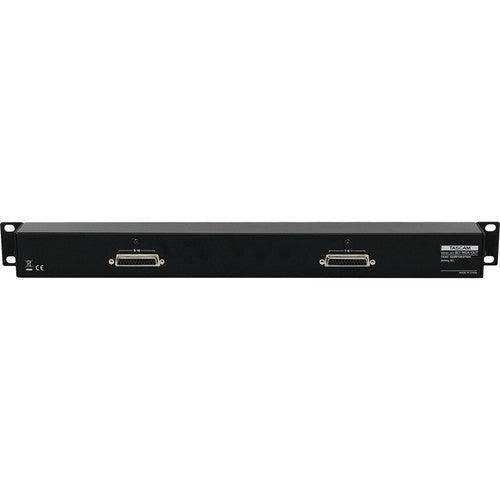

| Rear Connectors | 2 × D-Sub 25-pin female |
| Front Connectors | 16 × XLR male (output) |
| Depth (behind ears) | 45 mm (1.8") |
| Form Factor | 1U rack-mount (reversible/removable ears) |
Frequently Asked Questions
- What is the difference between BO-16DX/IN and BO-16DX/OUT?
- BO-16DX/IN accepts 16 XLR female sources (inputs from microphones and line sources) and connects to D-Sub equipment inputs. BO-16DX/OUT accepts D-Sub outputs from equipment and provides 16 XLR male connectors for delivery to consoles, amplifiers, and outboard gear.
- Is the BO-16DX/OUT passive?
- Yes. Both BO-16DX variants are passive breakout adapters with no active circuitry; they perform only physical connector conversion.
- What warranty applies to the BO-16DX/OUT?
- TASCAM products purchased through authorized dealers including Creation Networks carry TASCAM's standard limited warranty.
