Tascam BO-16DX/IN – 16-Channel XLR Input to D-Sub Breakout Box
Product Overview

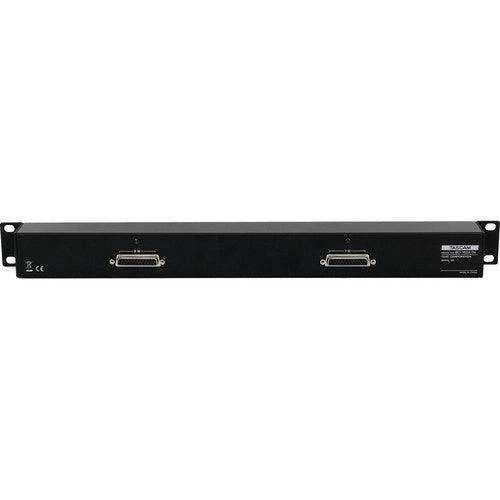

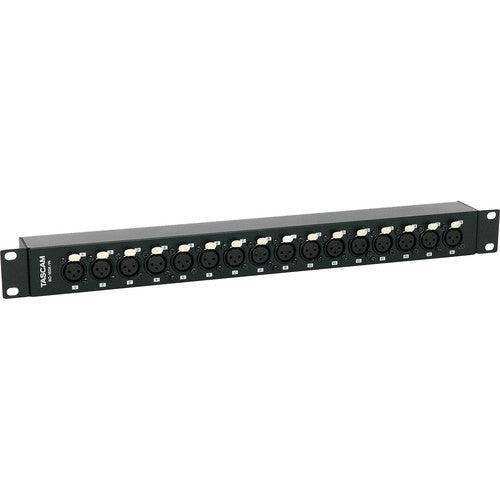

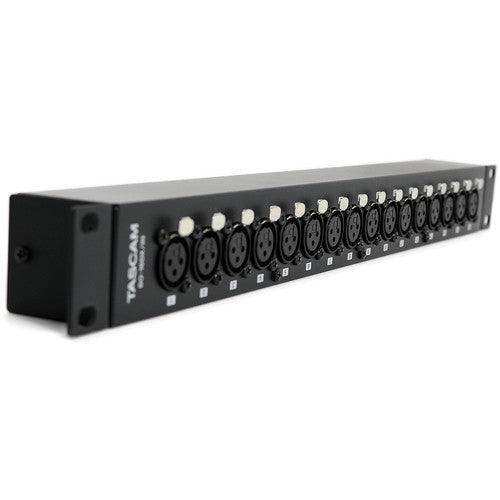

The TASCAM BO-16DX/IN is a 1U rack-mount 16-channel XLR-to-D-Sub breakout box designed for professional installation, converting 16 individual XLR female input connectors on the front panel to two D-Sub 25-pin male connectors on the rear for direct connection to TASCAM ML-16D, ML-32D, DA-6400, and other professional audio equipment using D-Sub analog I/O. Two 180-degree mounting orientations simplify rack cabling by avoiding unnecessary cable twist.
Product Description
The BO-16DX/IN provides a permanent rack-mounted XLR patch point for the D-Sub analog inputs of ML-series Dante converters, DA-6400 expansion cards, and any device that uses D-Sub 25-pin for 16 channels of balanced analog input. The two possible 180-degree rack-mount orientations allow the XLR connectors to face either the front or rear of the rack, minimizing cable run distance in various installation scenarios. Approximately 13mm of clearance above each XLR connector allows access to locking lever releases for secure connectors. The depth behind the rack ears is only 1.8 inches (45mm), enabling mounting in shallow rack spaces and rear-of-rack positions. Rack ears are removable for tabletop use. Available at Creation Networks alongside the BO-16DX/OUT, BO-32DE, ML-16D, and ML-32D.
Key Features
- 16 XLR Female Inputs to 2 D-Sub 25-Pin Connectors — Converts 16 balanced XLR sources to D-Sub format for ML-16D/ML-32D and DA-6400.
- Two 180-Degree Mounting Orientations — Minimizes cable twist by orienting XLR connectors toward the cable run direction.
- 13mm Clearance Above Each XLR — Allows access to locking lever XLR connectors when units are stacked.
- 45mm Depth — Mounts in shallow rear-of-rack positions.
- Reversible Rack Ears + Tabletop Use — Forward or backward rack mounting; ears removable for desktop.
Typical Applications
- ML-16D and ML-32D XLR analog input termination
- DA-6400 analog input breakout
- Broadcast and studio D-Sub device XLR input patching
- Permanent installation analog input wiring termination
Technical Specifications
| Specification | Value |
|---|---|
| Channels | 16 |
| Front Connectors | 16 × XLR female (input) |
| Rear Connectors | 2 × D-Sub 25-pin male |
| Depth (behind ears) | 45 mm (1.8") |
| Form Factor | 1U rack-mount (reversible/removable ears) |
Frequently Asked Questions
- Is the BO-16DX/IN for inputs or outputs?
- The BO-16DX/IN is the input variant: XLR female connectors accept microphone or line-level sources and deliver them to the D-Sub device. For outputs from D-Sub to XLR male, use the BO-16DX/OUT.
- How many BO-16DX/IN units does the ML-32D need for full input coverage?
- The ML-32D has 32 analog inputs across 4 D-Sub connectors. Two BO-16DX/IN units cover all 32 input channels.
- What warranty applies to the BO-16DX/IN?
- TASCAM products purchased through authorized dealers including Creation Networks carry TASCAM's standard limited warranty.
