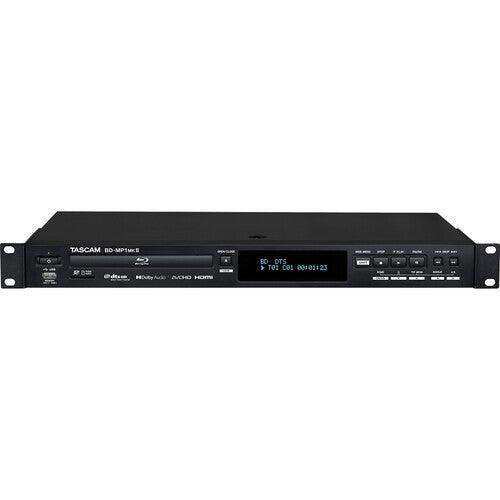

Tascam BD-MP1MK2 Blu-Ray and Media Player

Availability: Call for Availability
Availability: Direct Ship
Tascam SKU: BD-MP1MK2
No reviews
Price:
$499.00 $649.00

Description

The compact, 1-U rack mountable BD-MP1MKII supports a wide range of media formats via Blu-ray, DVD, and CD discs as well as playback of multiple video, still image, and audio formats from SD cards and USB memory—enabling users to incorporate a rich selection of content from a variety of sources. Supported media and file formats include Blue-ray, DVD, CD, Video, Image, and Audio. As an upgrade to the original BD-MP1, the BD-MP1MKII's SD card maximum capacity has been increased from SDHC (32GB) to SDXC (512GB) and as a result, can handle significantly more data.

Equally notable, the BD-MP1MKII's Power-on Play feature enables content to automatically begin playing immediately on power up, without having to engage the unit's Play feature. With Power-on Play active and Repeat Mode set to 'On,' content will automatically start, loop, and play continuously until the system power is turned off—making the BD-MP1MKII an exceptional choice for providing content without users having to constantly check on the unit. Further, the BD-MP1MKII provides a seamless Repeat function that can be defined by chapter, title, or A-B repetition.

Another notable BD-MP1MKII feature is the Hide Menu function, which facilitates customization of the display monitor's boot up process. With Hide Menu enabled, the monitor display screen can be set to display a black screen during start up rather than displaying the manufacturer's standard factory setup screen and source select menus. This feature prevents any unwanted visual distractions during system start-up.

  • Supports playback of various formats of Blu-ray, DVD, and CD discs
  • Supports playback of various video, still image, and audio formats from SD cards (SD/SDHC/SDXC up to 512G) and USB memory
  • Power on play function
  • Seamless repeat function: by chapter, title, or A-B repetition
  • Hide MENU function to display only the main contents on the screen
  • Lock functions: panel, IR, and tray lock
  • HDMI output that can pass through audio formats such as Dolby Atmos and DTS-HD to an AV amplifier
  • Dual XLR balanced and RCA unbalanced outputs
  • RCA 7.1ch audio outputs
  • External remote control via LAN or RS-232C
  • 1U rackmount size
Disc Media *SL indicates single-layer discs and DL indicates doublelayer discs
*This unit can play only BD and DVD-VIDEO that has the same region code as shown on the label on its chassis. It can also play DVD-VIDEO that is ALL.
Blu-ray BD25, BD50, BD-ROM, BD-R(SL,DL), BD-RE(SL,DL)
DVD DVD-ROM, DVD-R (SL, DL), DVD-RW, DVD+R (SL, DL), DVD+RW
CD CD-DA, CD-R, CD-RW
Disc formats *Blu-ray 3D supported
Blu-ray BDMV, BDAV
DVD DVD-Video, DVD-VR, AVCHD
File formats *USB flash drive and SD card formats must use FAT16,FAT32, exFAT or NTFS file systems.
Video ASF, MPG, AVI, 3GP, DAT, MKV, MOV, M2TS, OGM, TP, TS, MP4, WMV
Audio WAV, MP3, WMA, AAC, FLAC, APE
Picture JPEG, GIF, PNG
Supported subtitle file format .sub, .ass, idx+sub (.idx+.sub)
Audio
BD/DVD/USB/SD
Sampling frequency 44.1k/ 48k/ 64k/ 88.2k/ 96k/176.4k/ 192k Hz
Bit length 16/24 bit
CD
Sampling frequency 44.1k/48k Hz
Bit length 16/24bit
MP3/WMA
Sampling frequency 32k/44.1k/48k Hz
Bitrate
MP3 112k to 320k bps
WMA 48k to 192k bps
HDMI Output
Connector HDMI 19pin Type A
Resolution 480i/576i, 480p/576p, 720p, 1080i, 1080p
Aspect ratio 16:9 Full, 16:9 Normal, 4:3 Pan & Scan, 4:3 Letterbox
Video format NTSC, PAL, Multi
HDMI signal system RGB PC level, RGB Video level, YCbCr(4:4:4), YCbCr(4:2:2)
Digital Audio output
COAXIAL
Connector RCA pin jacks
Format IEC60958-3(S/PDIF)
Output impedance 75 Ω or lower

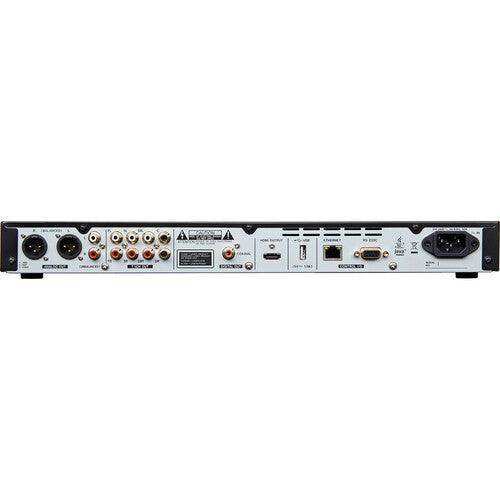

Analog audio outputs
Balanced
Connectors XLR-3-32(1 : GND, 2 : HOT, 3 : COLD) × 2 (Stereo)
Normal output level +4dBu (1.23 Vrms)
Maximum output level +20dBu (7.75 Vrms)
Output impedance 200Ω or lower
Unbalanced
Connector RCA pin jack × 1 pair
Normal output level -10dBV (0.316 Vrms)
Maximum output level +6dBV (2.0 Vrms)
Output impedance 210Ω or lower
7.1ch Audio outputs
Connector RCA x8 (FL/FR/SL/SR/SBL/SBR/C/SW)
Connector Color FL/SL/SBL: White
FR/SR/SBR: Red
C/SW: Black
Normal output level -10dBV (0.316 Vrms)
Maximum output level +6dBV (2.0 Vrms)
Output impedance 210Ω or lower
RS-232C
Connector D-sub 9pin
Format RS-232C compliant
ETHERNET
Connector RJ-45
Protocol 10BASE-T/100BASE-TX
Cable Category 5e or faster
USB
Connector USB type-A ×2 (front ×1, back ×1)
Protocol USB2.0 compliant
Rated supply voltage DC 5V, 1A
Mass storage class Less than 2 TB
File format FAT16/FAT32/exFAT/NTFS
USB device class Mass storage class
SD slot
Supported media SD (512 MB-2 GB), SDHC (4 GB-32 GB), SDXC (64GB - 512GB)
File format FAT16/FAT32/exFAT/NTFS
Power AC100 - 240V, 50 - 60Hz
Power consumption 30W
Dimensions 482.6(W) × 44(H) × 280.7(D) mm
Weight 2.64kg
Operating temperature range 5 to 35°C (41°F - 95°F)
Included items BD-MP1MKII × 1
Power cord × 1

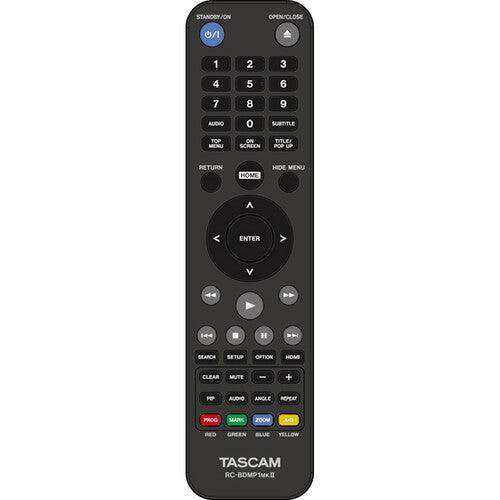

Wireless remote control (TASCAM RC-BDMP1MKII) × 1
AAA batteries × 2
Rackmount screw kit
- Rackmount ears (left and right) × 2
- Screws for ear attachment × 6
- Screws for attachment to rack × 4
- Washers (for rack) × 4
Owner's manual (including warranty) × 1
