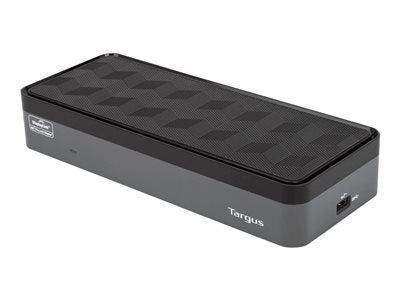

Targus USB-C Universal Quad 4k Docking Station w/100W PD - DOCK570USZ

Product Overview

The Targus DOCK570USZ USB-C Universal Quad 4K Docking Station delivers enterprise-class multi-display performance, supporting up to four simultaneous 4K UHD extended monitors via USB-C from virtually any compatible laptop. Designed for commercial deployments where maximum screen real estate is critical, this dock uses dual DisplayLink DL-6910 chip technology to drive four DisplayPort (3840×2160 at 60Hz) or four HDMI (3840×2160 at 50Hz) outputs through a single USB-C connection. With 100W Power Delivery and comprehensive port expansion including Gigabit Ethernet, USB 3.2 ports, and combo audio, it consolidates an entire workstation into one cable. The DOCK570USZ is the right choice for financial services, legal, healthcare, and executive environments where a four-monitor USB-C docking station for business laptops is a productivity requirement.

Product Description

The Targus DOCK570USZ is the world's first enterprise-class universal quad 4K docking station, setting the benchmark for organizations deploying four-monitor workstations at scale. Dual DisplayLink DL-6910 chips enable four DisplayPort or four HDMI outputs—or a combination—all running simultaneously at full 4K resolution. Thunderbolt 3 and USB-C Alt Mode hosts connect natively, and the included USB-C to USB-A adapter plus barrel tip charging set extends compatibility to legacy laptops from Acer, ASUS, Dell, HP, Lenovo, IBM, and Toshiba with up to 90W of power.

Port expansion goes well beyond video: four USB 3.2 Gen 1 Type-A ports (one fast-charging), one USB-C 3.2 Gen 1 port, Gigabit Ethernet, and a 3.5mm combo audio jack cover standard peripheral and network needs without an additional hub. The integrated Kensington-compatible lock slot protects the dock in open-office and shared-desk environments. A VESA mount bracket provision (bracket sold separately as ACX003GLZ) lets AV integrators and IT teams mount the dock directly behind a display, keeping desks clear and cable runs tidy. The rubberized base prevents movement on glass or laminate surfaces. A 3-year limited warranty backs enterprise procurement requirements, and the dock's USB-C universal quad 4K design ensures compatibility across virtually any current or future USB-C laptop regardless of brand or OS.

Key Features

• Quad 4K Display Output — Supports four simultaneous 4K UHD monitors via four DisplayPort (3840×2160 at 60Hz) or four HDMI (3840×2160 at 50Hz) outputs, or a mix of both.
• Dual DisplayLink DL-6910 Chipset — Enterprise-grade dual-chip architecture delivers stable, hardware-accelerated multi-display output without compromising bandwidth for other ports.
• 100W USB-C Power Delivery — Charges compatible hosts at up to 100W via USB-C PD 2.0; supports legacy laptops at up to 90W through included barrel tip adapters.
• Universal Host Compatibility — Works with USB-C Alt Mode, Thunderbolt 3, and USB-C to USB-A adapter for legacy laptops across all major brands and operating systems.
• Comprehensive Port Expansion — Adds four USB 3.2 Gen 1 Type-A ports (one fast-charging), one USB-C 3.2 Gen 1 port, Gigabit Ethernet, and 3.5mm combo audio.
• Integrated Security Lock Slot — Accepts standard Kensington-compatible locks to secure the dock in shared or open-plan office environments.
• VESA Mount Bracket Provision — Designed for behind-display mounting using the Targus VESA Mount Bracket (ACX003GLZ, sold separately) to eliminate desk clutter.
• Legacy Laptop Charging Tips Included — Ships with charging tips for Acer, ASUS, Dell, HP, IBM/Lenovo, and Toshiba laptops, plus a USB-C to USB-A host adapter.
• 3-Year Limited Warranty — Enterprise-ready coverage that satisfies standard commercial procurement warranty requirements.

Typical Applications

• Boardroom and executive workstations requiring four simultaneous 4K display outputs
• Financial services trading desks and analytics workstations
• Healthcare clinical workstations with multi-screen EMR and imaging workflows
• Corporate conference rooms with presentation and collaboration displays
• Government and legal offices requiring extended multi-display data environments
• IT-managed hot-desk and hoteling deployments across enterprise campuses

Technical Specifications

Frequently Asked Questions

Does the DOCK570USZ require driver installation?
Yes. Because the dock uses DisplayLink technology to drive four 4K displays, the DisplayLink driver must be installed on the host laptop. Targus and DisplayLink provide the driver for Windows, macOS, and Ubuntu. IT administrators can deploy the driver via standard software management tools.

Is the DOCK570USZ compatible with Thunderbolt 3 and Thunderbolt 4 laptops?
Yes. The dock is compatible with any host that supports USB-C Alt Mode, including Thunderbolt 3 and Thunderbolt 4 ports. It also works with standard USB-C ports using DisplayLink software.

What operating systems are supported?
The DOCK570USZ supports Windows, macOS, and Ubuntu via DisplayLink drivers. ChromeOS support is limited and should be verified against the DisplayLink compatibility list before deployment.

Can it charge a laptop at full 100W while driving four 4K monitors?
Yes. USB-C Power Delivery 2.0 delivers up to 100W to the connected host simultaneously while driving all four displays and powering connected peripherals. Legacy laptops using included barrel tips receive up to 90W.

Does the dock support a mix of DisplayPort and HDMI monitors?
Yes. You can connect a combination of DisplayPort and HDMI monitors across the eight video ports (four DP, four HDMI) up to four total simultaneous displays.

What is the warranty and how is it supported?
The DOCK570USZ carries a 3-year limited warranty. Targus provides direct enterprise support; organizations with volume purchases should contact Targus Business Solutions for dedicated support channels.

Can the dock be mounted behind a monitor?
Yes. The dock includes a VESA bracket provision compatible with the Targus ACX003GLZ VESA Mount Bracket (sold separately), allowing clean behind-display installation ideal for commercial deployments.
