Tannoy Wood Back Can Kit for PCI 7DC RB Ceiling Loudspeakers - TA-PCI 7DC RB BC
Tannoy Wood Back Can Kit for PCI 7DC RB Ceiling Loudspeakers - TA-PCI 7DC RB BC is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Tannoy Wood Back Can Kit for PCI 7DC RB Ceiling Loudspeakers - TA-P...
Product Overview
This is the Tannoy wood back can kit for PCI 7DC RB ceiling loudspeakers, an acoustically enhanced pre-installation enclosure for newly constructed, non-suspended ceilings. It lets integrators fix the loudspeaker position during the construction phase, reducing first-fix labor and improving sound isolation between adjoining rooms. Two side-mounted cable glands handle input and link-output wiring for distributed ceiling speaker systems.
Product Description

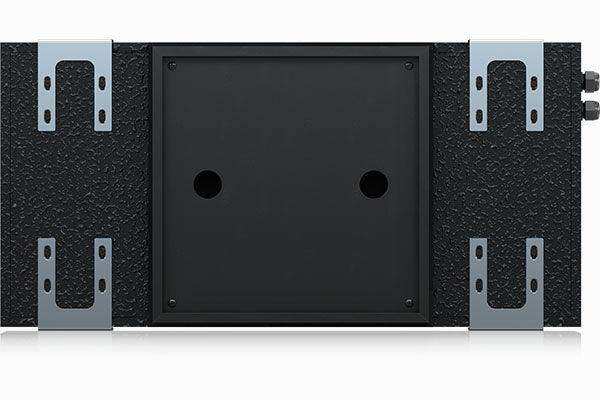

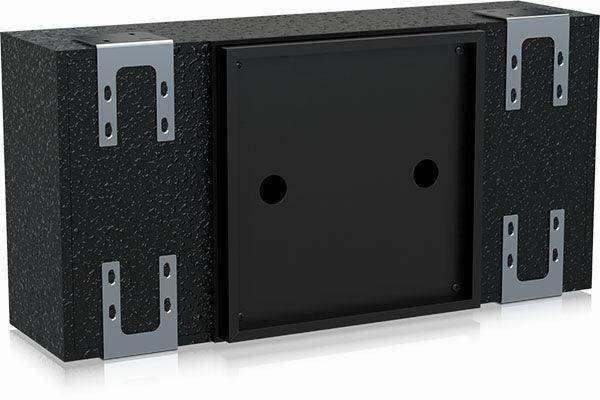

The PCI 7DC RB back can is a wood enclosure designed for pre-installation of PCI 7DC RB loudspeakers ahead of ceiling completion. Installing the low-profile back can early secures the optimum loudspeaker position and working space, which significantly reduces the time required for project finalisation on the return visit. The enclosure also improves sound insulation to adjoining rooms, a useful benefit in multi-tenant and partitioned commercial fit-outs. Two cable glands mounted on the side of the back can are provided for input and link output. The kit includes a positioning aid, place-holder rings, the back can, and a cabling tube, along with a grille, paint mask, tool kit, and the fixings needed to complete the installation. This accessory is intended to be specified alongside PCI 7DC RB ceiling loudspeakers. Browse the full Tannoy collection for compatible loudspeakers and additional installation accessories.
Key Features
- Pre-installation enclosure — The kit lets installers fix the loudspeaker position during construction before the ceiling is finished.
- Improved sound insulation — The acoustically enhanced enclosure reduces sound transfer to adjoining rooms.
- Labor-saving design — Early back can installation cuts the time needed for project finalisation on the second-fix visit.
- Side cable glands — Two glands provide tidy input and link-output cable entry.
- Complete installation kit — Includes positioning aid, place-holder rings, back can, cabling tube, grille, paint mask, tool kit, and fixings.
Typical Applications
- Conference room
- Commercial meeting space
- Multi-purpose room
- Training room
Technical Specifications
| Enclosure | Wood, with spray painting |
| Baffle | Reflex loaded UL94 V-0 rated ABS |
| Grille | Steel, with weather resistant coating |
| Connectors | Replacement plug housing |
| Dimensions (H x W x D) | 350 x 350 x 160 mm (13.8 x 13.8 x 6.3") |
| Bezel dimensions | 350 x 350 mm (13.8" x 13.8") |
| Mounting depth | 152 mm (6.0") |
| Hole cutout dimensions | 332 x 332 mm (13.1" x 13.1") |
| Net weight | 3.8 kg (8.4 lbs) |
| Included accessories | Grille, paint mask, tool kit, washers, screws, plain washers |
| Packed quantity | 1 |
Frequently Asked Questions
Which loudspeaker is this back can for?
It is designed specifically for the Tannoy PCI 7DC RB ceiling loudspeakers.
When should the back can be installed?
It is intended for pre-installation during construction, before a newly built non-suspended ceiling is finished.
What is included in the kit?
The kit includes a positioning aid, place-holder rings, the back can, cabling tube, grille, paint mask, tool kit, and fixings.
How is wiring routed into the enclosure?
Two cable glands on the side of the back can provide input and link-output cable entry.
Where can I get installation support?
Contact Creation Networks for compatibility guidance and a project quote.
