Tannoy Wood Back Can Kit for PCI 7DC IW In-Wall Loudspeakers - TA-PCI 7DC IW BC

Tannoy SKU: TA-PCI 7DC IW BC
No reviews
Price:
$539.00

Description

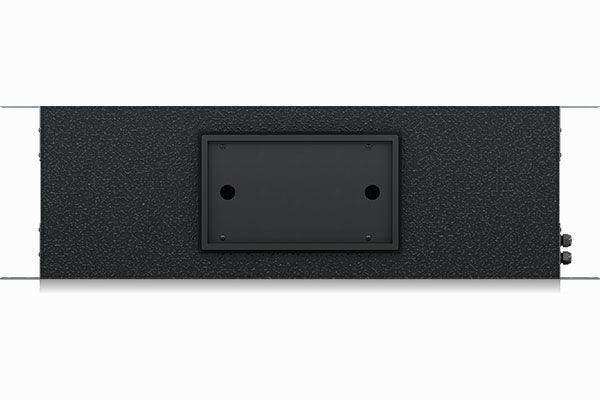

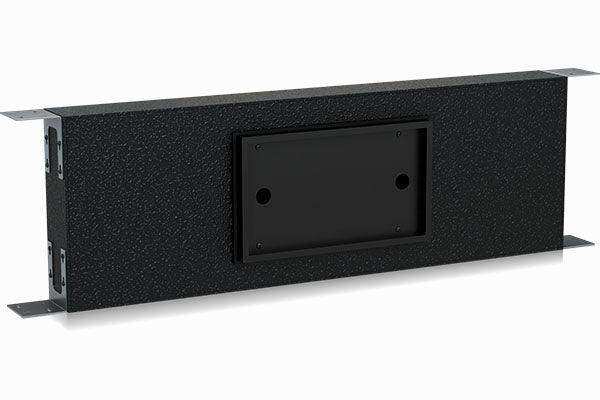

The PCI 7DC IW Back Can is an acoustically enhanced wood back can designed for the pre-installation of PCI 7DC IW wall-mount loudspeakers. Early installation of the low profile back can is fast and simple and significantly reduces the amount of time required for project finalisation. Two cable glands mounted on the side of the back can are provided for input and link output.



  • Wood backcan installation kit for PCI 7DC IW in-wall loudspeakers

  • Secures optimum position and working space of the loudspeaker during construction pre-installation

  • Improves sound insulation to adjoining rooms

  • Includes positioning aid, place-holder rings, back can, cabling tube

  • Tannoy - Over 90 years of British sound heritage and innovation



Performance
Frequencyresponse ( ± 3dB)

50 Hz – 20 kHz
Frequencyresponse(-10dB)

30 Hz – 20 kHz
Sensitivity(1 W @ 1m)

86dB
Directivityfactor (Q)

4.4averaged 1 kHz to10 kHz
Directivityindex(D I)

6.4averaged 1 kHz to10 kHz
Power handling (I EC)
Average

80 W
Programme

160 W
Peak

320 W
Recommendedamp lifierpower

240 W @ 8 Ω
Nominal Impedance(LoZ)

8 Ω
Rated maximum SPL(1 m,LoZ)

108dB
Average

105dB
Peak

111dB
Crossoverpoint

1.6 k H z
Coverage angles
500 Hz

180° horizontal ,152° vertical
1 kHz

132° horizontal ,136° vertical
2 kHz

118° horizontal ,130° vertical
Transducers
Low frequency diameter/material/type

201 mm ( 7")
High frequency diameter/material/type

25.4 mm (1")
Physical
Back can

Wood, with spraypainting
Baffle

Reflex loaded UL94 V-0rated ABS
Grille

Steel ,with weather resistant coating
Stee l , with weather resistant coating
Safety features

---
Clamping design

---
Connectors

Replacement Plug Housing
Dimensions ( HxWxD)

1202 x347 x128 mm (4 7.3 x13.7 x5.0")
Bezel dimensions

410 x248 mm(16.1 x9.8")
Mounting depth

101 mm (4.0")
Hole cutout dimensions

395x231 mm (15.6x9.1")
Net weight

13.5kg(29.8 lbs)
Packed quantity

1
Included accessories

Grille,paint mask, tool kit, screws (x4), spring washers (x4), plain washer (x4)
Optional accessories

BACK CAN PCI 7DC IW
