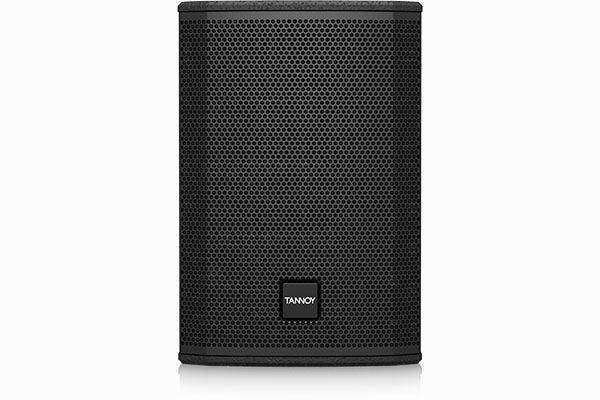

Tannoy VXP 6-UL 6" Dual Concentric Powered Sound Reinforcement Loudspeaker (Pair,Black) - TA-VXP6-BK

Product Overview

Sold as a pair, the Tannoy VXP 6 is a 6-inch powered Dual Concentric sound reinforcement loudspeaker with integrated Lab Gruppen IDEEA Class-D amplification, built for both portable and installed AV applications. Its point-source Dual Concentric driver delivers phase-coherent, high-intelligibility speech and natural vocal reproduction for conference rooms, performance spaces and background music systems. Compact and capable, the VXP 6 serves as front-of-house, floor monitor, delay or stage front-fill in small-scale sound reinforcement designs.

Product Description

The VXP 6 centers on a 150 mm (6-inch) constant-directivity Dual Concentric driver that places the high-frequency source at the acoustic center of the low-frequency cone, producing point-source phase coherence and a tightly controlled 90-degree conical dispersion pattern. This makes coverage predictable and forward projection consistent, an advantage when designing intelligible speech systems for smaller meeting spaces and performance venues. Onboard Lab Gruppen IDEEA Class-D amplification provides up to 1,600 watts with output current limiting, clip limiting, brownout recovery and thermal protection for reliable operation. A switchable full-range or high-pass filter mode lets the speaker run standalone or alongside a subwoofer, while manual or auto power modes simplify installed-system control. Connectivity includes a balanced XLR input and XLR link output plus a Neutrik powerCON locking mains connector. The vented, internally braced 12 mm plywood enclosure includes an M6 pole-mount socket for small-scale portable PA and M6 yoke inserts for bracket mounting. A white finish is also available as the Tannoy VXP 6-WH. Explore the full Tannoy collection at Creation Networks. The VXP 6 is designed in the U.K. and backed by Tannoy's 10-Year Warranty Program.

Key Features

• 6-inch Dual Concentric Driver — The point-source 150 mm driver delivers phase-coherent sound with natural vocal reproduction for high-intelligibility speech.
• Integrated Lab Gruppen Class-D Amplification — Onboard IDEEA electronics provide up to 1,600 watts, eliminating the need for external amplifier channels.
• Controlled 90-Degree Dispersion — A constant-directivity pattern gives predictable coverage and forward projection for monitors, fills and delays.
• Switchable Filter and Power Modes — Full-range or high-pass operation and manual or auto power modes adapt the speaker to standalone or subwoofer-paired systems.
• Comprehensive Amplifier Protection — Output current limiting, clip limiting, brownout recovery and thermal protection support reliable continuous operation.

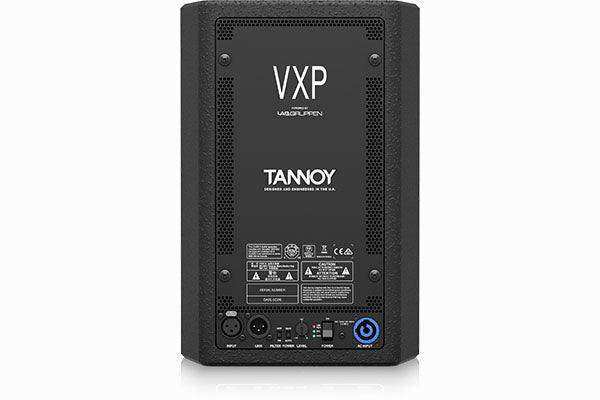

• Balanced Connectivity — XLR input and link output plus a Neutrik powerCON locking mains connector simplify signal distribution and secure power.
• Flexible Mounting — An M6 pole-mount socket and M6 yoke inserts support portable PA and bracketed installation.
• 10-Year Warranty Program — Designed and engineered in the U.K. and backed by Tannoy's extended warranty for installed-system confidence.

Typical Applications

• Conference room
• Huddle room
• Multi-purpose room
• House of worship
• Broadcast studio

Technical Specifications

Frequently Asked Questions

Is the VXP 6 a powered speaker?
Yes. It includes integrated Lab Gruppen IDEEA Class-D amplification rated up to 1,600 watts, so no external amplifier is required. It is sold as a pair.

Can I use it with a subwoofer?
Yes. A switchable high-pass filter mode lets you roll off low frequencies and route them to a subwoofer, while full-range mode runs the speaker standalone.

How is it connected and powered?
Each cabinet has a balanced XLR input and XLR link output for daisy-chaining signal, plus a Neutrik powerCON locking connector for secure mains power across 100-240 V.

What mounting options are available?
The cabinet provides an M6 pole-mount socket for portable PA and M6 yoke bracket inserts plus a VTH pole-mount blanking plate for installed bracket mounting.

What warranty and support apply?
The VXP 6 is designed in the U.K. and covered by Tannoy's 10-Year Warranty Program. Creation Networks offers system design and post-sale technical support for your AV integration.
