Sold as a pair, The VXP 6-WH may be one of the smaller Dual Concentric full range loudspeakers in the VXP range, but it boasts an exceptional performance-to-size ratio – plus includes LAB GRUPPEN IDEEA Class-D amplification. VXP 6-WH provides a compact, yet punchy and sonically articulate solution for small-scale performance sound reinforcement, as well as more demanding background music and high-intelligibility speech applications where clarity and natural vocal reproduction are paramount. Thanks to its twin driver design and flexible mounting options, the VXP 6-WH is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed and portable applications.
Features
-
Full range multi-purpose powered sound reinforcement loudspeaker for portable and installation applications
-
1,600 Watt power featuring Lab Gruppen IDEEA electronics Class-D amplification
-
6" Dual Concentric full range driver for point source phase coherence
-
Tightly controlled 90° dispersion for optimum coverage and forward projection
-
Ideal for FOH, floor monitor, delay and stage front fill applications
-
Switchable full range or high pass filter operation
-
Vented and internally braced plywood enclosure
-
Finished with hard wearing semi matt white paint
-
Rugged powder coated perforated steel mesh grille
-
M6 pole mount socket for small-scale portable PA
-
Optional horizontal mounting yokes (available separately)
-
Fully balanced input and link output on Neutrik* XLR connectors
-
Neutrik powerCON* for a secure locking mains power connection
-
10-Year Warranty Program*
-
Designed and engineered in the U.K.
Data Sheet
System
| Frequency response (Full range mode) |
88 Hz - 35 kHz ±3 dB80 Hz - 45 kHz -10 dB
|
| Frequency response (Hi-pass mode) |
120 Hz - 35 kHz ±3 dB100 Hz - 45 kHz -10 dB
|
| Nominal dispersion |
90° conical @ -6dB point
|
| Directivity factor (Q) |
5.6
|
| Directivity index (DI) |
7
|
| Dynamic range |
106 dB
|
| Maximum SPL |
123 dB peak
|
| Crossover type |
Passive 1.6 kHz with dynamic HF protection
|
| Transducers |
150 mm (1 x 6") constant directivityDual Concentric™
|
Amplifier
| Maximum output power* |
1600 W
|
| Type |
Class-D
|
| Protection |
Output current limiter, clip limiter, brownout protection and recovery, thermal
|

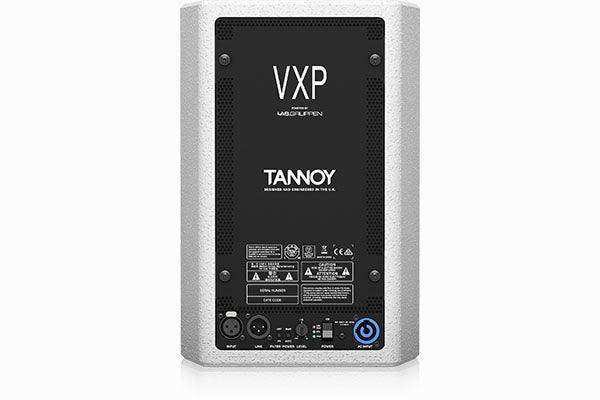

Connectors
| Input |
1 x XLR, balanced
|
| Input impedance |
10 kΩ unbalanced,20 kΩ balanced
|
| Maximum input level for clip |
+4.5 dBu (hard clip at+14.5 dBu input signal)
|
| Link |
1 x XLR
|
| Mains Supply |
Neutrik powerCON 20A†
|
Controls
| Level |
Recessed potentiometer
|
| Filter |
Hi-pass (HPF)/ full range (FR), switchable
|
| Power mode |
Manual (MAN)/ auto (AUTO), switchable
|
Power Supply
| Type |
Switch-mode autorange power supply
|
| Mains voltage |
100-240 V~, 50/60 Hz
|
| Power consumption |
60 W @ 1⁄8 max power
|
Enclosure
| Dimensions (HWD) |
334 x 226 x 216 mm (13.1 x 8.9 x 8.5")
|
| Net weight |
7.2 kg (15.9 lbs)
|
| Construction |
12 mm (½ ") plywood,vented and internally braced
|
| Finish |
Semi matt black paint (white optional)
|
| Grille |
Powder coated perforated steel
|
| Flying hardware |
2 x M6 yoke bracket insertsBlanking plate for optional VTH pole mount
|
