Tannoy VX 8M 8" Dual Concentric Full Range Loudspeaker (Pair,Black) - TA-VX8M-BK

Product Overview

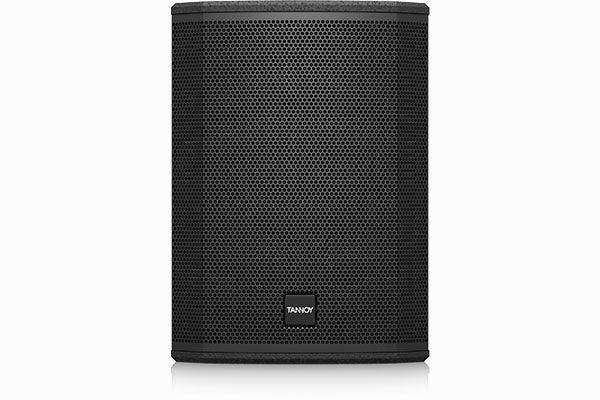

The Tannoy VX 8M 8-inch dual concentric full-range loudspeaker, sold as a pair, is a compact, versatile cabinet for small-to-medium scale sound reinforcement in commercial AV and live applications. Its 8-inch Dual Concentric point-source driver delivers phase-coherent coverage with a controlled 90-degree dispersion for optimum coverage and forward gain. Dual 60-degree and 40-degree wedge angles let it double as a stage floor monitor, while a 35 mm pole socket aids portable deployment. This black-finish model suits both fixed installation and mobile production rigs.

Product Description

The VX 8M is a full-range Dual Concentric loudspeaker providing a compact, punchy, and sonically vibrant solution for small-to-medium scale performance sound reinforcement. With a controlled 90-degree dispersion for optimum coverage and forward gain, it is a powerful and versatile performer across a wide range of applications. The 8-inch Dual Concentric driver delivers point-source phase coherence and natural vocal reproduction, making it equally effective for speech-led commercial AV duties and live program material.

Its distinguishing feature is the dual 60-degree and 40-degree wedge angles, which allow the cabinet to be deployed as a stage floor monitor in addition to standard front-of-house and side-fill roles. A 35 mm pole-mount socket supports quick portable setups, and a passive crossover with dynamic high-frequency protection guards the driver under demanding use. Connectivity is handled by Neutrik speakON NL4 connectors for input and link output, simplifying daisy-chained installs. The vented, internally braced plywood enclosure, powder-coated perforated steel grille, and M10 mounting inserts provide commercial-grade durability. Browse the full Tannoy collection at Creation Networks, or compare it with the install-focused Tannoy VX 8-WH.

Key Features

• 8-inch Dual Concentric Driver — A point-source Dual Concentric driver delivers phase-coherent, full-range output with natural vocal clarity.
• Dual Monitor Wedge Angles — 60-degree and 40-degree wedge angles let the cabinet serve as a stage floor monitor as well as a fill loudspeaker.
• Controlled 90-Degree Dispersion — Conical dispersion provides even coverage and forward gain for predictable system design.
• Dynamic HF Protection — The passive crossover incorporates dynamic high-frequency protection to safeguard the driver under demanding use.
• Portable-Ready — A 35 mm pole-mount socket and integrated Integrip handle support fast portable setup and transport.
• Flexible Mounting — M10 flying and yoke bracket inserts, M6 inserts, and a blanking plate for optional VTH pole mount support varied installations.

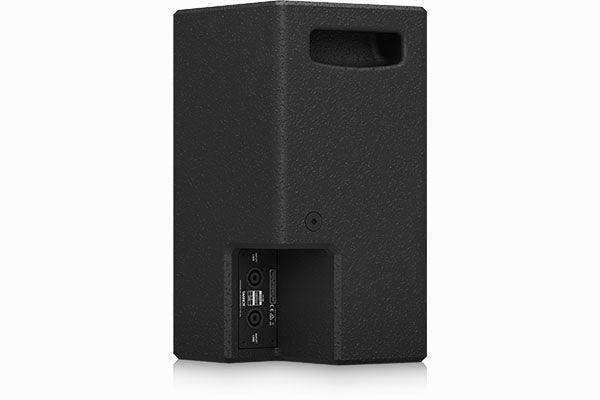

• Professional Connectivity — Neutrik speakON NL4 connectors handle input and link output for straightforward installation wiring.
• 10-Year Warranty Program — Backed by Tannoy's warranty program.

Typical Applications

• Multi-purpose room
• Commercial meeting space
• House of worship
• Auditorium

Technical Specifications

Frequently Asked Questions

Can the VX 8M be used as a stage monitor?
Yes. Dual 60-degree and 40-degree wedge angles allow it to be laid on its side as a floor monitor in addition to standard front-of-house and side-fill roles.

What amplifier load and wiring does it require?
It presents an 8-ohm load and connects via Neutrik speakON NL4 connectors for input and link output, supporting daisy-chained installation wiring.

Does it protect the high-frequency driver?
Yes. The passive crossover includes dynamic high-frequency protection to guard the driver during demanding program material.

How is it mounted for portable use?
It includes a 35 mm pole-mount socket, M10 flying and yoke bracket inserts, M6 inserts, and a blanking plate for an optional VTH pole mount, with a horizontal yoke available separately.

What warranty and support are included?
The pair is covered by Tannoy's 10-Year Warranty Program. Contact Creation Networks for system design assistance and project pricing.
