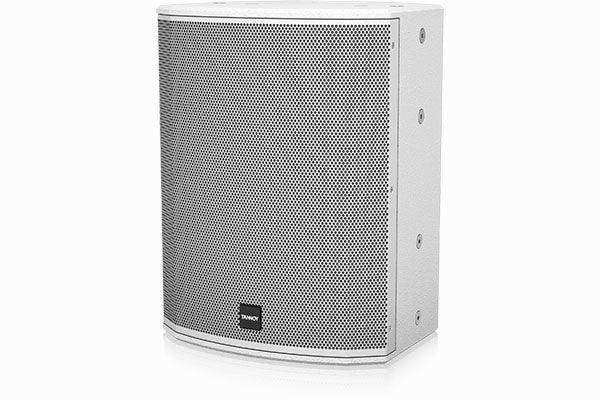

Tannoy VX 12-WH Dual Concentric Full Range Loudspeaker (White) - TA-VX12-WH

Availability: Call for Availability
Availability: Direct Ship
Tannoy SKU: TA-VX12-WH
No reviews
Price:
$859.00

Description

The VX 12-WH Dual Concentric Full Range Loudspeaker boasts an exceptional performance-to-size ratio. VX 12-WH provides a compact, yet punchy and sonically articulate solution for small-scale performance sound reinforcement, as well as more demanding background music and high-intelligibility speech applications where clarity and natural vocal reproduction are paramount. Thanks to its twin driver design and flexible mounting options, the VX 12-WH is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed and portable applications.


Features

  • Full range multi-purpose sound reinforcement loudspeaker for portable and installation applications

  • 200 Watts continuous, 800 Watts peak power

  • 12" Dual Concentric full range driver for point source phase coherence

  • Precise 90° dispersion for optimum coverage and forward projection

  • Ideal for FOH, floor monitor and side fill applications

  • Vented and internally braced plywood enclosure

  • Finished with hard wearing semi matt white paint

  • Rugged powder coated perforated steel mesh grille

  • Blanking plate for optional VTH pole mount

  • Optional horizontal and vertical mounting yokes (available separately)

  • Integrip handles ergonomically integrated into top and bottom of cabinet

  • Neutrik* speakON NL4 and barrier strip connectors for input and link output

  • 10-Year Warranty Program*

  • Designed and engineered in the U.K.
System
Frequency response

70 Hz - 25 kHz ±3 dB
55 Hz - 38 kHz -10 dB
Nominal dispersion

90° conical @ -6 dB point
Directivity factor (Q)

9.6
Directivity index (DI)

9.8
Power handling (IEC)
Passive

200 W continuous, 800 W peak
Bi-amp

—
Sensitivity

97 dB (1 W @ 1 m)
Maximum SPL
Passive

120 dB continuous, 126 dB peak
Bi-amp

—
Impedance
Passive

8 Ω
Bi-amp

—
Crossover Type

Passive with HF protection
Components

1 x 12" (305 mm) constant directivityDual Concentric
Enclosure

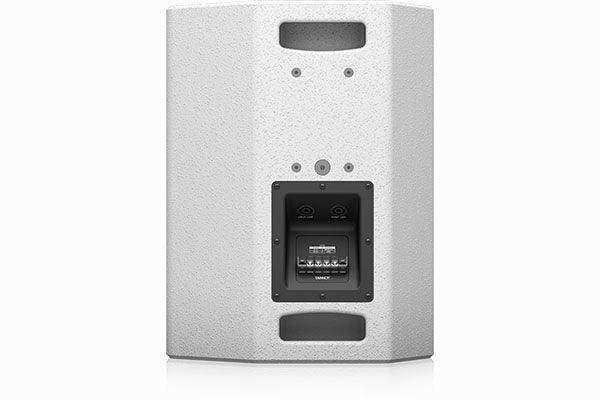

Connectors

2x Neutrik speakON* NL4
1 x barrier strip terminals
Wiring
Passive

Pins 1+ / 1- Input, Pins 2+ / 2- Link
Bi-Amp

—
Dimensions H x W x D

487 x 371  x 361 mm
(19.2  x 14.6 x 14.2")
Net weight

16.5 kg (36.3 lbs)
Construction

15 mm (5/8") enclosure / 18 mm (3/4")
front, plywood, vented and
internally braced
Finish

Semi matt black paint (white optional)
Grille

Powder coated perforated steel
Flying hardware

M10 x 8 flying inserts
(portrait or landscape mounting)
M10 x 8 yoke bracket inserts
2 x Intergrip carrying handles
Blanking plate for optional VTH pole mount
Compatible with industry standard brackets
M6 x 4 inserts
