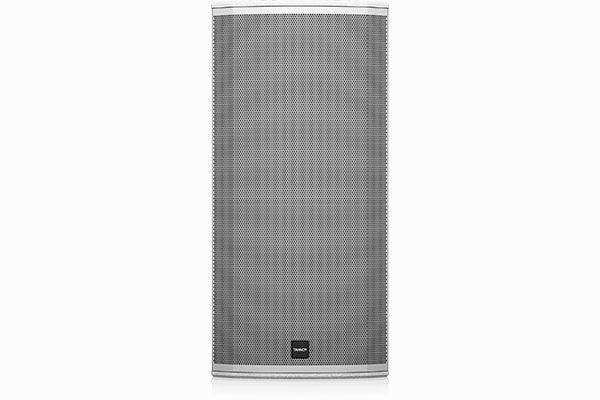

Tannoy VX 12.2Q-WH PowerDual Full Range Loudspeaker (White) - TA-VX12.2Q-WH
Tannoy VX 12.2Q-WH PowerDual Full Range Loudspeaker (White) - TA-VX12.2Q-WH is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Tannoy VX 12.2Q-WH PowerDual Full Range Loudspeaker (White) - TA-VX...
Product Overview
The Tannoy VX 12.2Q-WH 12-inch PowerDual full-range loudspeaker is a compact, high-output cabinet built for small-to-medium scale sound reinforcement, background music, and high-intelligibility speech in commercial AV installations. Its twin 12-inch driver design pairs a point-source PowerDual with a dedicated low-frequency driver to deliver punchy, articulate coverage from a single enclosure. With switchable passive or bi-amp operation and flexible mounting, it suits both fixed installation systems and portable production rigs. This white-finish model integrates discreetly into architectural spaces while maintaining commercial-grade durability.
Product Description
The VX 12.2Q-WH delivers an exceptional performance-to-size ratio, providing a sonically articulate solution where clarity and natural vocal reproduction are paramount. The 12-inch PowerDual full-range driver provides point-source phase coherence, while a second 12-inch low-frequency driver extends bass response for full-bandwidth music playback. A Q-Centric waveguide tightens the 75-degree horizontal by 40-degree vertical dispersion pattern, supporting predictable system design and even audience coverage. Symmetrical mounting allows vertical or horizontal orientation of single cabinets or multi-cabinet arrays without compromising sound quality.
The loudspeaker is well suited to front-of-house, floor monitor, and side-fill duties, and works equally well as a fill component complementing larger installed systems. Configurable bi-amp operation gives system designers added headroom and processing flexibility. Connectivity is handled by Neutrik speakON NL4 connectors plus a barrier strip for input and link output, simplifying daisy-chained installs. The vented, internally braced plywood enclosure and powder-coated perforated steel grille are engineered for demanding commercial environments. Explore the full Tannoy collection at Creation Networks, or compare it with the larger Tannoy VX 15Q for higher-SPL applications.
Key Features
- Twin 12-inch Driver Design — A 12-inch PowerDual full-range driver and a dedicated 12-inch low-frequency driver combine for point-source coherence with extended bass response.
- Q-Centric Waveguide — The waveguide provides a controlled 75-degree by 40-degree dispersion pattern for optimized coverage and forward projection.
- Passive or Bi-Amp Operation — A switchable crossover lets integrators run the cabinet passively or in bi-amp mode for greater system headroom.
- High Output — Rated at 500 W continuous and 2,000 W peak with 99 dB sensitivity, it produces up to 126 dB continuous SPL.
- Flexible Mounting — M10 flying inserts, yoke bracket points, and a blanking plate for optional VTH pole mount support portrait or landscape deployment.
- Professional Connectivity — Two Neutrik speakON NL4 connectors and a barrier strip handle input and link output for straightforward installation wiring.
- Commercial-Grade Build — A vented, internally braced plywood enclosure with a powder-coated perforated steel grille withstands continuous-duty use.
- 10-Year Warranty Program — Backed by Tannoy's warranty program and engineered in the U.K.
Typical Applications
- House of worship
- Auditorium
- Multi-purpose room
- Commercial meeting space
Technical Specifications
| Frequency response | 70 Hz - 25 kHz ±3 dB; 55 Hz - 30 kHz -10 dB |
| Nominal dispersion | 75° H x 40° V @ -6 dB points |
| Directivity factor (Q) | 13 |
| Directivity index (DI) | 11.1 |
| Power handling (passive) | 500 W continuous, 2,000 W peak |
| Power handling (bi-amp) | LF: 350 W continuous, 1,400 W peak; MF/HF: 350 W continuous, 1,400 W peak |
| Sensitivity | 99 dB (1 W @ 1 m) |
| Maximum SPL (passive) | 126 dB continuous, 132 dB peak |
| Maximum SPL (bi-amp) | LF: 123 dB continuous, 129 dB peak; HF: 127 dB continuous, 133 dB peak |
| Impedance | 8 Ω (passive); 8 Ω / 8 Ω (bi-amp) |
| Crossover type | Passive / Bi-amp switchable |
| Components | 1 x 12" (305 mm) constant directivity PowerDual with Q-Centric waveguide; 1 x 12" (305 mm) LF driver |

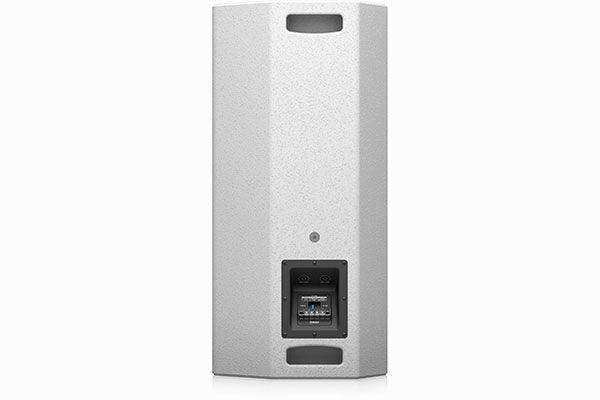

| Connectors | 2 x Neutrik speakON NL4; 1 x barrier strip terminals |
| Dimensions (H x W x D) | 781 x 371 x 361 mm (30.7 x 14.6 x 14.2") |
| Net weight | 30.5 kg (67.2 lbs) |
| Construction | 15 mm (5/8") enclosure / 18 mm (3/4") front, plywood, vented and internally braced |
| Finish | Semi matt white paint |
| Grille | Powder coated perforated steel |
Frequently Asked Questions
Can the VX 12.2Q-WH be driven in bi-amp mode?
Yes. The crossover is switchable between passive and bi-amp operation, allowing system designers to run separate amplifier channels for the low-frequency and mid/high sections for added headroom.
What amplifier and wiring does it require?
It presents an 8-ohm load in both passive and bi-amp modes, with input and link output via two Neutrik speakON NL4 connectors and a barrier strip for daisy-chained installation wiring.
Can it be flown or pole-mounted?
Yes. It includes M10 flying inserts for portrait or landscape mounting, yoke bracket inserts, and a blanking plate for an optional VTH pole mount, with horizontal and vertical yokes available separately.
Is it suitable for both installed and portable use?
Yes. Integrip carrying handles and flexible mounting make it equally suited to fixed AV installations and portable production systems, including use as a fill for larger arrays.
What warranty and support are included?
The loudspeaker is covered by Tannoy's 10-Year Warranty Program. Contact Creation Networks for system design assistance and project pricing.
