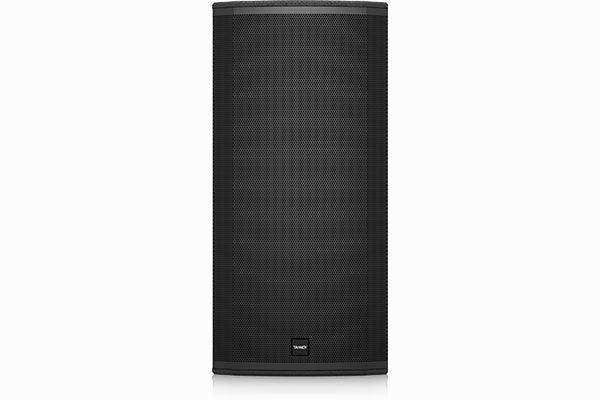

Tannoy VX 12.2Q PowerDual Full Range Loudspeaker (Black) - TA-VX12.2Q-BK

Product Overview

The Tannoy VX 12.2Q is a 12-inch PowerDual full-range loudspeaker delivering high-SPL, low-distortion coverage for medium-to-large-scale sound reinforcement. With a constant-directivity PowerDual driver and a dedicated 12-inch low-frequency driver, it suits high-output installed AV and live applications such as auditoriums, multi-purpose venues, bars and clubs. Its 75-degree by 40-degree dispersion and switchable passive or bi-amp operation give system designers precise pattern control and configuration flexibility.

Product Description

The VX 12.2Q pairs a 12-inch (305 mm) constant-directivity PowerDual driver fitted with a Q-Centric waveguide and a separate 12-inch low-frequency driver for extended bass response and point-source phase coherence. The Q-Centric waveguide enables tighter vertical or horizontal pattern control, producing a precise 75-degree horizontal by 40-degree vertical dispersion for predictable coverage and forward projection. The loudspeaker can run as a passive system or be configured for bi-amp operation, letting integrators optimize amplifier headroom across the low and high sections. It is well suited to front-of-house, floor monitor and side-fill duties in high-SPL environments. The vented, internally braced plywood enclosure uses 15 mm panels with an 18 mm front baffle, finished in hard-wearing semi-matt black paint with a powder-coated perforated steel grille. Connection is handled by dual Neutrik speakON NL4 connectors and a barrier strip, supporting passive or bi-amp wiring. Eight M10 flying inserts (portrait or landscape), eight M10 yoke inserts, Integrip carrying handles and a VTH pole-mount blanking plate provide comprehensive rigging options. Browse the full Tannoy collection at Creation Networks to specify a complete system. The VX 12.2Q is designed in the U.K. and backed by Tannoy's 10-Year Warranty Program.

Key Features

• 12-inch PowerDual Driver — A constant-directivity PowerDual driver with Q-Centric waveguide delivers point-source phase coherence and full-range output.
• Dedicated 12-inch LF Driver — A separate low-frequency driver extends bass response for high-impact, medium-to-large-scale reinforcement.
• Q-Centric Waveguide Pattern Control — The waveguide enables tighter vertical or horizontal control with a precise 75° H x 40° V dispersion.
• Passive or Bi-Amp Operation — A switchable crossover lets the cabinet run passively or bi-amped for optimized amplifier headroom.
• High SPL Output — Rated at 500 watts continuous and 2,000 watts peak in passive mode with 126 dB continuous SPL for demanding venues.
• Flexible Connectivity — Dual Neutrik speakON NL4 connectors and a barrier strip support passive and bi-amp wiring with link-through.
• Comprehensive Rigging — Eight M10 flying inserts, eight M10 yoke inserts, Integrip handles and a VTH blanking plate enable flown, bracketed or pole-mounted installation.
• 10-Year Warranty Program — Designed and engineered in the U.K. and backed by Tannoy's extended warranty for installed-system confidence.

Typical Applications

• Auditorium
• Multi-purpose room
• House of worship
• All-hands room
• Broadcast studio

Technical Specifications

Frequently Asked Questions

Can the VX 12.2Q be bi-amped?
Yes. A switchable crossover allows passive single-channel operation or bi-amp mode, where the low and high sections are driven independently for greater amplifier headroom and control.

What dispersion pattern does it provide?
The Q-Centric waveguide produces a controlled 75-degree horizontal by 40-degree vertical pattern, and the waveguide can be oriented for tighter vertical or horizontal control.

How is it wired?
Two Neutrik speakON NL4 connectors plus a barrier strip support both passive wiring (pins 1+/1- input, 2+/2- link) and bi-amp wiring (pins 1+/1- LF, 2+/2- HF).

What are the mounting options?
The cabinet offers eight M10 flying inserts for portrait or landscape orientation, eight M10 yoke inserts, Integrip handles and a VTH pole-mount blanking plate.

What warranty and support apply?
The VX 12.2Q is designed in the U.K. and covered by Tannoy's 10-Year Warranty Program. Creation Networks provides system design and post-sale technical support.
