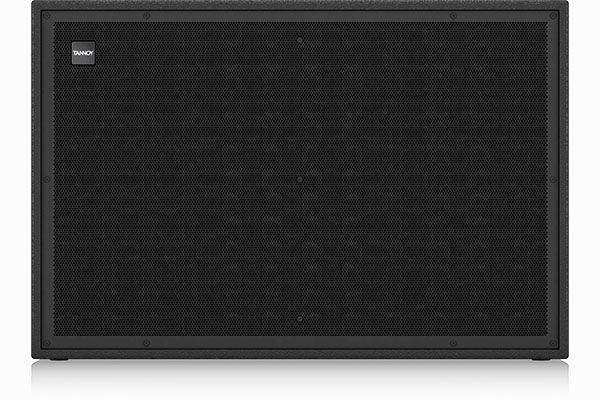

Tannoy VSX215B Horn Loaded Passive Subwoofer (Black) - TA-VSX215B-BK

Product Overview

The Tannoy VSX215B is a horn-loaded dual 15-inch passive subwoofer engineered for high-output low-frequency reinforcement in clubs, theatres and large commercial AV systems. Rated at 2,000 watts continuous and 8,000 watts peak, it extends usable response to 40 Hz while maintaining the efficiency needed for high-SPL music and speech playback. As a fixed-install and touring subwoofer, the VSX215B pairs with full-range Tannoy systems to anchor the bottom end of demanding sound reinforcement designs.

Product Description

The VSX215B uses an extremely efficient horn-loaded design driven by two 15-inch (381 mm) low-frequency transducers to produce maximum sound pressure with controlled, articulate bass. Its internally braced plywood enclosure is finished in a hard-wearing semi-matt black paint with a powder-coated perforated steel mesh grille for durability in both fixed and portable deployments. The cabinet provides integral M10 rigging points and ergonomically integrated side handles, simplifying flown arrays and ground-stacked configurations alike. Connection is handled by Neutrik speakON NL4 and barrier strip terminals supporting both parallel (4 ohm) and discrete (2 x 8 ohm) wiring, giving system designers flexibility when configuring amplifier channels. With a recommended low-pass crossover of 90 to 250 Hz, the VSX215B integrates cleanly beneath full-range loudspeakers in theatres, clubs and multi-purpose performance venues. It is well suited to foreground music playback where extended, low-distortion bass underpins the program material. The subwoofer is designed and engineered in the U.K. and is covered by Tannoy's 10-Year Warranty Program. Explore the full Tannoy collection at Creation Networks to build a complete sound reinforcement system.

Key Features

• Horn-Loaded Dual 15-inch Design — Two 381 mm low-frequency drivers in an efficient horn-loaded enclosure deliver maximum sound pressure for large-scale music and speech reinforcement.
• High Power Handling — Rated at 2,000 watts continuous and 8,000 watts peak, the subwoofer sustains high output in touring and installation applications.
• Extended Low-Frequency Response — Usable output to 40 Hz provides the deep foundation required for foreground music in clubs, bars and theatres.
• Flexible Wiring Options — Neutrik speakON NL4 and barrier strip connectors support 4 ohm parallel or 2 x 8 ohm discrete operation for versatile amplifier configuration.
• Integral Rigging Points — M10 x 22 flying points and ergonomic side handles allow safe flown or ground-stacked deployment.
• Rugged Commercial-Grade Construction — An internally braced 18 mm plywood enclosure with semi-matt black finish and powder-coated steel grille withstands repeated transport and fixed installation.
• 10-Year Warranty Program — Designed and engineered in the U.K. and backed by Tannoy's extended warranty for installed system confidence.

Typical Applications

• Auditorium
• Multi-purpose room
• House of worship
• Broadcast studio

Technical Specifications

Frequently Asked Questions

Is the VSX215B a powered or passive subwoofer?
It is a passive subwoofer and requires external amplification. A recommended low-pass crossover of 90 to 250 Hz lets you integrate it beneath full-range tops in a processed system.

How do I wire the subwoofer to my amplifier?

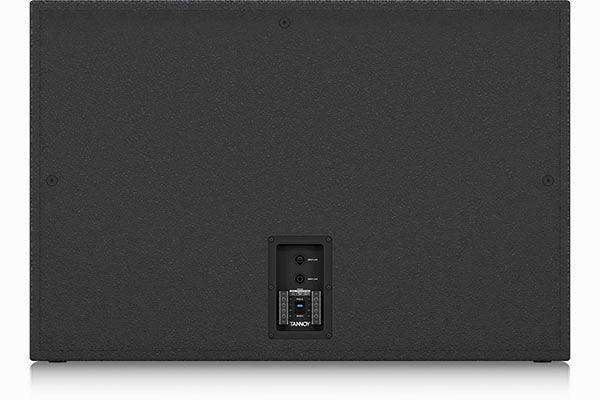

The VSX215B provides Neutrik speakON NL4 and barrier strip connectors, supporting 4 ohm parallel operation or discrete 2 x 8 ohm wiring across the two internal drivers for flexible amplifier channel assignment.

Can it be flown for permanent installation?
Yes. Integral M10 x 22 rigging points allow the cabinet to be flown or ground-stacked, making it suitable for fixed install in auditoriums and houses of worship as well as touring use.

What loudspeakers does it pair with?
It is designed to extend low-frequency output beneath full-range Tannoy systems. Browse the Tannoy collection at Creation Networks for compatible tops, and our AV team can specify the correct crossover and amplifier pairing.

What warranty and support are included?
The VSX215B is designed and engineered in the U.K. and covered by Tannoy's 10-Year Warranty Program. Creation Networks provides project support, system design assistance and post-sale technical help.
