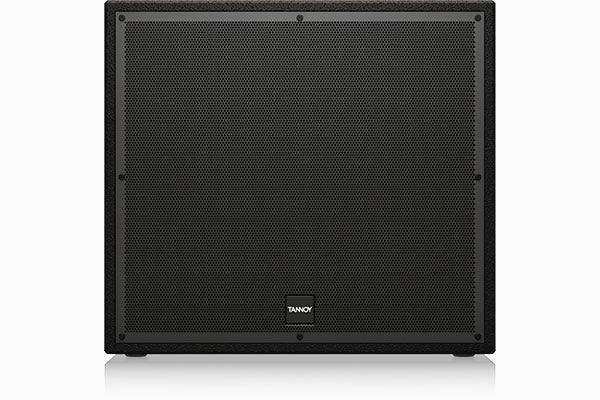

Tannoy VSX118B Direct Radiating Passive Subwoofer (Black) - TA-VSX118B-BK

Product Overview

The Tannoy VSX118B is a direct-radiating 18-inch passive subwoofer engineered for low-frequency reinforcement in clubs, bars, theatres and commercial AV systems. Rated at 1,000 watts continuous and 4,000 watts peak, it extends usable response to below 40 Hz with a low-distortion dual-port design. As a fixed-install, portable and touring subwoofer, the VSX118B anchors the low end beneath full-range Tannoy loudspeakers in demanding speech and music applications.

Product Description

The VSX118B uses a single 18-inch driver in a low-distortion dual-port enclosure to produce maximum sound pressure with extended, controlled bass below 40 Hz. The internally braced plywood cabinet is finished in a hard-wearing semi-matt black paint with a powder-coated perforated steel mesh grille, suiting both transport and permanent installation. Integral M10 rigging points and ergonomic Integrip handles on the top of the cabinet simplify flown arrays and ground-stacked configurations, while a blanking plate supports an optional VTH pole mount for satellite-over-sub setups. Connection is handled by Neutrik speakON NL4 and barrier strip terminals for input and link output, allowing clean daisy-chaining across multiple subwoofers. The VSX118B integrates beneath full-range systems in theatres, clubs and multi-purpose venues where deep, low-distortion bass underpins foreground music and speech reinforcement. A white finish is available as the Tannoy VSX118B-WH. Browse the full Tannoy collection at Creation Networks. The subwoofer is designed and engineered in the U.K. and covered by Tannoy's 10-Year Warranty Program.

Key Features

• Direct-Radiating 18-inch Driver — A single 18-inch transducer delivers extended low-frequency output to below 40 Hz for clubs, theatres and AV systems.
• High Power Handling — Rated at 1,000 watts continuous and 4,000 watts peak, the subwoofer sustains high output in portable and installation use.
• Low-Distortion Dual-Port Design — The dual-port enclosure maximizes sound pressure while keeping distortion low at high drive levels.

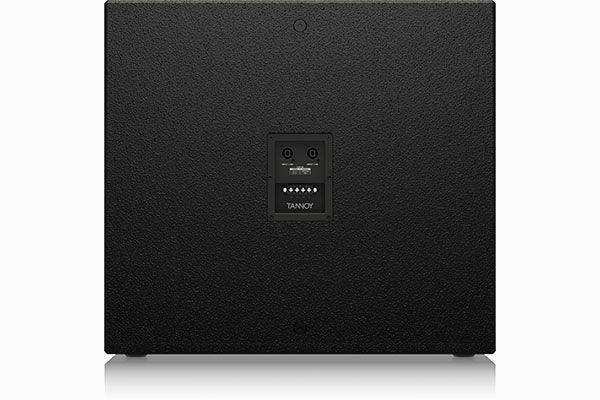

• Flexible Connectivity — Neutrik speakON NL4 and barrier strip connectors provide input and link output for clean multi-cabinet wiring.
• Integral Rigging and Handles — M10 rigging points and ergonomic Integrip handles support flown or ground-stacked deployment.
• Pole-Mount Ready — A blanking plate accommodates an optional VTH pole mount for satellite-over-subwoofer configurations.
• Commercial-Grade Construction — An internally braced plywood enclosure with semi-matt black finish and steel grille withstands transport and fixed installation.
• 10-Year Warranty Program — Designed and engineered in the U.K. and backed by Tannoy's extended warranty.

Typical Applications

• Auditorium
• Multi-purpose room
• House of worship
• Broadcast studio

Technical Specifications

Frequently Asked Questions

Is the VSX118B powered or passive?
It is a passive subwoofer and requires external amplification and an appropriate low-pass crossover to integrate beneath full-range tops.

How low does it go?
The 18-inch driver in its dual-port enclosure extends usable low-frequency output to below 40 Hz for deep foreground music and effects.

How is it wired into a system?
Neutrik speakON NL4 and barrier strip connectors provide input and link output, allowing multiple subwoofers to be daisy-chained cleanly.

Can I mount satellite speakers on top?
Yes. A blanking plate accommodates an optional VTH pole mount, and integral M10 points allow flying or ground stacking.

What warranty and support are included?
The VSX118B is designed in the U.K. and covered by Tannoy's 10-Year Warranty Program. Creation Networks provides system design and post-sale technical support.
