Tannoy VSX 12.2BP-WH Compact Band-Pass Passive Subwoofer (White) - TA-VSX12.2BP-WH

Product Overview

The Tannoy VSX 12.2BP-WH is a compact dual 12-inch band-pass passive subwoofer in a white finish, built for low-frequency reinforcement in clubs, bars, theatres and commercial AV systems. Rated at 800 watts continuous and 3,200 watts peak, it extends usable response to below 40 Hz with a low-distortion dual-port band-pass design. The white finish suits architecturally sensitive venues while delivering deep bass from a compact footprint in fixed, portable and touring systems.

Product Description

The VSX 12.2BP-WH houses twin 12-inch bass drivers in a band-pass enclosure with a low-distortion dual-port design that maximizes sound pressure while keeping output controlled at high drive levels. The internally braced plywood cabinet is finished in a hard-wearing semi-matt white paint with a powder-coated perforated steel mesh grille, suiting both transport and permanent installation in light-colored interiors. Integral M10 rigging points and rear-mounted Integrip handles simplify flown and ground-stacked configurations, while a blanking plate supports an optional VTH pole mount for satellite-over-sub setups. Connection is handled by Neutrik speakON NL4 and barrier strip terminals for input and link output, enabling clean daisy-chaining across multiple subwoofers. The compact form factor lets the VSX 12.2BP-WH slip into space-constrained installs in theatres, clubs and multi-purpose venues while still delivering deep, low-distortion bass beneath full-range systems. A black finish is available as the Tannoy VSX 12.2BP. Browse the full Tannoy collection at Creation Networks. The subwoofer is designed and engineered in the U.K. and covered by Tannoy's 10-Year Warranty Program.

Key Features

• Twin 12-inch Band-Pass Design — Two 12-inch bass drivers in a band-pass enclosure extend low-frequency response to below 40 Hz from a compact cabinet.
• High Power Handling — Rated at 800 watts continuous and 3,200 watts peak, the subwoofer sustains high output in portable and installation use.

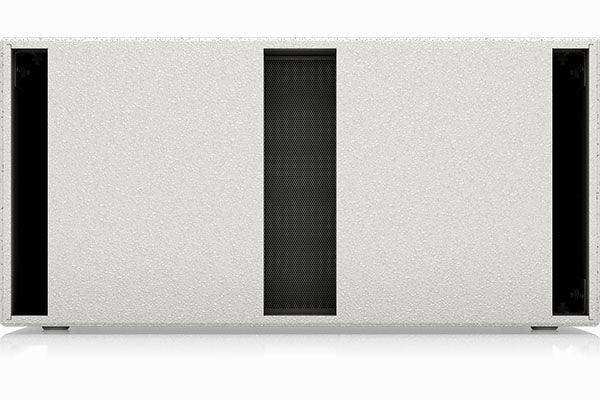

• Low-Distortion Dual-Port Enclosure — The dual-port band-pass design maximizes sound pressure while keeping distortion low.
• White Architectural Finish — Semi-matt white paint lets the cabinet blend into light-colored rooms and decor.
• Compact Footprint — The reduced cabinet size suits space-constrained fixed installs and portable rigs.
• Flexible Connectivity — Neutrik speakON NL4 and barrier strip connectors provide input and link output for clean multi-cabinet wiring.
• Integral Rigging and Handles — M10 rigging points and rear Integrip handles support flown or ground-stacked deployment.
• 10-Year Warranty Program — Designed and engineered in the U.K. and backed by Tannoy's extended warranty.

Typical Applications

• Auditorium
• Multi-purpose room
• House of worship
• Broadcast studio

Technical Specifications

Frequently Asked Questions

Is the VSX 12.2BP-WH powered or passive?
It is a passive subwoofer and requires external amplification and an appropriate low-pass crossover to integrate beneath full-range tops.

How low does it go?
The twin 12-inch drivers in a band-pass enclosure extend usable low-frequency output to below 40 Hz from a compact cabinet.

How is it wired into a system?

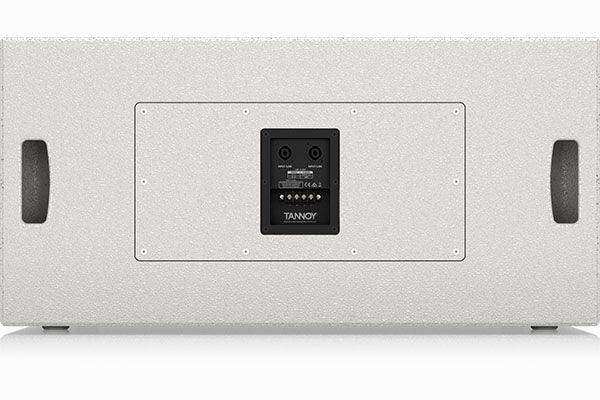

Neutrik speakON NL4 and barrier strip connectors provide input and link output, allowing multiple subwoofers to be daisy-chained cleanly.

Can I mount satellite speakers on top?
Yes. A blanking plate accommodates an optional VTH pole mount, and integral M10 points allow flying or ground stacking.

What warranty and support are included?
The VSX 12.2BP-WH is designed in the U.K. and covered by Tannoy's 10-Year Warranty Program. Creation Networks provides system design and post-sale technical support.
