Tannoy VSX 10BP-WH Compact Band-Pass Passive Subwoofer (White) - TA-VSX10BP-WH

Product Overview

The Tannoy VSX 10BP-WH is a compact 10-inch band-pass passive subwoofer that adds low-frequency extension to portable and installed sound systems. Finished in white, this 800-watt subwoofer uses a low-distortion dual-port band-pass design to reach below 40 Hz, making it well suited to background music and AV playback in clubs, bars, theatres, and commercial venues. Integral M10 rigging points and Neutrik speakON connectivity simplify both flown installation and ground-stacked portable use.

Product Description

The VSX 10BP-WH pairs a 250 mm (10") bass driver with a dual-port band-pass enclosure to deliver extended, low-distortion bass with high output for its size. A -3 dB response of 42 Hz to 110 Hz and a -10 dB extension to 36 Hz let it underpin full-range systems with controlled, musical low end. Rated at 200 W continuous and 800 W peak into an 8-ohm load with 93 dB sensitivity, the subwoofer reaches 116 dB average SPL and pairs cleanly with Tannoy full-range cabinets using the recommended 80-110 Hz crossover and a 40 Hz high-pass filter.

The cabinet is built from internally braced 15 mm birch plywood with a hard-wearing semi-matte white finish. Eight M10 flying inserts support landscape mounting (portrait orientation is for ground-stacked use only), while an ergonomically integrated Integrip handle eases handling and a blanking plate accepts an optional VTH pole mount. Two Neutrik speakON NL4 connectors plus a barrier strip provide input and link-through wiring for clean integration into fixed or portable rigs. Browse the full Tannoy collection at Creation Networks, or compare the black finish, the VSX 10BP, for darker rooms.

Key Features

• 10" band-pass bass driver — The 250 mm driver in a band-pass enclosure extends system response below 40 Hz for full, controlled low end.

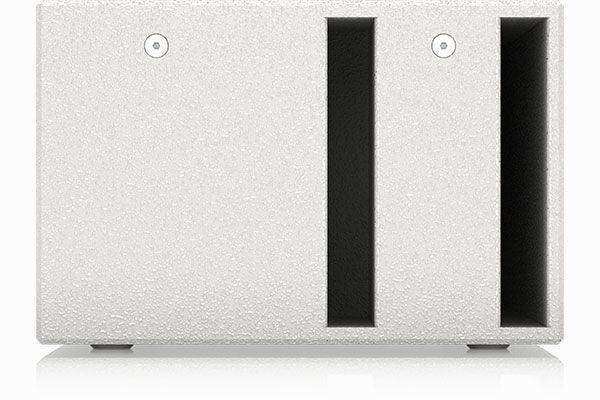

• Low-distortion dual-port design — The dual-port band-pass alignment maximizes sound pressure level while keeping harmonic distortion low.
• 800 W peak power handling — Rated 200 W continuous and 800 W peak at 8 ohms, reaching 116 dB average SPL.
• Eight M10 flying inserts — Integral rigging points support flown landscape mounting, with portrait orientation for ground-stacked use.
• Integrip carrying handle — An ergonomically integrated rear handle eases transport and positioning.
• Neutrik speakON NL4 and barrier strip — Dual connectors with input and link output simplify wiring in fixed and portable systems.
• Braced birch plywood enclosure — The internally braced 15 mm birch cabinet with semi-matte white finish is built for sustained use.
• 10-year warranty program — Designed and engineered in the U.K. and backed by Tannoy's extended warranty.

Typical Applications

• Multi-purpose room
• Auditorium
• House of worship
• Broadcast studio

Technical Specifications

Frequently Asked Questions

Is the VSX 10BP-WH a passive subwoofer?
Yes. It is a passive 8-ohm band-pass subwoofer driven by an external amplifier, with a recommended amplifier power of 400 W at 8 ohms.

What crossover settings does Tannoy recommend?
An 80-110 Hz low-pass at 24 dB/octave and a 40 Hz high-pass at 24 dB/octave are recommended for clean integration with full-range tops.

Can it be flown?
Yes. Eight M10 flying inserts support landscape flown mounting; portrait orientation should be used only when ground stacked.

How does it connect into a system?

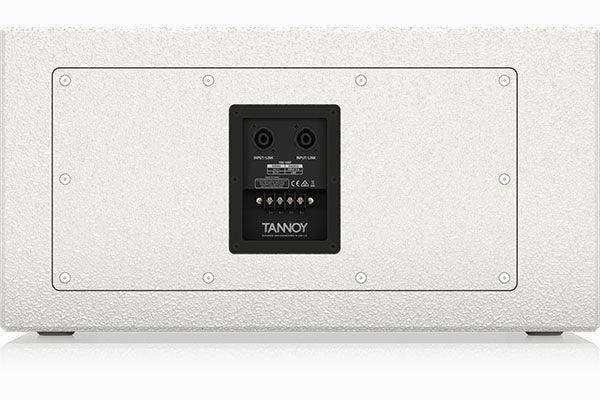

Two Neutrik speakON NL4 connectors and a barrier strip provide input and link-through wiring for both fixed installs and portable rigs.

Is it sold individually?
This listing is for a single subwoofer (packed quantity 1). Our AV team can size subwoofer count for your venue and provide a project quote.
