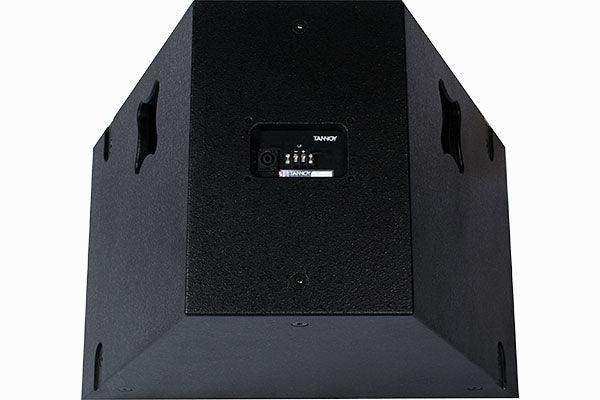

Tannoy VQ MB Dual 12" Mid-Bass Large Format Loudspeaker - TA-VQ MB

TannoySKU: TA-VQ MB
No reviews

Price:
Sale price$2,099.00

Description

The VQ MB is a high power low/mid frequency module that replicates the low frequency section of the VQ 60 & VQ 100 full range loudspeakers, and can be flown or ground stacked to provide improved LF pattern control with full range or mid/high systems in the VQ series. Two (12”) low frequency transducers offer high power handling and low power compression for high continuous SPL capability. A newly designed LF loading design provides the highest possible sensitivity for low/mid frequency output (105 dB/w). The VQ MB is principally intended for use with the VQ 60 & VQ 100 full range systems to construct arrays with extended low frequency pattern control. By fixing a VQ MB at the opposing end of a VQ full range loudspeaker we can effectively extend pattern control to below the cutoff point of the Mid/High PSW waveguide.




  • Mid-bass large format loudspeaker for high performance installation applications

  • 1,000 Watts continuous, 4,000 Watts peak power

  • Dual 12" low frequency drivers in semi horn-loaded configuration

  • For use with VQ full range systems to extend low frequency pattern control and mid-bass output

  • Arrayable form factor allows use in combination with VQ MH mid-high speakers

  • Extremely high efficiency design provides high SPL for modest power input

  • Modular design allows for versatile and compact cluster configurations

  • Internally braced birch plywood enclosure

  • Finished with hard wearing semi matt black paint

  • Rugged powder coated perforated steel mesh grille

  • Integral M10 rigging points for ease of installation

  • 2 handles ergonomically integrated into cabinet

  • Optional vertical flyware with 10:1 safety ratio (available separately)

  • speakON NL4 and barrier strip connectors for input and link output

Data Sheet

Performance
System Type

Mid Bass - Vented

Frequency Response (-3 dB) (1)

115 Hz - 500 Hz

Frequency Range (-10 dB) (1)

90 Hz - 600 Hz

System Sensitivity & Operating Freq. (1 W @ 1 m) (2)

105 dB (2.0 V @ 4 Ohms)

Driver Complement

2 x 300 mm (12.00") Low Frequency Transducers
Semi Horn Loaded

Rated Maximum SPL (2)

Average: 135 dB
Peak: 141 dB

Power Handling (3)

Average: 1000 W (63.3 V)
Programme: 2000 W

Recommended Amplifier Power

2000 W into 4 Ohms

Nominal Impedance

4 Ohms (4.1 Ohms Minimum)

Distortion
110 dB SPL

2nd Harmonic 200 Hz: 0.152%, 400 Hz: 0.067%
3rd Harmonic 200 Hz: 0.065%, 400 Hz: 0.023%

120 dB SPL

2nd Harmonic 200 Hz: 0.446%, 400 Hz: 0.128%
3rd Harmonic 200 Hz: 0.175%, 400 Hz: 0.138%

Construction
Enclosure

18 mm (0.71") birch plywood, internally steel braced

Grille

Powder coated perforated steel grille

Finish

Textured black or white paint (custom colours on request)

Connectors

Barrier strip and Neutrik NL4

Fittings

2 x Recessed carrying handles
12 x M10 flying inserts

Dimensions (H x W x D)

433 x 694 x 515 mm (17.05 x 27.32 x 20.28")

Net Weight (ea)

37 kg (81.6 lbs)
