Tannoy VLS 7 (EN 54)-WH Passive Column Array Loudspeaker (EN 54-24 Certified, White) - TA-VLS7-WH

Product Overview

The Tannoy VLS 7 (EN 54)-WH is a 600-watt passive column array loudspeaker engineered for high-intelligibility speech reproduction in acoustically challenging, architecturally sensitive spaces. EN 54-24 certified for fire detection and voice alarm systems, this slim white column suits airports, train stations, conference centers, houses of worship, stadium concourses, and museums. Its Focused Asymmetrical Shaping Technology (FAST) directs coverage toward the listening plane, and full 70V/100V capability plus IP65 weather resistance make it equally at home indoors and outdoors.

Product Description

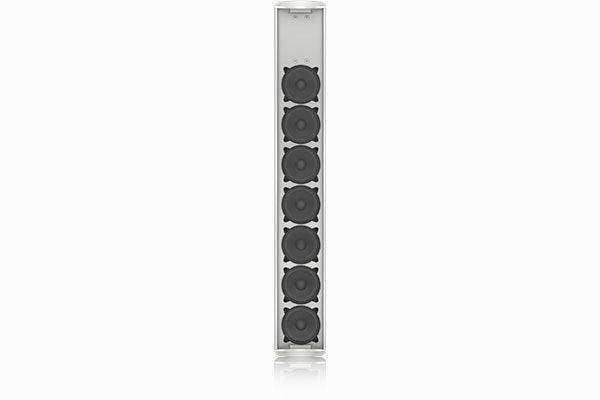

The VLS 7 (EN 54)-WH arrays seven vertically aligned 3.5" mid-range drivers to produce a tall, narrow vertical pattern with wide horizontal coverage, the dispersion profile that reverberant rooms demand for clear speech. Its asymmetrical vertical dispersion gently shapes acoustic energy toward the lower quadrant of the vertical axis, so the column directs sound at the audience rather than reflective ceilings. FAST also reduces the need for downward tilting at mounting, which speeds installation and preserves the clean architectural line of the column.

Rated at 150 W continuous and 600 W peak, the VLS 7 (EN 54)-WH includes multiple 70V and 100V transformer taps plus a 12-ohm direct input, with a low-insertion-loss 150 W line transformer and an accessible tap switch. EN 54-24 compliance makes it suitable for voice alarm and mass-notification systems where life-safety certification is mandatory. All components are weather resistant to IP65, the chassis is powder-coated aluminum in semi-matte white, and the grille is corrosion-resistant stainless steel. Included custom brackets support quick, accurate mounting. Browse the full Tannoy collection at Creation Networks, or compare the black finish, the VLS 7 (EN 54), for darker facades.

Key Features

• Seven 3.5" arrayed mid-range drivers — The vertical array produces high-intelligibility speech reproduction with controlled coverage in reverberant rooms.
• FAST asymmetrical dispersion — Focused Asymmetrical Shaping Technology aims energy toward the listening plane and reduces the need for tilting at install.
• EN 54-24 certified — The column is approved for fire detection and voice alarm systems where life-safety certification is required.
• 70V/100V and 12-ohm operation — Multiple transformer taps support distributed line systems, with 12-ohm direct input for low-impedance use.
• IP65 weather resistance — All components are rated to IP65, allowing reliable indoor and outdoor deployment.
• Architectural aluminum chassis — The slim powder-coated aluminum enclosure with stainless steel grille suits sightline-sensitive interiors and facades.
• Included custom brackets — Purpose-designed brackets allow quick, accurate, and secure installation.
• 10-year warranty program — Designed and engineered in the U.K. and backed by Tannoy's extended warranty.

Typical Applications

• House of worship
• Auditorium
• Government space
• Multi-purpose room
• Conference room

Technical Specifications

Frequently Asked Questions

Is the VLS 7 (EN 54)-WH suitable for voice alarm and mass notification?
Yes. It is EN 54-24 certified for fire detection and fire alarm systems, making it appropriate for life-safety voice evacuation applications.

Does it run on 70V/100V distributed systems?
Yes. It offers multiple 70V and 100V transformer taps and can also be driven at 12 ohms via direct low-impedance input.

Can it be installed outdoors?
Yes. All components are weather resistant to IP65, supporting both indoor and outdoor installation.

Why is asymmetrical dispersion useful in reverberant spaces?
FAST directs sound toward the lower listening plane and away from reflective surfaces, which improves intelligibility in halls, transit terminals, and houses of worship while reducing the need for tilting.

What support is available for system design?
Our AV team can assist with column placement, tap settings, and EN 54 system integration, and provide a project quote.
