Tannoy VLS 15 (EN 54) Passive Column Array Loudspeaker (EN 54-24 Certified, Black) - TA-VLS15-BK

TannoySKU: TA-VLS15-BK
No reviews

Price:
Sale price$1,099.00

Description

The VLS 15 (EN 54) is an 800-Watt passive column array loudspeaker ideally suited for challenging acoustic and architecturally sensitive spaces where background/foreground music and speech reinforcement is required. Applications include airports, train stations, conference centers, houses of worship, stadium concourses, museums, theme parks and hotels. The heart of the loudspeaker system is its asymmetrical vertical dispersion, which gently shapes the acoustic coverage towards the lower quadrant of the vertical axis.

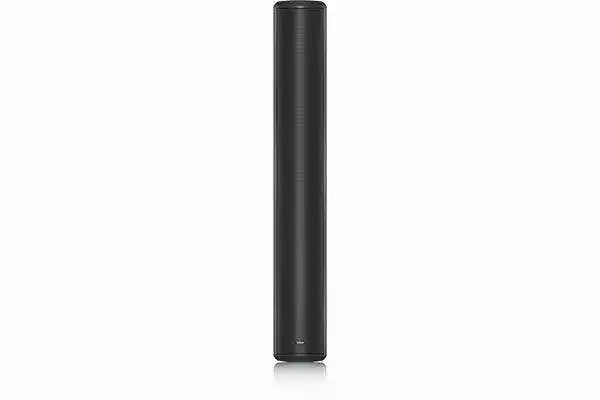

VLS 15 (EN 54)’s Focused Asymmetrical Shaping Technology (FAST) also facilitates quick and easy installation, with less need for tilting for optimal mounting. EN 54-24 compliance makes the VLS 15 (EN 54) the perfect choice where safety is a top priority. VLS 15 (EN54) packages this performance in a slender and narrow profile, aesthetically refined, powder coated aluminum chassis with curved stainless steel grille.





  • Passive column array loudspeaker for indoor and outdoor installation applications

  • 200 Watts continuous, 800 Watts peak power

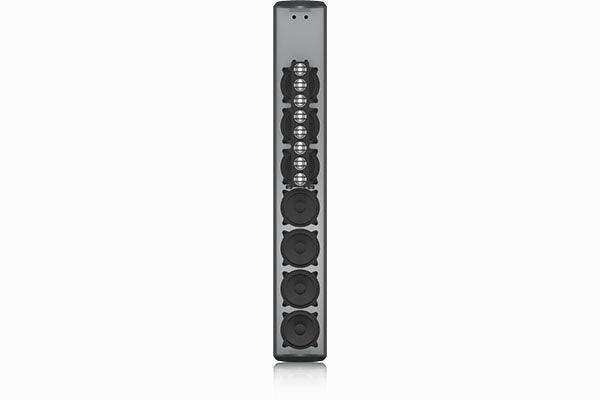

  • 7 vertically arrayed 3.5" low frequency drivers provide high intelligibility speech reproduction

  • 8 vertically arrayed 1" high frequency metal dome tweeters for full range sound up to 35 kHz

  • FAST (Focussed Asymmetrical Shaping Technology) delivers asymmetric vertical dispersion towards the typical listening plane

  • EN 54-24 certified for fire detection and fire alarm systems

  • Multiple transformer taps for 70 V and 100 V line systems or 12 Ohm direct input

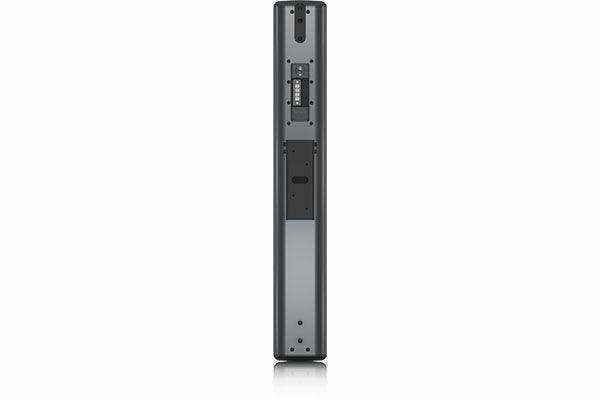

  • Low insertion loss 150 W line transformer with easily accessible tapping switch

  • All components weather resistant to IP65 for outdoor use

  • Architecturally styled aluminium enclosure with a semi matt black painted finish

  • Corrosion resistant stainless steel perforated grille

  • Included custom brackets allow quick and accurate installation

  • 10-Year Warranty Program*

  • Designed and engineered in the U.K.

Data Sheet

System
Frequency response

150 Hz - 30 kHz ±3 dB
110 Hz - 35 kHz -10 dB

Horizontal dispersion (-6 dB)

130° H

Vertical dispersion (-6 dB)

+6° / -22° V (-8° bias)

Power handling (IEC)

200 W average, 400 W continuous, 800 W peak

Recommended amplifier power

600 W @ 8 Ω

System sensitivity

91 dB (1 m, Lo Z)

Sensitivity (per EN54-24)

76 dB (4 M, through transformer)

Nominal impedance (Lo Z)

12 Ω

Maximum SPL (per EN54-24)

96 dB (4 M, through transformer)

Rated maximum SPL

114 dB continuous, 120 dB peak (1 m, Lo Z)

Crossover

Passive, utilizing Focussed Asymmetrical Shaping Technology (FAST)

Crossover point

2.5 kHz

Directivity factor (Q)

9.1 averaged, 1 kHz to 10 kHz

Directivity index (DI)

9.6 average, 1 kHz to 10 kHz

Components

7 x 3.5" (89 mm) woofers
8 x 1" (25 mm) metal dome tweeters

Transformer taps (via rotary switch) (Rated noise power and impedance)
70 V

150 W (33 Ω) / 75 W (66 Ω) / 37.5 W (133 Ω) /
19 W (265 Ω) / 9.5 W (520 Ω) / 5 W (1000 Ω)
OFF & low impedance operation

100 V

150 W (66 Ω) / 75 W (133 Ω) / 37.5 W (265 Ω) /
19 W (520 Ω) / 9.5 W (1000 Ω) /
OFF & low impedance operation

Coverage angles
500 Hz

226° H x 114° V

1 kHz

191° H x 57° V

2 kHz

131° H x 32° V

4 kHz

119° H x 27° V

Enclosure
Connectors

Barrier strip

Wiring

Terminal 1+ / 2- (input); 3- / 4+ (link)

Dimensions H x W x D

816 x 121  x 147 mm (32.1  x 4.8 x 5.8")

Net weight

11.7 kg (25.7 lbs)

Construction

Aluminium extrusion

Finish

Paint RAL 9004 (black)Custom RAL colours available(additional cost and lead-time)

Grille

Powder coated perforated steel

Flying hardware

Flying bracket, wall mount bracket,input panel cover plate and gland
