Tannoy SAT SUB Compact Wall-Mount Subwoofer (Black) - TA-SAT-SUB-BK

Product Overview

The Tannoy SAT SUB is a slimline compact wall-mount subwoofer that extends low-frequency output for commercial background and foreground music systems. Designed to reproduce frequencies below 400 Hz, it complements satellite loudspeakers in bars, restaurants, and retail spaces where floor-standing bass is impractical. With a built-in transformer for 70V/100V operation and integrated satellite terminals, it drops into distributed audio systems with minimal additional wiring.

Product Description

The SAT SUB uses a single 6.5-inch paper-cone driver in a slim MDF enclosure that mounts flush against a wall, keeping the footprint small in busy hospitality and retail environments. An integrated crossover and terminal block provide connections for two or four satellite loudspeakers, allowing the subwoofer to serve as the wiring hub for a compact zone. The built-in transformer offers 70V and 100V taps as well as an 8-ohm low-impedance option, so the SAT SUB fits both constant-voltage distributed systems and conventional amplifier setups. With 80 watts continuous power handling and a 116 dB maximum SPL, it adds warmth and weight to foreground music without dominating the space. The steel grille and matte black finish present a discreet, durable face suited to public areas. A wall-mount bracket, rubber feet, and a paper positioning template are included to speed installation. The SAT SUB is intended to pair with Tannoy SAT-series satellites for a balanced full-range result. Explore the full Tannoy collection at Creation Networks, or compare the white version, the Tannoy SAT SUB-WH.

Key Features

• Slimline wall-mount enclosure — A shallow MDF cabinet mounts flat to the wall, keeping bass reinforcement out of the way in compact commercial rooms.

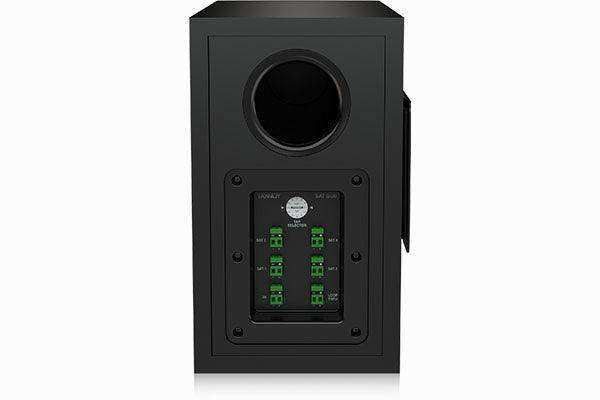

• Integrated satellite crossover — Onboard crossover and terminals connect two or four satellite loudspeakers, letting the subwoofer act as the zone wiring hub.
• 70V/100V and 8-ohm operation — A built-in multi-tap transformer supports constant-voltage distributed systems and low-impedance amplifier connections.
• Low-frequency extension below 400 Hz — The 6.5-inch driver fills in bass beneath compact satellites for a fuller foreground music presentation.
• 116 dB maximum SPL — With 80 W continuous handling, it delivers usable output for hospitality and retail playback levels.
• Complete mounting kit — Wall bracket, rubber feet, and a positioning template are included to reduce installation time.

Typical Applications

• Commercial meeting space
• Multi-purpose room
• Training room

Technical Specifications

Frequently Asked Questions

Does the SAT SUB work on a 70V or 100V distributed system?
Yes. It has a built-in transformer with both 70V and 100V taps, plus an 8-ohm low-impedance option for conventional amplifiers.

Which satellite speakers pair with it?
It is designed to feed Tannoy SAT-series satellite loudspeakers, with integrated terminals for two or four satellites; the SAT 3 satellites are available separately.

How is the SAT SUB mounted?
It ships with a wall-mount bracket, rubber feet, and a paper positioning template, so it can be installed flat against a wall without additional hardware.

What crossover frequency does it use?
The integrated crossover is set at 200 Hz, blending the subwoofer with compact satellite loudspeakers for foreground and background music.

Who can help size the system?
Creation Networks can advise on satellite pairing, tap settings, and amplifier selection. Contact us for a project quote.
