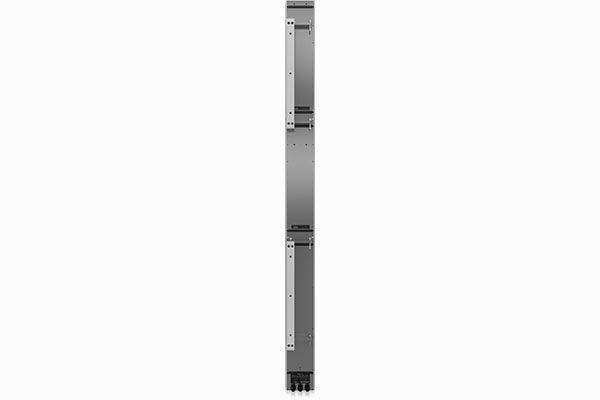

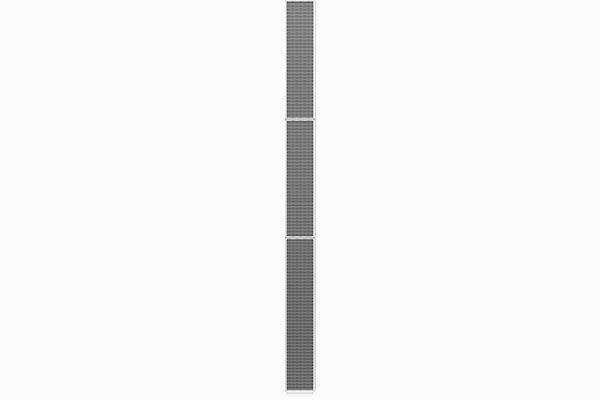

Tannoy QFLEX 40-WP Digitally Steerable Powered Column Array Loudspeaker (Weather Protected) - TA-QFLEX 40WP SYSTEM-WH

Product Overview

The Tannoy QFLEX 40-WP digitally steerable powered column array loudspeaker delivers electronically aimed speech and music reinforcement for installed applications with challenging acoustics. This weather-protected column array speaker steers coverage to distant listeners without physical re-aiming, making it well suited to houses of worship, transportation hubs, and convention centres. Certified to IP54 for water and dust ingress, it also handles indoor pools, dusty work areas, and moderate outdoor environments. The QFLEX 40-WP joins wider Tannoy systems over the proprietary VNET loudspeaker networking platform for integrated DSP, amplification, and monitoring.

Product Description

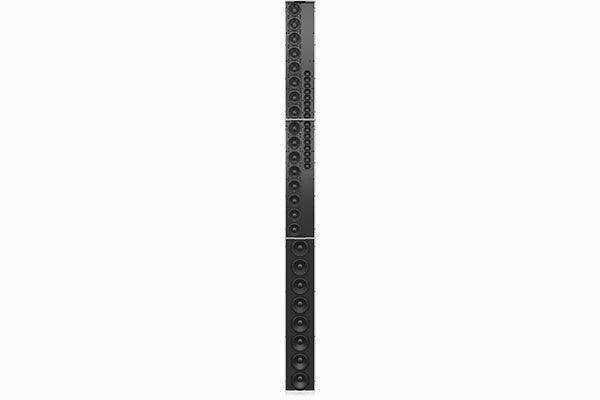

The QFLEX 40-WP combines eight 4-inch low-frequency drivers, sixteen 3-inch low-frequency drivers, and sixteen 1-inch high-frequency drivers, each driven by an individual 100-watt Class D amplifier across 40 channels of integrated DSP and amplification. The high-density transducer array uses proportional frequency spacing to prevent aliasing artefacts and extend beam-steering control across the audio band. Through the intuitive BeamEngine GUI, AV system designers create asymmetric coverage patterns and balance near-field and far-field SPL with class-leading vertical steering of plus or minus 70 degrees. The array is rated for installation coverage distances up to 70 m (230 feet), suiting reverberant rooms and tall architecture. It is fully PA/VA compliant for voice alarm and life-safety use, and AES3 input and link connections on RJ-45 connectors provide internal sample rate conversion up to 96 kHz. Input accessory options support constant-voltage systems and Audinate Dante digital audio networks for integration into networked AV infrastructure. The architecturally styled aluminium enclosure carries a semi matt white painted finish with a corrosion-resistant perforated aluminium grille, and included custom brackets allow quick, accurate installation. Browse the full Tannoy collection at Creation Networks, or step up to the larger Tannoy QFLEX 48-WP for longer throw distances.

Key Features

• Digital Beam Steering — Electronic steering of plus or minus 70 degrees aims coverage precisely without tilting the loudspeaker, improving intelligibility in difficult rooms.
• 40-Channel DSP and Amplification — Forty channels of integrated DSP drive individual 100-watt Class D amplifiers for each transducer for fine pattern control.
• High-Density Transducer Array — Eight 4-inch and sixteen 3-inch low-frequency drivers plus sixteen 1-inch high-frequency drivers with proportional spacing prevent aliasing and extend steering across the band.
• BeamEngine GUI — The BeamEngine software creates asymmetric patterns and even near-field and far-field SPL coverage across the audience.
• Long-Throw Coverage — Rated for installation coverage distances up to 70 m (230 feet) for large auditoriums and reverberant transport spaces.
• IP54 Weather Protection — All components are weather and dust resistant to IP54, suiting pools, dusty environments, and moderate outdoor use.
• VNET Networking — The proprietary VNET platform links the array to other Tannoy products for unified DSP, amplification, diagnostics, and monitoring.
• PA/VA Compliant — Full PA/VA compliance supports voice alarm and public address life-safety systems.
• Flexible Inputs — AES3 on RJ-45 with sample rate conversion to 96 kHz, plus accessory options for constant-voltage and Dante networks, ease integration into networked AV systems.
• 10-Year Warranty Program — Backed by Tannoy's 10-Year Warranty Program and designed and engineered in the U.K.

Typical Applications

• House of worship
• Auditorium
• Government space
• Multi-purpose room
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

How does the QFLEX 40-WP steer sound without moving the loudspeaker?
Its 40 channels of DSP independently control each transducer, electronically aiming the beam plus or minus 70 degrees in the vertical plane. The BeamEngine GUI sets asymmetric patterns and multiple beams to match the room.

Can it integrate with a Dante AV network?
Yes. Input accessory options support Audinate Dante digital audio networks and constant-voltage systems, while AES3 input and link connections on RJ-45 provide sample rate conversion up to 96 kHz.

Is it suitable for outdoor or wet environments?
All components are weather and dust resistant to IP54, suiting indoor swimming pools, dusty work areas, and moderate outdoor applications.

What coverage distance can I expect?
The QFLEX 40-WP is specified for installation coverage distances up to 70 m (230 feet), appropriate for large, reverberant venues.

Can it serve a voice alarm or public address system?
Yes. The system is fully PA/VA compliant, so it can fill life-safety voice alarm and public address roles alongside music and speech reinforcement.

What warranty and support are available?
The QFLEX 40-WP is covered by Tannoy's 10-Year Warranty Program. Contact Creation Networks for project design assistance, integration guidance, and a quote.
