Tannoy QCI 6DC High-Performance 6" Dual Concentric Ceiling Loudspeaker (White) - TA-QCI 6DC-WH
Tannoy QCI 6DC High-Performance 6" Dual Concentric Ceiling Loudspeaker (White) - TA-QCI 6DC-WH is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Tannoy QCI 6DC High-Performance 6" Dual Concentric Ceiling Lou...
Product Overview
The Tannoy QCI 6DC is a high-performance 6-inch Dual Concentric ceiling loudspeaker for natural, detailed music and AV reproduction in commercial and residential interiors. Built to the same standards as Tannoy's professional and hi-fi monitors, its point-source constant-directivity driver and Tulip Waveguide deliver smooth, even coverage. Shipping with round and square baffles, a thin bezel, and a paintable grille, this in-ceiling loudspeaker adapts to many ceiling styles while staying discreet.
Product Description

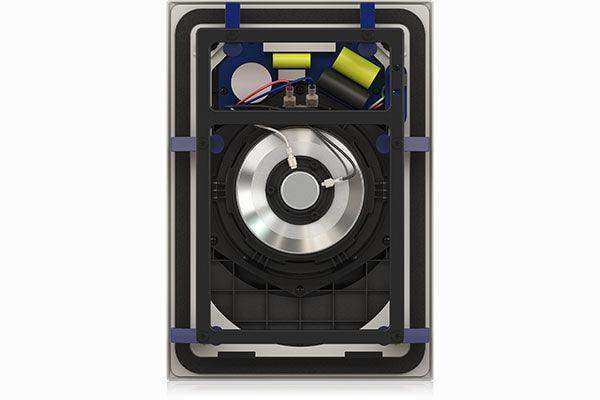

The QCI 6DC centers a 1-inch high-frequency unit within a 6-inch glass-fibre cone for true point-source behaviour and a consistent sonic signature that can be mixed across stereo, surround, and multi-room systems. The Tulip Waveguide maintains smooth, uniform response over a wide listening area beyond what discrete two-way designs achieve, with a nominal 90-degree conical dispersion. A high-excursion rubber surround supports 70 watts continuous and 280 watts peak power handling, with rated maximum SPL of 110 dB peak at 8 ohms. The speaker includes both round and square baffles and grilles, letting integrators match different ceiling aesthetics from a single SKU. Integrated single-unit construction, a self-aligning clamp mount, and an extremely thin bezel keep installation fast and low-profile. The UV-resistant powder-coated steel grilles are removable for custom painting, and the Tannoy grille badge is removable for a clean look. The semi-matte white finish blends with light ceilings. Explore the full Tannoy collection at Creation Networks, or compare the larger Tannoy QCI 8DC for higher output.
Key Features
- Dual Concentric point-source driver — The tweeter sits at the center of the 6-inch cone for coherent, point-source constant-directivity coverage.
- Tulip Waveguide — Provides smooth, uniform frequency response over a wide area beyond discrete two-way designs.
- Glass-fibre cone — A high-excursion glass-fibre cone with rubber surround supports 70 W continuous and 280 W peak power handling.
- Round and square baffles included — Both baffle and grille shapes ship in the box for versatile ceiling aesthetics.
- Matched sonic signature — Shares the QCI range voicing so units can be combined for stereo, surround, or multi-room systems.
- Thin-bezel discreet install — A thin bezel and self-aligning clamp mount keep the finished ceiling low-profile and fast to fit.
- Paintable removable grilles — UV-resistant powder-coated steel grilles are removable for custom painting to match any ceiling.
Technical Specifications
| Frequency response (±3 dB) | 55 Hz – 20 kHz |
| Frequency response (-10 dB) | 35 Hz – 20 kHz |
| Sensitivity (1 W @ 1 m) | 86 dB |
| Nominal dispersion | 90° conical @ -6 dB point |
| Power handling – average | 70 W |
| Power handling – programme | 140 W |
| Power handling – peak | 280 W |
| Recommended amplifier power | 210 W @ 8 Ω |
| Nominal impedance (Lo Z) | 8 Ω |
| Rated maximum SPL (1 m, Lo Z) | 104 dB average, 110 dB peak |
| Crossover point | 2 kHz |
| LF transducer | 165.5 mm (6") |
| HF transducer | 25.4 mm (1") |
| Back can | BACK CAN S (steel, powder coated) |
| Baffle | Reflex-loaded UL94 V-0 rated ABS |
| Grille | Steel, weather-resistant coating |
| Clamping design | Security toggle clamp |
| Connectors | Phoenix Contact terminal block |
| Dimensions (H x W x D) | 98 x 241 x 241 mm (3.9 x 9.5 x 9.5") |
| Mounting depth | 90 mm (3.5") |
| Cutout dimensions | 202 mm (8") |
| Net weight | 2.6 kg |
| Included accessories | Circular and square baffles, circular and square grilles, circular and square paint masks, cutout template, 4 screws |
| Optional accessories | BACK CAN S; PMK 6" |
