Tannoy PCI SUB IW with BACK CAN Premium Dual 8 In-Wall Subwoofer - ...
Product Overview

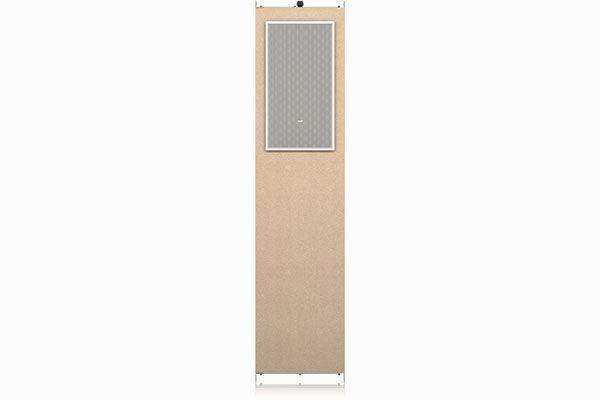

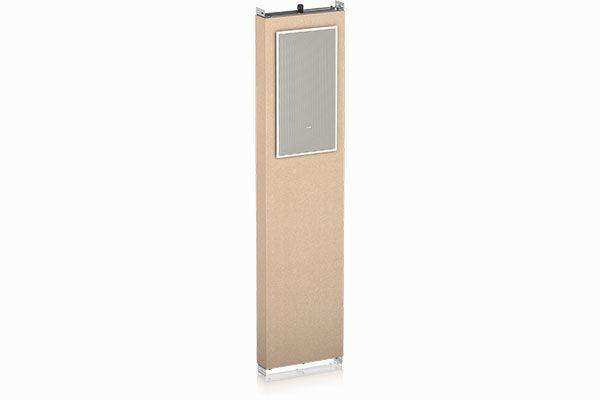

The Tannoy PCI SUB IW is a premium dual 8-inch in-wall subwoofer supplied with its wood pre-installation back can. Engineered to deliver clean, dynamic low-frequency output behind a thin, paintable bezel, it brings high-definition bass to high-end residential and commercial AV systems where a discreet in-wall installation is required. Its 800-watt peak power handling and rigid diecast chassis support demanding music and film playback.
Product Description
The PCI SUB IW is part of Tannoy's PCI series, designed to fit discreetly into modern interiors while delivering the performance of a dedicated subwoofer. Dual 8-inch woofers with rigid cones produce clean, dynamic bass, and a high-excursion design with high power handling provides the headroom for full-range music and film. A rigid diecast chassis improves low-frequency performance and durability in fixed installations. The extremely thin bezel keeps the installation discreet, and the included wooden pre-install back can kit lets integrators set the position during construction. The integrated single-unit chassis simplifies fitting, and a self-aligning clamp mounting system secures the subwoofer into the wall. The semi-matt white finish, powder-coated UV-resistant steel mesh grille, and removable paintable grille keep the unit unobtrusive against finished walls. This subwoofer is engineered to the same standards as Tannoy's flagship hi-fi and professional loudspeakers. Browse the full Tannoy collection for matching in-wall loudspeakers and amplifiers.
Key Features
- Dual 8-inch woofers — Two rigid-cone 8-inch drivers deliver clean, dynamic, high-definition bass for music and film.
- 800 W peak power handling — Rated at 200 W continuous and 800 W peak for substantial low-frequency headroom.
- Rigid diecast chassis — The diecast chassis improves bass performance and durability in permanent in-wall installations.

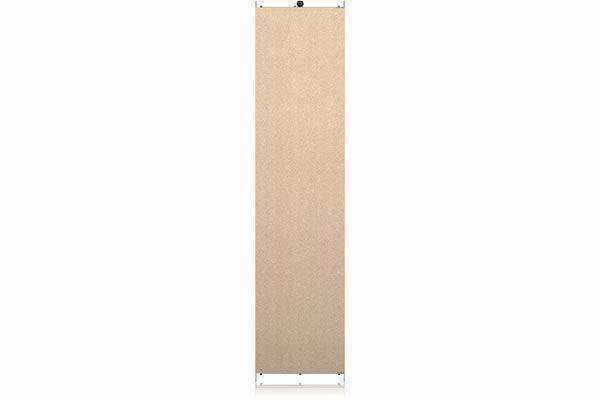

- Wood pre-install back can included — The supplied wooden back can kit allows position to be set during construction.
- Thin paintable bezel — An extremely thin bezel and removable paintable grille keep the installation discreet against finished walls.
- Self-aligning clamp mount — The security toggle clamp system speeds and secures in-wall installation.
- 8-ohm low-impedance input — Direct 8-ohm operation integrates with standard amplifier channels.
Typical Applications
- Boardroom
- Conference room
- Commercial meeting space
- Multi-purpose room
- House of worship
Technical Specifications
| Frequency response (±3 dB) | 100 Hz – 2 kHz |
| Frequency response (-10 dB) | 45 Hz – 2.3 kHz |
| Sensitivity (1 W @ 1 m) | 90 dB |
| Power handling (average / programme / peak) | 200 W / 400 W / 800 W |
| Recommended amplifier power | 600 W @ 8 Ω |
| Nominal impedance (Lo Z) | 8 Ω |
| Rated maximum SPL (average / peak) | 113 dB / 119 dB |
| Low frequency drivers | 2 x 219 mm (8") |
| Back can | Wood, with spray painting |
| Baffle | Reflex loaded UL94 V-0 rated ABS |
| Connectors | Phoenix Contact terminal block |
| Dimensions (H x W x D) | 1465 x 345 x 113 mm (57.7 x 13.6 x 4.5") |
| Hole cutout dimensions | 482.5 x 252.5 mm (19 x 9.94") |
| Net weight | 16.9 kg (37.2 lbs) |
Frequently Asked Questions
Does this listing include the back can?
Yes. This version (TA-PCI SUB IW/BC) ships with the wood pre-install back can kit included.
How many drivers does it use?
It uses dual 8-inch rigid-cone woofers in a single in-wall chassis.
What amplifier power is recommended?
Tannoy recommends 600 W at 8 ohms; the subwoofer handles 200 W continuous and 800 W peak.
Can the bezel be painted to match the wall?
Yes. The thin bezel and removable grille can be custom painted for a discreet finish.
What support is available?
Contact Creation Networks for system design assistance and a project quote.
