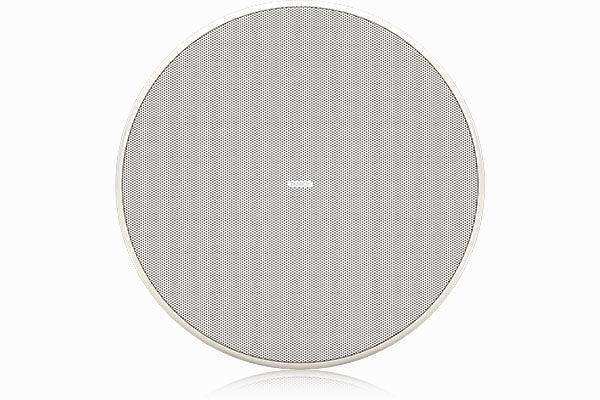

Tannoy PCI 8DC Premium 8" Dual Concentric Ceiling Loudspeaker (White) - TA-PCI 8DC-WH

Tannoy SKU: TA-PCI 8DC-WH
No reviews
Price:
$549.00

Description

Designed to fit seamlessly into your world, the new Tannoy PCI series is the perfect premium loudspeaker for modern living. Discover a beautiful blend of innovative technology combined with sophisticated good looks that will match any décor. State of the art driver materials and Tannoy’s Unique Dual Concentric driver technology combine to deliver music and film that is breathtakingly realistic and with phenomenal clarity.



  • Premium, high-definition loudspeaker for ceiling installation applications

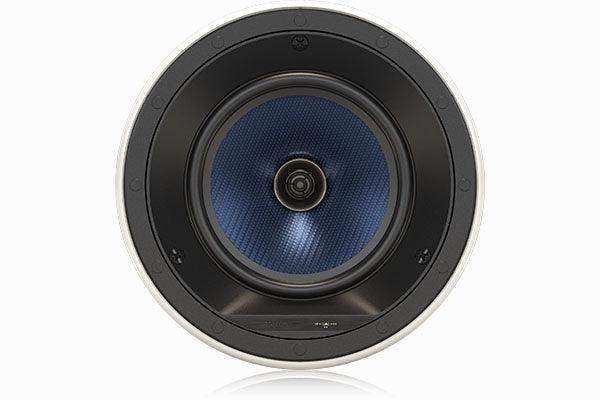

  • 8" Dual Concentric driver featuring TANNOY point-source constant directivity

  • Tulip Waveguide for a smooth, uniform frequency response over a wide area of coverage unachievable with discrete, two-way designs

  • Blue Kevlar* cone with high-excursion, rubber surround for high power handling

  • 3-way variable high-frequency level switch for customised performance preferences

  • 80 Watts continuous, 320 Watts peak power

  • Extremely thin bezel for discreet installation

  • Includes round & square baffles for versatile applications

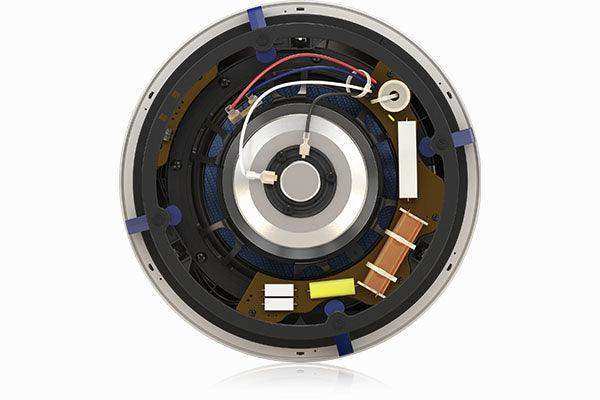

  • Rigid diecast chassis for improved bass performance and durable application

  • Integrated single unit construction for easy installation

  • Semi matt white finish fits unobtrusively in any environment

  • Powder coated UV resistant perforated steel mesh grille with dust protection

  • Removable grilles for custom painting

  • Self-aligning clamp mounting system

  • Removable TANNOY grille badge

  • Tannoy - Over 90 years of British sound heritage and innovation



Performance
Frequency response (±3 dB)

50 Hz – 20 kHz
Frequency response (-10 dB)

30 Hz – 20 kHz
Sensitivity (1 W @ 1m)

87 dB
Directivity factor (Q)

6.6 averaged 1 kHz to 10 kHz
Directivity index (DI)

8.2 averaged 1 kHz to 10 kHz
Power handling (IEC)
Average

80 W
Programme

160 W
Peak

320 W
Recommended amplifier power

240 W @ 8 Ω
Nominal Impedance (Lo Z)

8 Ω
Rated maximum SPL (1 m, Lo Z)

109 dB
Average

106 dB
Peak

112 dB
Crossover point

1.6 kHz
Coverage angles
500 Hz

180° horizontal, 145° vertical
1 kHz

117° horizontal, 135° vertical
2 kHz

85° horizontal, 99° vertical
4 kHz

124° horizontal, 141° vertical
Transducers
Low frequency diameter/ material/type

210 mm (8")
High frequency diameter/ material/type

25.4 mm (1")
Physical
Back can

Option 1 (BACK CAN S): Steel, with powder coating Option 2 (BACK CAN C2): High density expandable polystyrene (EPS)
Baffle

Refl ex loaded UL94 V-0 rated ABS
Grille

Steel, with weather resistant coating
Clamping design

Security toggle clamp
Connectors

Phoenix Contact terminal block
Dimensions (HxWxD)

290 x 290 x 143 mm (11.4 x 11.4 x 5.6")
Bezel dimensions

Circular: φ289 mm (11.4") Square: 290 x 290 mm (11.4 x 11.4")
Hole cutout dimensions

φ250 mm (9.8")
Net weight

3.9 kg (8.6 lbs)
Packed quantity

1
Included accessories

Square grille, square baffl e, circular grille, circular baffl e, circular paint mask, square paint mask, cutout template, screw
Optional accessories

Option 1: BACK CAN S Option 2: BACK CAN C2 Option 3: PMK 8
