Tannoy PCI 7DC IW 7" Dual Concentric In-Wall Loudspeaker - TA-PCI 7DC IW

Product Overview

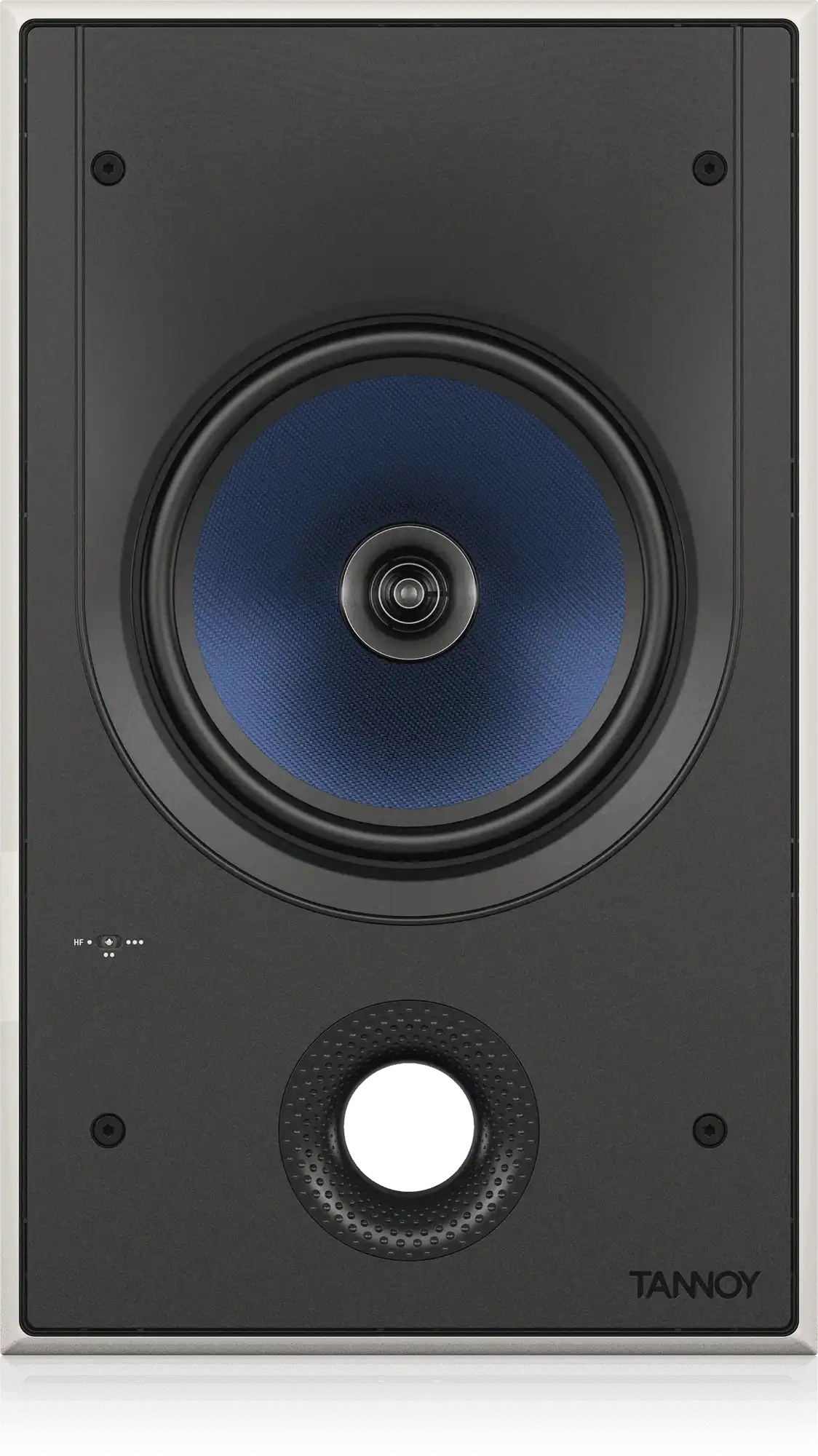

The Tannoy PCI 7DC IW 7-inch Dual Concentric in-wall loudspeaker is a premium, high-definition speaker engineered for discreet architectural installation in commercial and high-end residential spaces. Its 7" Dual Concentric point-source driver and Tulip Waveguide produce uniform, wide-area coverage that two-way designs cannot match. With a thin bezel and self-aligning clamp mounting system, it integrates cleanly into finished walls for boardrooms, meeting spaces, and houses of worship.

Product Description

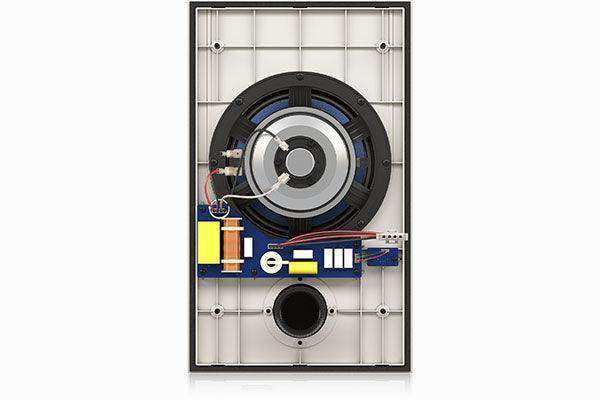

The PCI 7DC IW pairs a Blue Kevlar low-frequency cone with a high-excursion rubber surround and a coincident 1" high-frequency unit, delivering breathtakingly realistic music and program audio with phenomenal clarity. Because the high frequencies radiate from the acoustic center of the woofer, the speaker behaves as a true point source, giving consistent tonal balance across a wide listening area. A 3-way variable high-frequency level switch lets integrators tune the response to room acoustics and listener preference. The rigid diecast chassis improves bass performance and long-term durability in high-use installations.

Rated at 80 W continuous and 320 W peak into an 8-ohm load, the PCI 7DC IW suits low-impedance distributed systems in commercial meeting spaces and worship venues. The integrated single-unit construction and self-aligning clamp mounting system reduce labor during installation, while removable, paintable grilles allow the speaker to disappear into any decor. The powder-coated, UV-resistant perforated steel mesh grille with dust protection ensures a clean, durable finish. Browse the full Tannoy collection at Creation Networks, or compare the on-wall Tannoy QCI A1 Dual Concentric on-wall loudspeaker for surface-mount applications.

Key Features

• 7" Dual Concentric Driver — Tannoy point-source constant-directivity design places the tweeter at the acoustic center of the woofer for coherent, wide-area coverage.
• Tulip Waveguide — Provides a smooth, uniform frequency response over a wide coverage area that discrete two-way designs cannot achieve.
• Blue Kevlar Cone — High-excursion rubber surround supports high power handling and reliable long-term performance.
• 3-Way HF Level Switch — Lets integrators customize high-frequency output to match room acoustics and listener preference.
• 80 W Continuous / 320 W Peak — Delivers ample headroom on an 8-ohm low-impedance amplifier rated up to 240 W.
• Thin Bezel, Single-Unit Construction — Integrates discreetly into finished walls and speeds installation with a self-aligning clamp mounting system.

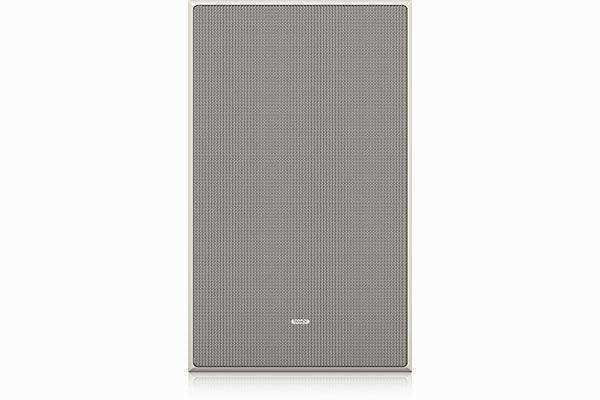

• Paintable, Removable Grille — Powder-coated UV-resistant perforated steel mesh with dust protection can be custom painted to match decor.

Typical Applications

• Boardroom
• Conference room
• House of worship
• Commercial meeting space
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Is the PCI 7DC IW a 70V/100V speaker or low impedance?
It is a low-impedance loudspeaker with an 8-ohm nominal impedance, driven directly by a power amplifier rather than a 70V/100V distributed line.

How does the Dual Concentric driver benefit a conference room install?
The point-source design delivers consistent tonal balance across off-axis seating positions, so participants hear even coverage regardless of where they sit.

Can the grille be painted to match the wall?
Yes. The grille is removable and a paint mask is included, allowing custom painting to match the surrounding finish.

What amplifier power is recommended?
Tannoy recommends up to 240 W at 8 ohms; size your amplifier channel accordingly for the coverage area.

Does it require a back can?
An optional BACK CAN PCI 7DC IW is available for applications requiring an enclosed rear volume or fire-rated installation. Contact our team for system design support.
