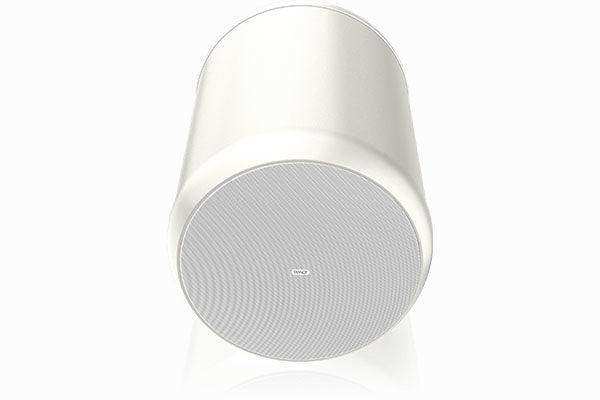

Tannoy OCV 8-WH 8" Coaxial Pendant Loudspeaker (White) - TA-OCV8-WH

TannoySKU: TA-OCV8-WH
No reviews

Price:
Sale price$449.00

Description

The OCV 8-WH is a 280-Watt high sensitivity pendant loudspeaker that delivers wide and consistent broadband directivity with enhanced intelligibility – plus the linear response of our legendary studio monitors. Engineered specifically for aesthetically sensitive applications where consistent high quality audio coverage is required, the OCV 8-WH is ideally suited for airport and ground transportation terminals, shopping malls, and large double or triple height commercial floors – without compromising clarity, intelligibility or Sound Pressure Level (SPL). OCV 8-WH loudspeakers provide a seamless sound signature within a multi-zoned environment that benefits from additional TANNOY installation loudspeakers.

  • Coaxial full range pendant loudspeaker for installation applications

  • 70 Watts continuous, 280 Watts peak power

  • 8" mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability

  • 1" ferrofluid cooled soft dome neodymium high frequency driver

  • Wide constant directivity dispersion for optimum coverage

  • UL 1480 certified for general signalling systems

  • UV and weather resistant UL 94 V-0 ABS front with plated steel fire can enclosure

  • Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input

  • Low insertion loss 60 W line transformer with easily accessible tapping switch

  • Optimised for Lab Gruppen low impedance LUCIA amplifiers with up to 8 OCV series loudspeakers per channel

  • All components weather resistant to IP64 for outdoor use

  • Semi matt white finish fits unobtrusively in any environment

  • Powder coated perforated steel mesh grille with dust protection

  • Quick and easy hanging system included for reduced installation time and cost

  • Weatherproof cable gland cover to protect Phoenix* connectors and tap selector switch

  • 10-Year Warranty Program*

  • Designed and engineered in the U.K.

Data Sheet

PERFORMANCE
Frequency Response (-3 dB) (1)

80 Hz - 20 kHz

Frequency Range (-10 dB) (1)

50 Hz - 30 kHz

System Sensitivity (1 W @ 1 m) (2)

90 dB

Dispersion (-6 dB)

80 degrees conical

Crossover

4.5 kHz - 3rd order LF, 2nd order HF

Directivity Factor (Q)

14.4 averaged 1 kHz to 6.3 kHz

Directivity Index (DI)

11.6 averaged 1 kHz to 6.3 kHz

Rated Maximum SPL (2)

Average: 108 dB
Peak: 114 dB

Power Handling

Average: 70 W
Programme: 140 W
Peak: 280 W

Recommended Amplifier Power

140 W @ 16 Ohms

Nominal Impedance

16 Ohms

Transformer Taps (rear rotary switch)

70 V: 60 W / 30 W / 15 W / 7.5 W / OFF & Low Impedance operation
100 V: 60 W / 30 W / 15 W / OFF & Low Impedance operation

DISTORTION
10% Full Power (10.6 V)

2nd Harmonic 250 Hz: 0.56%, 1 kHz: 0.20%, 10 kHz: 1.19%
3rd Harmonic 250 Hz: 0.11%, 1 kHz: 0.24%, 10 kHz: 0.15%

1% Full Power (3.35 V)

2nd Harmonic 250 Hz: 0.14%, 1 kHz: 0.08%, 10 kHz: 0.44%
3rd Harmonic 250 Hz: 0.16%, 1 kHz: 0.18%, 10 kHz: 0.09%

TRANSDUCERS
Low Frequency

Coaxial 200 mm (8.00") mineral loaded cone material

High Frequency

25 mm (1.00")

CONSTRUCTION
Enclosure

ABS / Steel

Grille

Steel, plated and powder coat painted

Connectors

Euroblock type removable locking connector with screw terminals with "loop through" facility

Transformer setting

Rotary switch

Safety Agency Ratings

UL-1480, CE

Bezel Diameter

302 mm (11.89")

Overall Length

492.5 mm (19.39")

Net Weight (ea)

7.8 kg (17.2 lbs)

Shipping Weight

9.8 kg (21.6 lbs)

Packed Quantity

1

Finish
Colour

White (Ral 9003)
Black (Ral 9004)
