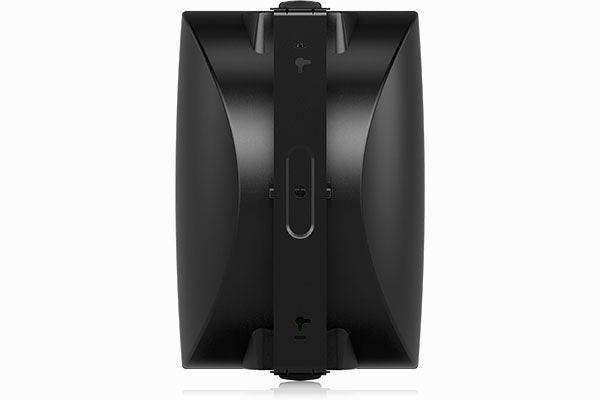

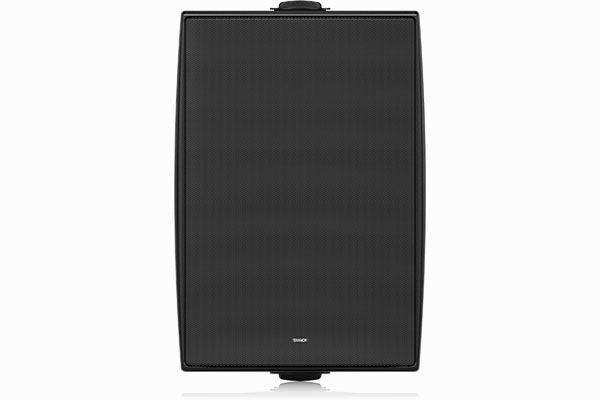

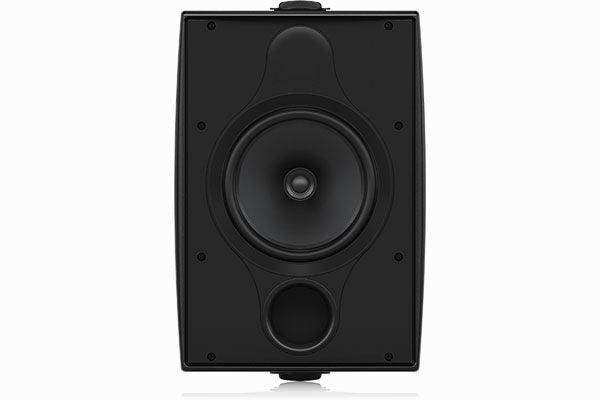

Tannoy DVS 8T 8" Coaxial Surface-Mount Loudspeaker with Transformer (Black,Pair) - TA-DVS8T-BK

Tannoy SKU: TA-DVS8T-BK
No reviews
Price:
$718.00

Description

(Sold as a pair)

DVS 8T

Designed to excel in a wide variety of sound reinforcement applications, the full range DVS 8T is an ultra-compact 280-Watt surface mount loudspeaker that provides both exceptional value and inspiring acoustic performance. The DVS 8T is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments, and houses of worship.



  • Full range surface-mount loudspeaker for indoor and outdoor installation applications

  • 70 Watts continuous, 280 Watts peak power

  • 8" mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability

  • 0.75" ferrofluid cooled soft dome neodymium high frequency driver

  • 80° constant directivity dispersion for optimum coverage

  • UL 1480 certified for general signalling systems

  • UV and weather resistant UL 94 V-0 ABS enclosure

  • Multiple transformer taps for 70 V and 100 V line systems

  • Low insertion loss 60 W line transformer with easily accessible tapping switch

  • All components weather resistant to IP64 for outdoor use

  • Stylish durable enclosure in a semi matt black paint finish fits unobtrusively in any environment

  • Painted perforated aluminium mesh grille with dust protection

  • Yoke bracket included for ease of installation

  • Phoenix* connectors input and link output

  • 10-Year Warranty Program*

  • Designed and engineered in the U.K.

Data Sheet



Performance
Frequency response (-3 dB)<sup>1</sup>

75 Hz - 20 kHz
Frequency response (-10 dB)<sup>1</sup>

60 Hz - 30 kHz
System sensitivity (1 W @ 1 m)<sup>2</sup>

90 dB
Dispersion (-6 dB)

80 degrees conical
Transducers

Coaxial
Low frequency

200 mm (8.00") mineral loaded cone material
High frequency

20 mm (0.79)
Crossover

3.4 kHz - 2nd order LF, 2nd order HF
Directivity (Q)

12.3 averaged 1 kHz to 10 kHz
Directivity (DI)

10.0 averaged 1 kHz to 10 kHz
Rated maximum SPL <sup>2</sup>

108 dB (average)
114 dB (peak)
Transformer Version
Transformer taps
Maximum wire gauge for connector

2.5 mm CSA (AWG12)
Safety Agency Ratings

UL-1480, CE
Power Handling
Average

70 W
Programme

140 W
Peak

280 W
Recommended amplifier power

140 W @ 6 Ohms
Nominal impedance

6 Ohms
Construction
Enclosure

ABS
Grille

Aluminium, painted
Packed quantity

2
Dimensions (H x W x D)

451.8 x 290.0 x 296.0 mm
(17.79 x 11.42 x 11.65")
