Tannoy DVS 8-WH 8" Coaxial Surface-Mount Loudspeaker (White,Pair) - TA-DVS8-WH

TannoySKU: TA-DVS8-WH
No reviews

Price:
Sale price$698.00

Description

(Sold as a pair)

Designed to excel in a wide variety of sound reinforcement applications, the full range DVS 8-WH is an ultra-compact 280-Watt surface mount loudspeaker that provides both exceptional value and inspiring acoustic performance. The DVS 8-WH is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments, and houses of worship.



  • Full range surface-mount loudspeaker for indoor and outdoor installation applications

  • 70 Watts continuous, 280 Watts peak power

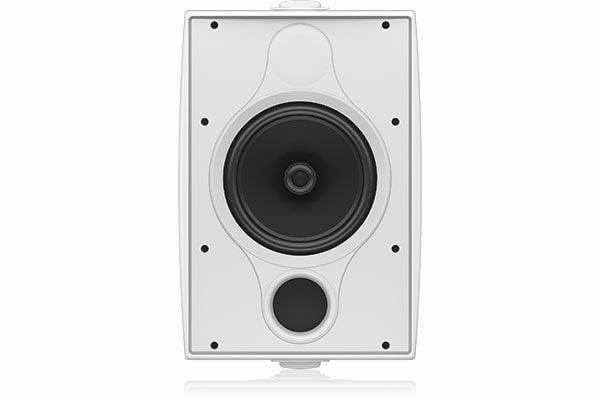

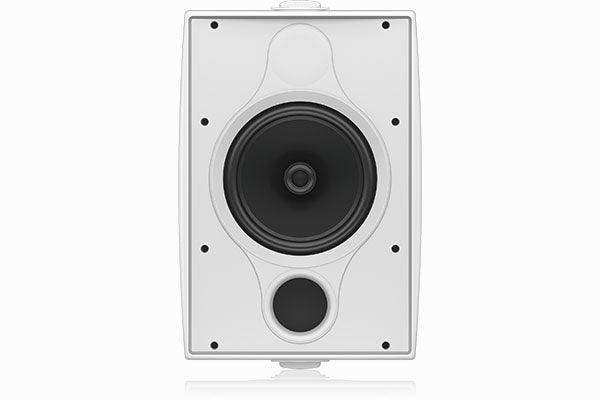

  • 8" mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability

  • 0.75" ferrofluid cooled soft dome neodymium high frequency driver

  • 80° constant directivity dispersion for optimum coverage

  • UL 1480 certified for general signalling systems

  • UV and weather resistant UL 94 V-0 ABS enclosure

  • 6 Ohm direct input for low impedance applications

  • All components weather resistant to IP64 for outdoor use

  • Stylish durable enclosure in a semi matt white paint finish fits unobtrusively in any environment

  • Painted perforated aluminium mesh grille with dust protection

  • Yoke bracket included for ease of installation

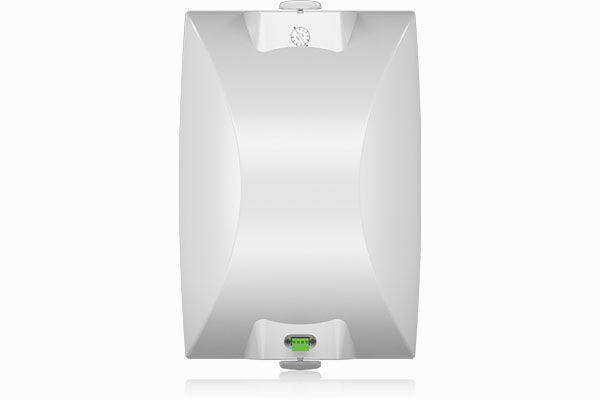

  • Phoenix* connectors input and link output

  • 10-Year Warranty Program*

  • Designed and engineered in the U.K.

Data Sheet

Performance
Frequency response (-3 dB)<sup>1</sup>

75 Hz - 20 kHz

Frequency response (-10 dB)<sup>1</sup>

60 Hz - 30 kHz

System sensitivity (1 W @ 1 m)<sup>2</sup>

90 dB

Dispersion (-6 dB)

80 degrees conical

Transducers

Coaxial

Low frequency

200 mm (8.00") mineral loaded cone material

High frequency

20 mm (0.79)

Crossover

3.4 kHz - 2nd order LF, 2nd order HF

Directivity (Q)

12.3 averaged 1 kHz to 10 kHz

Directivity (DI)

10.0 averaged 1 kHz to 10 kHz

Rated maximum SPL 2

108 dB (average)
114 dB (peak)

Non Transformer Version
Maximum wire gauge for connector

2.5 mm CSA (AWG12)

Safety Agency Ratings

UL-1480, CE

Power Handling
Average

70 W

Programme

140 W

Peak

280 W

Recommended amplifier power

140 W @ 6 Ohms

Nominal impedance

6 Ohms

Construction
Enclosure

ABS

Grille

Aluminium, painted

Connectors

Euroblock type removable locking connector with screw terminals with “loop through” facility

Supplied accessories

Yoke bracket

Packed quantity

2

Dimensions (H x W x D)

451.8 x 290.0 x 296.0 mm
(17.79 x 11.42 x 11.65")
