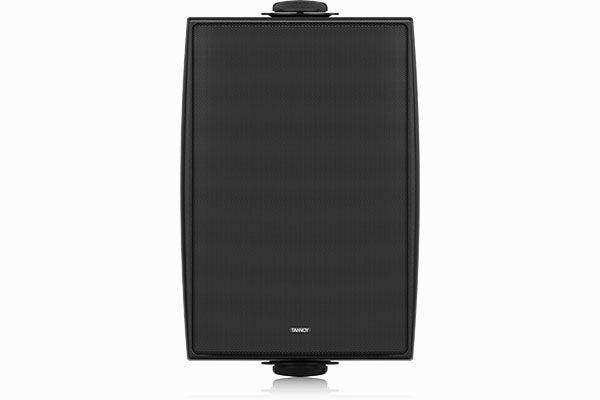

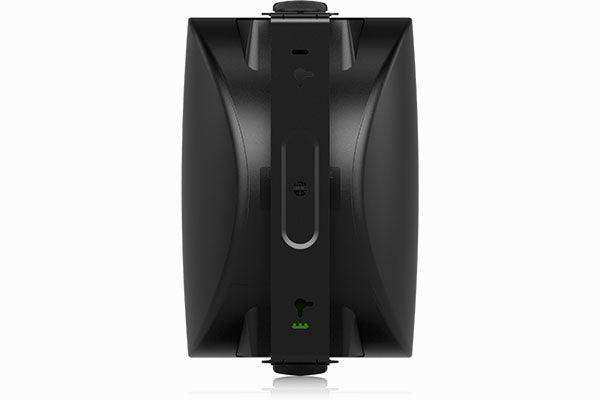

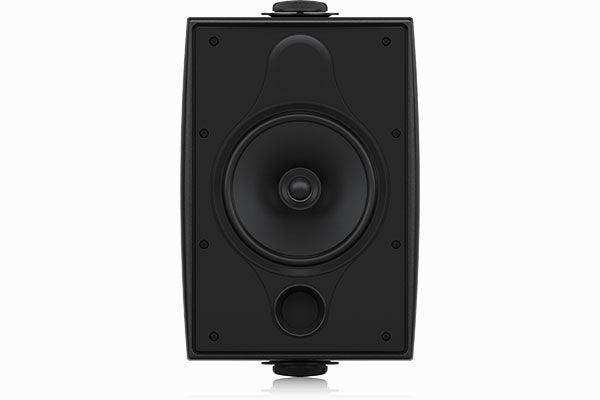

Tannoy DVS 6 6" Coaxial Surface-Mount Loudspeaker (Black,Pair) - TA-DVS6-BK

TannoySKU: TA-DVS6-BK
No reviews
Price:
$458.00

Description

(Sold as a pair)

Designed to excel in a wide variety of sound reinforcement applications, the full range DVS 6 is an ultra-compact 240-Watt surface mount loudspeaker that provides both exceptional value and inspiring acoustic performance.
The DVS 6 is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments, and houses of worship.



Features

  • Full range surface-mount loudspeaker for indoor and outdoor installation applications

  • 60 Watts continuous, 240 Watts peak power

  • 6" mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability

  • 0.75" ferrofluid cooled soft dome neodymium high frequency driver

  • 90° constant directivity dispersion for optimum coverage

  • UL 1480 certified for general signalling systems

  • UV and weather resistant UL 94 V-0 ABS enclosure

  • 6 Ohm direct input for low impedance applications

  • All components weather resistant to IP64 for outdoor use

  • Stylish durable enclosure in a semi matt black paint finish fits unobtrusively in any environment

  • Painted perforated aluminium mesh grille with dust protection

  • Yoke bracket included for ease of installation

  • Phoenix* connectors input and link output

  • 10-Year Warranty Program*

  • Designed and engineered in the U.K.

Data Sheet

Performance
Frequency response (-3 dB)1

80 Hz - 20 kHz
Frequency response (-10 dB)1

65 Hz - 30k Hz
System sensitivity (1 W @ 1 m)2

88 dB
Dispersion (-6 dB)

90 degrees conical
Transducers

Coaxial
Low frequency

165mm (6.5") mineral loaded cone material
High frequency

20 mm (0.79)
Crossover

4.3 kHz - 2nd order LF, 2nd order HF
Directivity (Q)

10.6 averaged 1 kHz to 10 kHz
Directivity (DI)

9.6 averaged 1 kHz to 10 kHz
Rated maximum SPL 2

105 dB (average)
111 dB (peak)
Non Transformer Version
Maximum wire gauge for connector

2.5 mm CSA (AWG12)
Safety Agency Ratings

UL-1480, CE
Power Handling
Average

60 W
Programme

120 W
Peak

240 W
Recommended amplifier power

120 W @ 6 Ohms
Nominal impedance

6 Ohms
Construction
Enclosure

ABS
Grille

Aluminium, painted
Connectors

Euroblock type removable locking connector with screw terminals with “loop through” facility
Supplied accessories

Yoke bracket
Packed quantity

2
Dimensions (H x W x D)

340.5 x 212.2 x 216.5 mm
(13.41 x 8.36 x 8.52")
