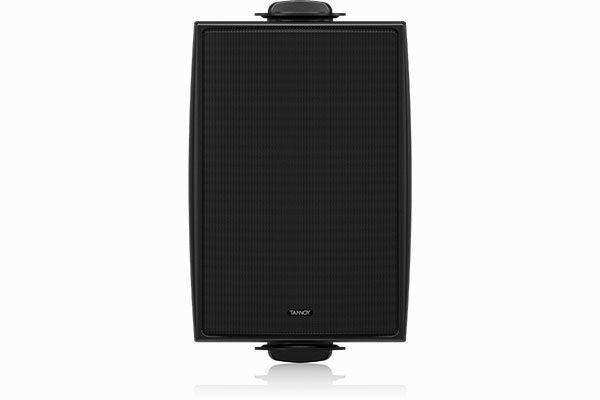

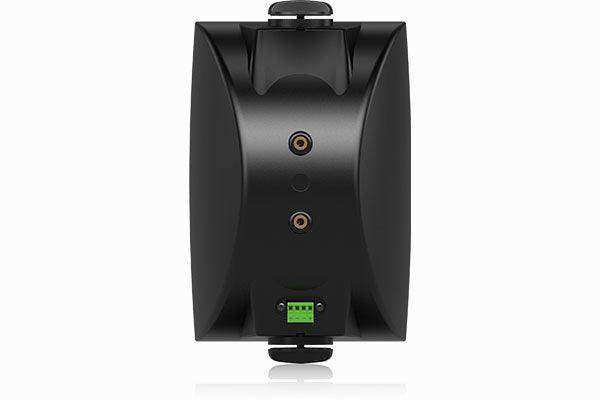

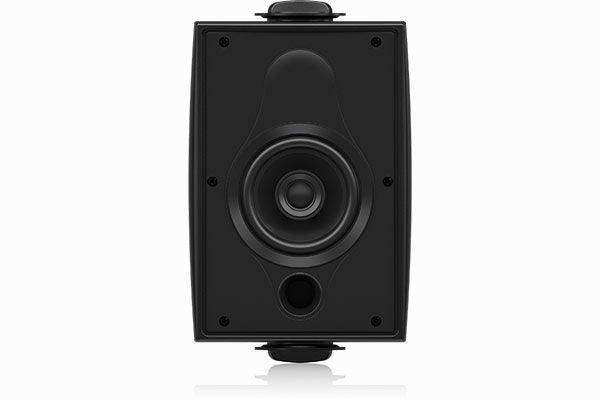

Tannoy DVS 4 4" Coaxial Surface-Mount Loudspeaker (Black,Pair) - TA-DVS4-BK

TannoySKU: TA-DVS4-BK
No reviews

Price:
Sale price$318.00

Description

Designed to excel in a wide variety of sound reinforcement applications, the full range DVS 4 is an ultra-compact 160-Watt surface mount loudspeaker that provides both exceptional value and inspiring acoustic performance.
The DVS 4 is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments, and houses of worship.



  • Full range surface-mount loudspeaker for indoor and outdoor installation applications

  • 40 Watts continuous, 160 Watts peak power

  • 4" mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability

  • 0.75" ferrofluid cooled soft dome neodymium high frequency driver

  • 110° constant directivity dispersion for optimum coverage

  • UL 1480 certified for general signalling systems

  • UV and weather resistant UL 94 V-0 ABS enclosure

  • 6 Ohm direct input for low impedance applications

  • All components weather resistant to IP64 for outdoor use

  • Stylish durable enclosure in a semi matt black paint finish fits unobtrusively in any environment

  • Painted perforated aluminium mesh grille with dust protection

  • Yoke bracket included for ease of installation

  • Phoenix* connectors for input and link output

  • 10-Year Warranty Program*

  • Designed and engineered in the U.K.

Data Sheet



Performance
Frequency response (-3 dB)1

75 Hz - 20 kHz

Frequency response (-10 dB)1

60 Hz - 30 kHz

System sensitivity (1 W @ 1 m)2

84 dB

Dispersion (-6 dB)

110 degrees conical

Transducers

Coaxial

Low frequency

100 mm (4.00") mineral
loaded cone material

High frequency

20 mm (0.79)

Crossover

3.9 kHz - 2nd order LF, 2nd order HF

Directivity (Q)

6.5 averaged 1 kHz to 10 kHz

Directivity (DI)

5.3 averaged 1 kHz to 10 kHz

Rated maximum SPL 2

100 dB (average)
106 dB (peak)

Non Transformer Version
Maximum wire gauge for connector

2.5 mm CSA (AWG12)

Safety Agency Ratings

UL-1480, CE

Power Handling
Average

40 W

Programme

80 W

Peak

160 W

Recommended amplifier power

80 W @ 6 Ohms

Nominal impedance

6 Ohms

Construction
Enclosure

ABS

Grille

Aluminium, painted

Connectors

Euroblock type removable locking connector with screw terminals with “loop through” facility

Supplied accessories

Yoke bracket

Packed quantity

2

Dimensions (H x W x D)

277.0 x 170.4 x 165.6 mm
(10.91 x 6.71 x 6.52")
