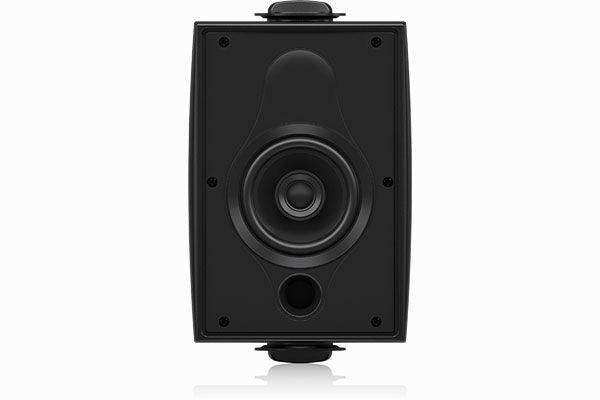

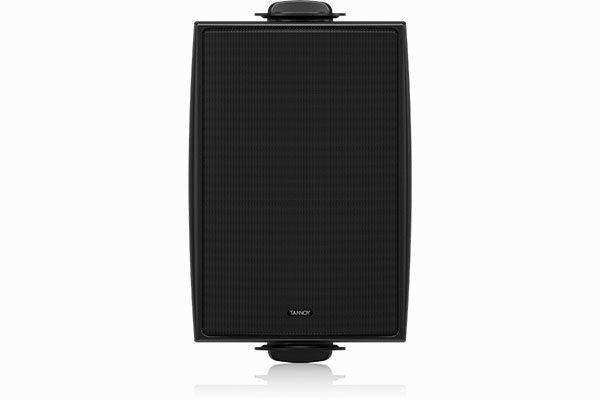

Tannoy DVS 4T 4" Coaxial Surface-Mount Loudspeaker with Transformer (Black,Pair) - TA-DVS4T-BK

Product Overview

The Tannoy DVS 4T is an ultra-compact 4-inch coaxial surface-mount loudspeaker, sold as a pair, with a built-in 70V/100V transformer for distributed audio. It is designed for background and foreground music in retail stores, restaurants, bars, hotels, and corporate AV spaces, indoors or out. With 110-degree constant-directivity coverage and IP64-rated components, this surface-mount speaker pairs discreet styling with reliable performance in exposed locations.

Product Description

This listing is for a pair of DVS 4T loudspeakers. Each full-range unit combines a 4-inch mineral-loaded polypropylene driver with a nitrile rubber surround and a 0.75-inch ferrofluid-cooled neodymium soft-dome high-frequency driver, delivering clear, even coverage from a compact enclosure. Rated at 40 watts continuous and 160 watts peak, the DVS 4T provides exceptional value for stereo or mono background and foreground music. A low-insertion-loss 30W line transformer offers multiple taps for 70V and 100V distributed systems, with an accessible tap-selection switch. All components are weather resistant to IP64, and the UV-resistant UL 94 V-0 ABS enclosure with a painted perforated aluminium grille suits both indoor and outdoor installation. The loudspeaker is UL 1480 certified for general signalling, allowing it to double as a paging speaker. An included yoke bracket simplifies aiming and mounting, while Phoenix connectors with input and link output support fast daisy-chained wiring. The semi-matte black finish keeps the unit unobtrusive in finished environments. Explore the full Tannoy collection at Creation Networks to match the DVS 4T with compatible amplifiers and subwoofers.

Key Features

• Ultra-compact coaxial design — A 4-inch polypropylene driver and 0.75-inch neodymium tweeter deliver full-range sound from a small surface-mount enclosure.
• Built-in 70V/100V transformer — A low-insertion-loss 30W line transformer with accessible taps integrates the speaker into distributed audio systems.
• IP64 weather resistance — All components are rated to IP64, allowing reliable indoor and sheltered outdoor installation.
• 110-degree constant directivity — Wide, consistent dispersion provides even coverage and reduces the number of units needed.
• UL 1480 signalling certification — Certified for general signalling, making it suitable for paging alongside music playback.
• Included yoke bracket — A supplied yoke bracket allows quick mounting and precise aiming during installation.

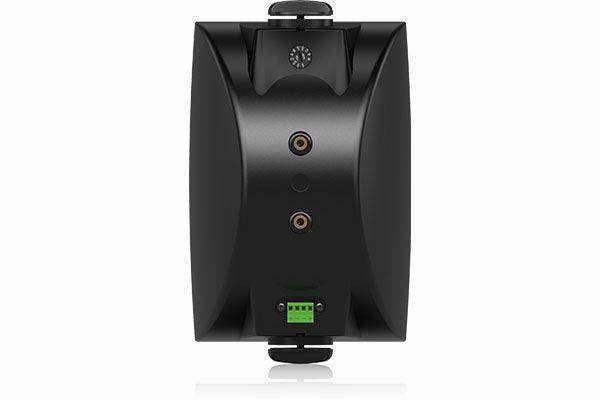

• Phoenix input and link output — Pluggable connectors with a link output speed daisy-chained wiring across multiple speakers.
• 10-year warranty program — Backed by Tannoy's long-term warranty for dependable commercial service.

Typical Applications

• Commercial meeting space
• Multi-purpose room
• House of worship
• Training room

Technical Specifications

Frequently Asked Questions

Is the DVS 4T sold individually or as a pair?
This listing is for a pair of DVS 4T loudspeakers.

Can it be installed outdoors?
Yes. All components are rated to IP64 and the enclosure is UV resistant, so it is suitable for sheltered outdoor locations as well as indoor use.

Does it work on a 70V or 100V distributed system?
Yes. It has a built-in 30W line transformer with multiple 70V and 100V taps for constant-voltage systems.

Can speakers be daisy-chained?
Yes. Phoenix connectors provide both an input and a link output, simplifying daisy-chained wiring across multiple units.

What support is available for system design?
Creation Networks can advise on tap settings, amplifier sizing, and coverage layout. Contact us for a project quote.
