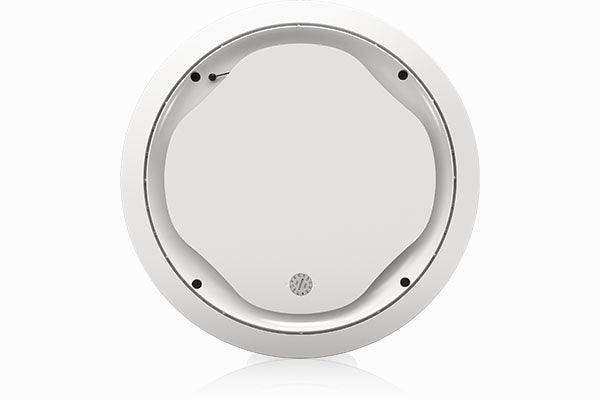

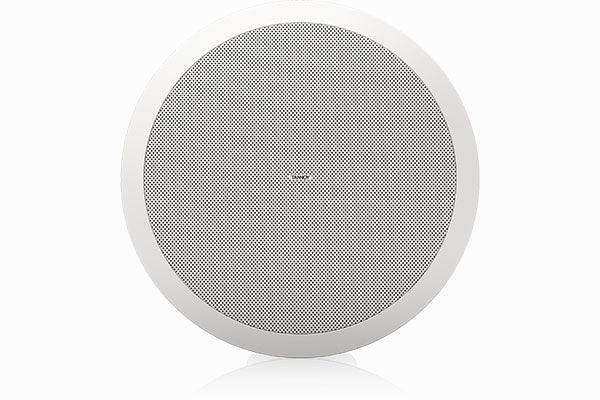

Tannoy CVS 801S 8" Ceiling Subwoofer Loudspeaker (White,Pair) - TA-CVS 801S-WH

Product Overview

The Tannoy CVS 801S is an 8-inch ceiling subwoofer that adds extended low-frequency output to background and foreground music systems in commercial installations. Sold as a pair in white, this ceiling-mounted subwoofer delivers the power handling, deep bass, and low distortion usually found in more expensive products, making it well suited to restaurants, hotels, houses of worship, and commercial spaces. With 70V/100V transformer taps, UL 1480 and UL 2043 certification, and an acoustic low-pass baffle that needs no external crossover, it integrates cleanly into distributed ceiling audio.

Product Description

The CVS 801S extends the low end of distributed ceiling systems with an 8" polypropylene long-excursion driver fitted with a butyl rubber surround for durability and long-term reliability. Rated at 100 W continuous and 400 W peak, it produces extended deep bass to round out background and foreground music without the size or cost of a dedicated subwoofer cabinet. An acoustic low-pass baffle design lets the subwoofer operate without an external crossover, which simplifies system design and amplifier configuration.

The CVS 801S accepts multiple 70V and 100V transformer taps or an 8-ohm direct input, with a low-insertion-loss 80 W line transformer and an accessible front tap switch. Its construction combines a UV- and weather-resistant UL 94 V-0 ABS front with a plated-steel fire-can enclosure, and UL 1480 and UL 2043 certification make it appropriate for fire-protected signalling and air-handling plenum spaces. A steel cover and strain-relief clamp accommodate fire-rated cable, while an included C-ring and ceiling tile rails support secure mounting in standard ceilings. The semi-matte white finish and powder-coated aluminum grille keep it unobtrusive. Browse the full Tannoy collection at Creation Networks, or pair it with the CMS 803DC ceiling loudspeaker for a full-range ceiling system.

Key Features

• 8" long-excursion driver — The polypropylene cone with butyl rubber surround delivers extended deep bass with durability and long-term reliability.
• 400 W peak power handling — Rated 100 W continuous and 400 W peak for reinforcing low frequencies in music systems.
• No external crossover needed — An acoustic low-pass baffle design allows the subwoofer to operate without an outboard crossover, simplifying system design.
• 70V/100V and 8-ohm operation — Multiple transformer taps support distributed line systems, with 8-ohm direct input for low-impedance use.
• UL 1480 and UL 2043 certified — Certification for fire-protected signalling and air-handling plenum spaces supports code-compliant installs.

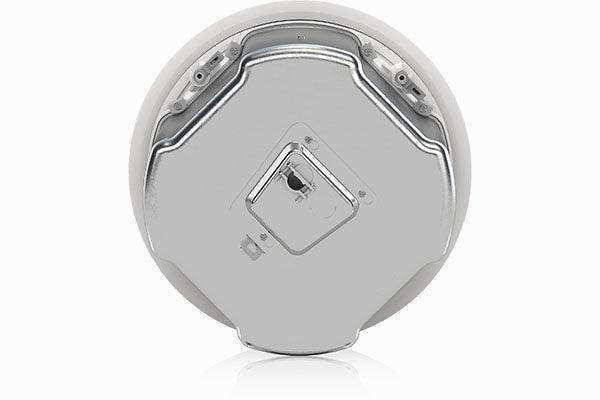

• Fire-can enclosure — A UL 94 V-0 ABS front with plated-steel fire can, plus a steel cover and strain relief for fire-rated cable, support life-safety installations.
• Tool-friendly mounting — An included C-ring and ceiling tile rails secure the subwoofer in tile or drywall ceilings.
• 10-year warranty program — Designed and engineered in the U.K. and backed by Tannoy's extended warranty.

Typical Applications

• House of worship
• Commercial meeting space
• Multi-purpose room
• Conference room

Technical Specifications

Frequently Asked Questions

Does the CVS 801S require an external crossover?
No. Its acoustic low-pass baffle design allows it to operate without an outboard crossover, simplifying integration with full-range ceiling speakers.

Does it run on 70V/100V distributed systems?
Yes. It offers multiple 70V and 100V transformer taps and can also be driven at 8 ohms via direct low-impedance input.

Can it be installed in a plenum ceiling?
Yes. It is UL 2043 certified for air-handling spaces and UL 1480 certified for fire-protected signalling systems.

What loudspeakers does it pair with?
It is designed to add low-frequency extension to distributed ceiling music systems and pairs well with full-range Tannoy ceiling loudspeakers.

Is it sold individually or as a pair?
This listing is for a pair. Our AV team can size subwoofer coverage for your space and provide a project quote.
