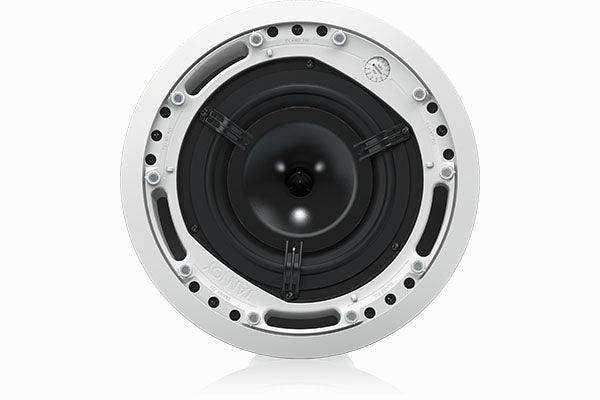

Tannoy CMS 803DC Q 8" Full Range Ceiling Loudspeaker with Dual Concentric Driver (Pair) - TA-CMS803DC-Q

TannoySKU: CMS 803DC Q
No reviews

Price:
Sale price$1,098.00

Description

(Sold as a pair)

The CMS 803DC Q is a full bandwidth 360-Watt high sensitivity loudspeaker that utilises our third generation Ceiling Monitor System technology (CMS 3.0). The “Q” variant of CMS 803DC is specifically designed for high-ceiling applications, incorporating an extended waveguide design with a tight, uniform 70-degree conical dispersion pattern. Thanks to an all-new proprietary 8" Dual Concentric point-source driver with Omnimagnet technology on a Torus Ogive Waveguide, the UL certified CMS 803DC Q delivers more consistent broadband directivity with enhanced intelligibility – plus highly accurate and linear response.




  • Full range ceiling loudspeaker for installation applications

  • 90 Watts continuous, 360 Watts peak power

  • Next generation 8" Dual Concentric driver featuring Omnimagnet technology

  • Q-Centric waveguide for tighter vertical or horizontal pattern control

  • Torus Ogive waveguide for improved high frequency response and directivity

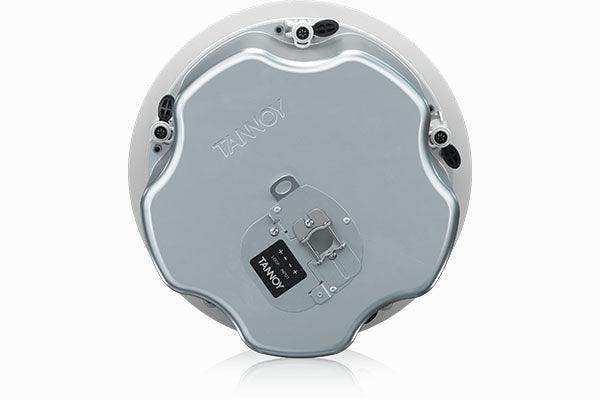

  • Blind Mount version supplied with acoustically enhanced zinc plated steel back can

  • Integrated single unit construction for ease of installation

  • UL 1480 certified for general signalling systems

  • UL 2043 certified for air-handling spaces

  • Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input

  • Low insertion loss 60 W line transformer with easily accessible tapping switch

  • Optimised for Lab Gruppen low impedance LUCIA amplifiers with up to 8 CMS series loudspeakers per channel

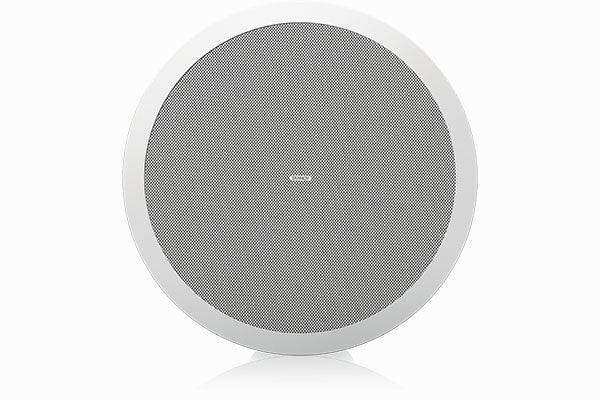

  • Semi matt white finish fits unobtrusively in any environment

  • Powder coated UV resistant perforated steel mesh grille with dust protection

  • Removable magnetic grille for custom painting

  • Optional ARCO designer grilles available for minimal architectural impact

  • Self-aligning 5 way clamp mounting system

  • Mounting C-ring and ceiling tile rails included

  • 10-Year Warranty Program*

  • Designed and engineered in the U.K.

Data Sheet



Performance
Frequency response (-3 dB) <sup>(1)</sup>

47 Hz - 30 kHz

Frequency range (-10 dB) <sup>(1)</sup>

40 Hz - 35 kHz BM Backcan

Frequency range (-10 dB) <sup>(1)</sup>

41 Hz - 35 kHz PI Backcan

System sensitivity (1 W @ 1 m) <sup>(2)</sup>

93 dB (1 W = 4 V for 16 Ohms)

Nominal coverage angle

60 degrees conical

Power handling (3)
Rated maximum SPL
Transformer taps (via front rotary switch)
Transducers
Dual concentric point source driver

1 x 200 mm (8.0") Dual Concentric driver, using Omnimagnet technology

Low frequency

44 mm (1.75") voice coil, treated multi fiber paper pulp cone

High frequency

25 mm (1.00") PEI dome

Physical
Enclosure
Safety features

Safety ring located at rear of enclosure for load bearing safety bond

Clamping design

Security toggle clamp Min / Max clamping range 9.5 mm (0.37") / 60 mm (2.36") Recommended clamp torque: 1.5 Nm

Backcan options
Cable entry options

Cable clamp & squeeze connector for conduit up to 22 mm

Conduit knockouts on PI Backcan

Connectors

Removable locking connector with screw terminals with “loop through” facility

Compliance

UL-1480, UL-2043, CE

Physical
Dimensions
Net weight (ea)

8.5 kg (18.74 lbs)

Included accessories

C-Ring, tile-bridge kit, paint mask, cut-out template, grille

Optional accessories

Plaster (mud) ring, Arco grille

Packed quantity

2
