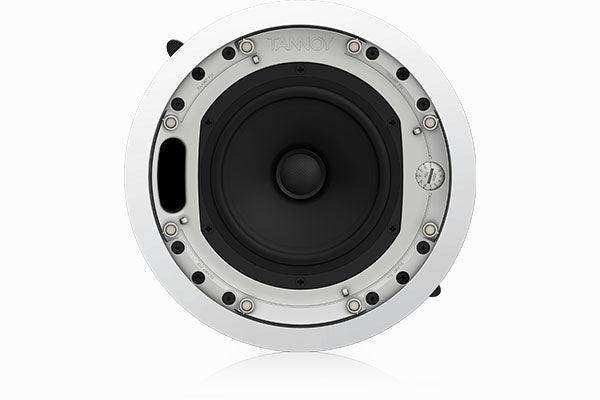

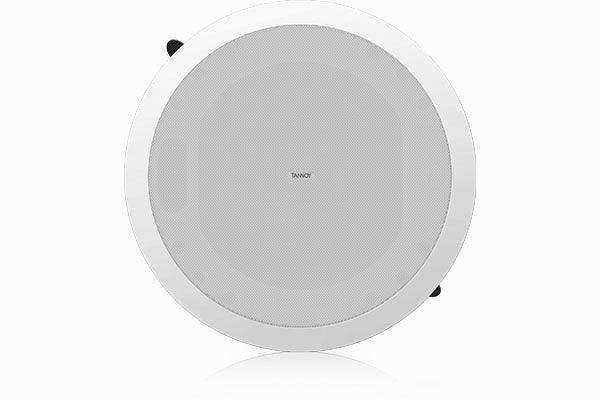

Tannoy CMS 603ICT BM 6" Full Range Ceiling Loudspeaker with ICT Driver (Blind-Mount,Pair) - TA-CMS603ICT-BM
Tannoy CMS 603ICT BM 6" Full Range Ceiling Loudspeaker with ICT Driver (Blind-Mount,Pair) - TA-CMS603ICT-BM is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Tannoy CMS 603ICT BM 6" Full Range Ceiling Loudspeaker with IC...
Description
(Sold as a pair)
CMS 3.0 CMS 603ICT BM
The CMS 603ICT BM is a wide bandwidth 240-Watt high sensitivity loudspeaker that utilises our third generation Ceiling Monitor System technology (CMS 3.0). Thanks to an all-new proprietary 6" ICT (Inductive Coupling Technology) point source driver with extended frequency range, the UL certified CMS 603ICT BM delivers consistent broadband directivity with enhanced intelligibility. ICT drivers provide exceptional long-term reliability – and are ideal for constant-usage applications.
Features
-
Full range ceiling loudspeaker for installation applications
-
60 Watts continuous, 240 Watts peak power
-
6" ICT (Inductive Coupling Technology) point source driver for extended frequency range
-

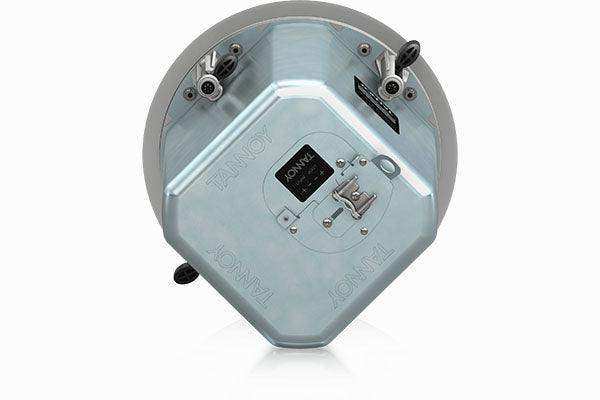

Blind Mount version supplied with acoustically enhanced zinc plated steel back can
-
Integrated single unit construction for ease of installation
-
High durability design for constant heavy usage in demanding applications
-
UL 1480 certified for general signalling systems
-
UL 2043 certified for air-handling spaces
-
Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
-
Low insertion loss 60 W line transformer with easily accessible tapping switch
-
Optimised for Lab Gruppen low impedance LUCIA amplifiers with up to 8 CMS series loudspeakers per channel
-
Semi matt white finish fits unobtrusively in any environment
-
Powder coated UV resistant perforated steel mesh grille with dust protection
-
Removable magnetic grille for custom painting
-
Optional ARCO designer grilles available for minimal architectural impact
-
Self-aligning 4 way clamp mounting system
-
Mounting C-ring and ceiling tile rails included
-
10-Year Warranty Program*
-
Designed and engineered in the U.K.
Specifications
Performance
| Frequency response (-3 dB) <sup>(1)</sup> |
78 Hz - 22 kHz |
| Frequency range (-10 dB) <sup>(1)</sup> |
51 Hz - 24 kHz |
| System sensitivity (1 W @ 1 m) <sup>(2)</sup> |
91 dB (1 W = 4 V for 16 Ohms) |
| Nominal Coverage Angle |
90 degrees conical |
| Coverage Angle (1 kHz to 6 kHz) |
92 degrees |
| Directivity Factor (Q) |
7.1 averaged 1 kHz to 6 kHz |
| Directivity Index (DI) |
7.9 averaged 1 kHz to 6 kHz |
| Power Handling <sup>(3)</sup> | |
| Recommended Amplifier Power |
120 W @ 16 Ohms |
| Nominal Impedance (Lo, Z) |
16 Ohms |
| Rated maximum SPL | |
| Transformer Taps (via front rotary switch) | |
| Crossover |
7 kHz inductively coupled |
Transducers
| Low Frequency |
165 mm (6.50") mineral loaded polypropylene |
| High Frequency |
ICT aluminium dome |
Physical
| Enclosure | |
| Safety Features |
Safety ring located at rear of enclosure for load bearing safety bond |
| CMS 603ICT LS |
UL 1480 UUMW certification for Life Safety applications |
| Clamping Design |
Security toggle clamp Min / Max clamping range 9.5 mm (0.37") / 60 mm (2.36") |
| Backcan Options |
Complete with fixed backcan |
| Cable Entry Options |
Cable clamp & squeeze connector for conduit up to 22 mm |
| Connectors |
Removable locking connector with screw terminals with “loop through” facility |
| Compliance |
UL-1480, UL-2043, CE |
| Dimensions | |
| Hole cutout diameter (all models) |
253 mm (9.96") |
| Net Weight (ea) |
5.4 kg (11.9 lbs) |
| Included Accessories |
C-Ring, tile-bridge kit, paint mask, cut-out template, grille |
| Optional Accessories |
Plaster (mud) ring, Arco grille |
| Packed Quantity |
2 |
