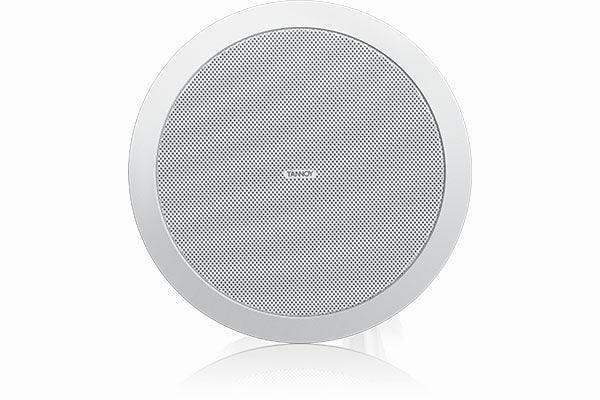

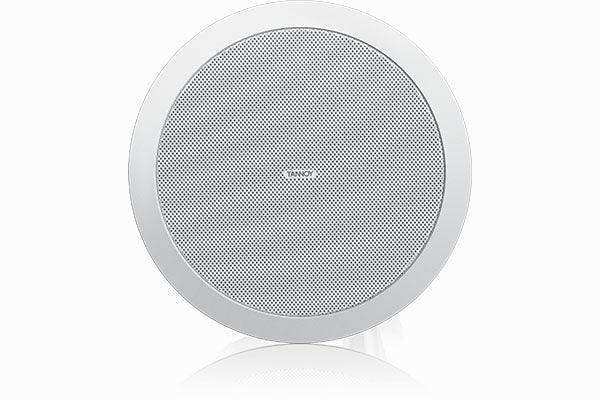

Tannoy CMS 503ICT PI 5" Full Range Ceiling Loudspeaker with ICT Driver (Pre-Install,Pair) - TA-CMS503ICT-PI

Tannoy SKU: TA-CMS503ICT-PI
No reviews
Price:
$338.00

Description

(Sold as a pair)

The CMS 503ICT PI is a wide bandwidth 200-Watt high sensitivity loudspeaker that utilises our third generation Ceiling Monitor System technology (CMS 3.0). Thanks to an all-new proprietary 5" ICT (Inductive Coupling Technology) point source driver with extended frequency range, the UL certified CMS 503ICT PI delivers consistent broadband directivity with enhanced intelligibility. ICT drivers provide exceptional long-term reliability – and are ideal for constant-usage applications.



  • Full range ceiling loudspeaker for installation applications

  • 50 Watts continuous, 200 Watts peak power

  • 5" ICT (Inductive Coupling Technology) point source driver for extended frequency range

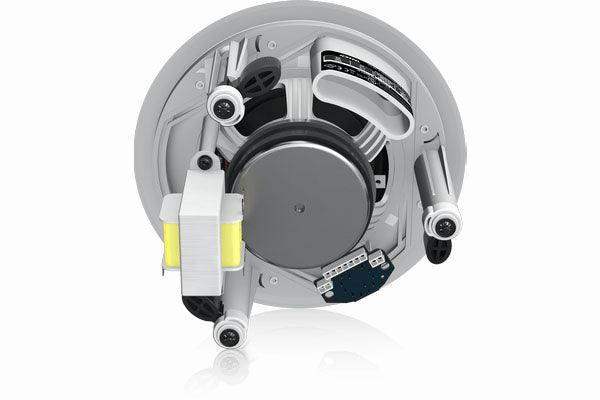

  • Pre-install version supplied without back can (available separately)

  • High durability design for constant heavy usage in demanding applications

  • UL 1480 certified for general signalling systems

  • UL 2043 certified for air-handling spaces

  • Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input

  • Low insertion loss 30 W line transformer with easily accessible tapping switch

  • Optimised for Lab Gruppen low impedance LUCIA amplifiers with up to 8 CMS series loudspeakers per channel

  • Semi matt white finish fits unobtrusively in any environment

  • Powder coated UV resistant perforated steel mesh grille with dust protection

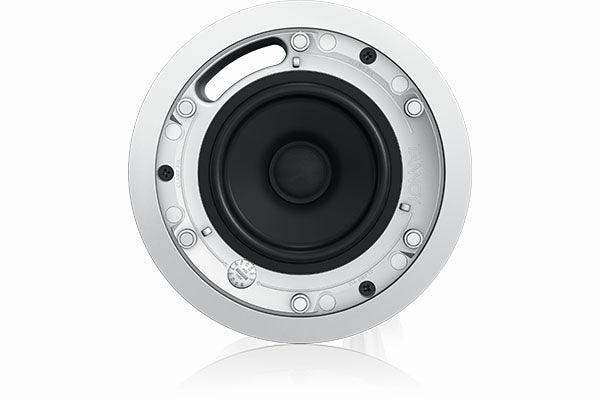

  • Removable magnetic grille for custom painting

  • Optional ARCO designer grilles available for minimal architectural impact

  • Self-aligning 3 way clamp mounting system

  • Mounting C-ring and ceiling tile rails included

  • 10-Year Warranty Program*

  • Designed and engineered in the U.K.

Data Sheet



Performance
Frequency range (-10 dB) <sup>(1)</sup>

71 Hz - 24 kHz PI Backcan
System sensitivity (1 W @ 1 m) <sup>(2)</sup>

89 dB (1 W = 4 V for 16 Ohms)
Nominal Coverage Angle

90 degrees conical
Coverage Angle (1 kHz to 6 kHz)

105 degrees
Directivity Factor (Q)

5.6 averaged 1 kHz to 6 kHz
Directivity Index (DI)

7.0 averaged 1 kHz to 6 kHz
Power Handling <sup>(3)</sup>
Recommended Amplifier Power

100 W @ 16 Ohms
Nominal Impedance (Lo, Z)

16 Ohms
Rated maximum SPL
Transformer Taps (via front rotary switch)
Crossover

7 kHz inductively coupled
Transducers
Low Frequency

130 mm (5.00") mineral loaded polypropylene
High Frequency

ICT aluminium dome
Physical
Enclosure
Safety Features

Safety ring located at rear of enclosure for load bearing safety bond
Clamping Design

Security toggle clamp Min / Max clamping range 9.5 mm (0.37") / 60 mm (2.36")
Recommended clamp torque: 1.5 Nm
Backcan Options

Complete with fi xed backcan
Cable Entry Options

Cable clamp & squeeze connector for conduit up to 22 mm
Conduit Knockouts on PI Backcan

3 Sets of horizontal positions 19 / 22 / 28 mm (0.75" / 0.87" / 1.10")
Connectors

Removable locking connector with screw terminals with “loop through” facility
Compliance

UL-1480, UL-2043, CE
Dimensions
Hole cutout diameter (all models)

190 mm (7.48")
Net Weight (ea)

3.95 kg (8.70 lbs)
Included Accessories

C-Ring, tile-bridge kit, paint mask, cut-out template, grille
Optional Accessories

Plaster (mud) ring, Arco grille
Packed Quantity

2
