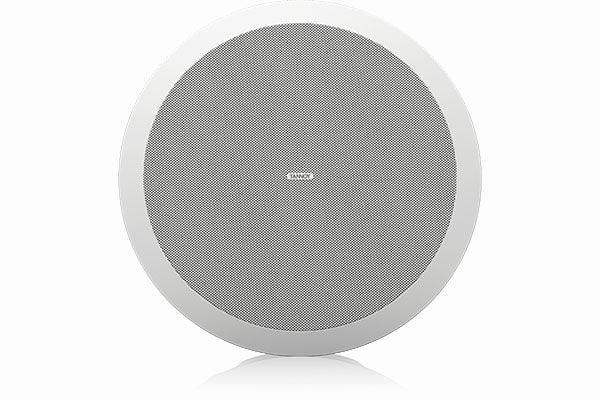

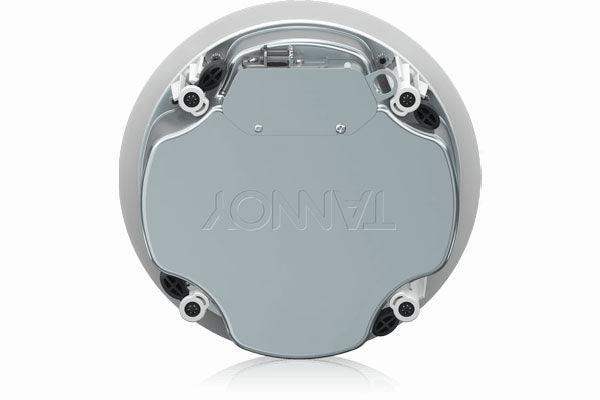

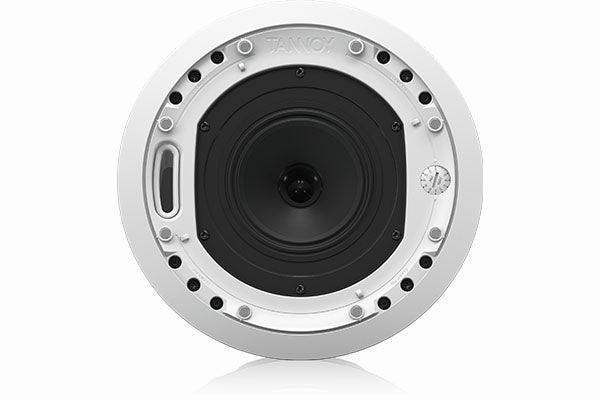

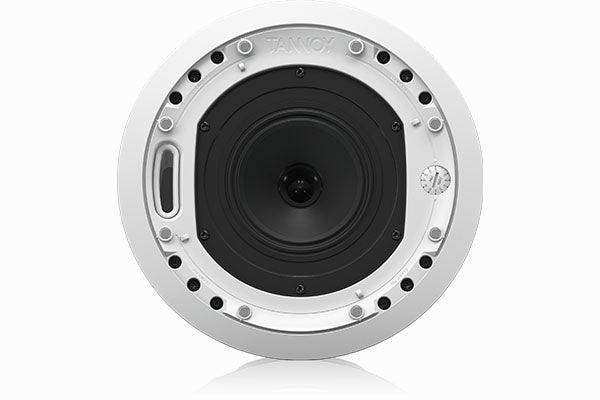

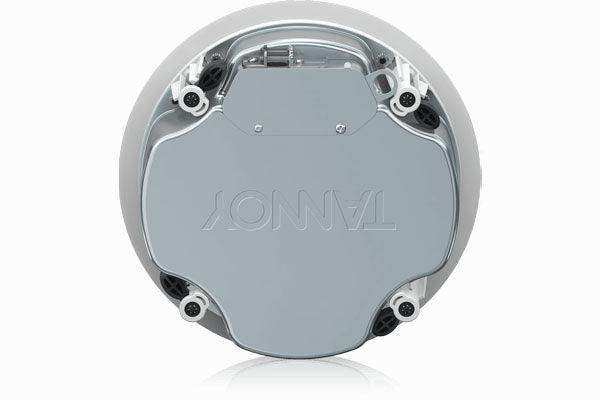

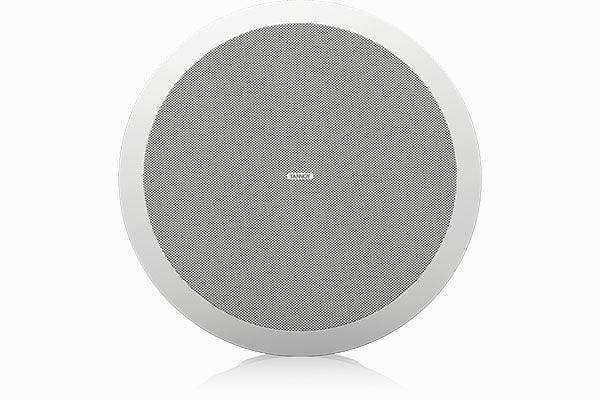

Tannoy CMS 503DC LP 5" Full Range Ceiling Loudspeaker with Dual Concentric Driver (Low Profile,Pair) - TA-CMS503DC-LP

Availability: Call for Availability

Availability: Direct Ship

Tannoy SKU: TA-CMS503DC-LP

No reviews

Price:

$458.00

Quantity:

Share this product

Description

(Sold as a pair)

CMS 3.0 CMS 503DC LP

The CMS 503DC LP is a full bandwidth 240-Watt high sensitivity loudspeaker that utilises our third generation Ceiling Monitor System technology (CMS 3.0). Thanks to an all-new proprietary 5" Dual Concentric point-source driver with Omnimagnet technology on a Torus Ogive Waveguide, the UL certified CMS 503DC LP delivers wide and consistent broadband directivity with enhanced intelligibility – plus highly accurate and linear response.

Features

Full range ceiling loudspeaker for installation applications
60 Watts continuous, 240 Watts peak power
Next generation 5" Dual Concentric driver featuring Omnimagnet technology
Torus Ogive waveguide for improved high frequency response and directivity
Ultra-shallow depth profile for applications where cavity space is restricted
UL 1480 certified for general signalling systems
UL 2043 certified for air-handling spaces
Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
Low insertion loss 30 W line transformer with easily accessible tapping switch
Optimised for Lab Gruppen low impedance LUCIA amplifiers with up to 8 CMS series loudspeakers per channel
Semi matt white finish fits unobtrusively in any environment
Powder coated UV resistant perforated steel mesh grille with dust protection
Removable magnetic grille for custom painting
Optional ARCO designer grilles available for minimal architectural impact
Self-aligning 4 way clamp mounting system
Mounting C-ring and ceiling tile rails included
10-Year Warranty Program*
Designed and engineered in England

Data Sheet

Specification

Performance

Frequency response (-3 dB) (1)	88 Hz - 22 kHz
Frequency range (-10 dB) (1)	77 Hz - 24 kHz
Frequency range (-10 dB) (1)	—
System sensitivity (1 W @ 1 m) (2)	89 dB (1 W = 4 V for 16 Ohms)
Nominal coverage angle	90 degrees conical
Power handling (3)
Average	60 W
Programme	120 W
Peak	240 W
Recommended amplifier power	120 W @ 16 Ohms
Nominal impedance (Lo, Z)	16 Ohms
Rated maximum SPL
Average	107 dB
Peak	113 dB
Transformer taps (via front rotary switch)
70 V	30 W (165 O) / 15 W (330 O) / 7.5 W (660 O) / 3.75 W (1320 O) / OFF & low impedance operation
100 V	30 W (330 O) / 15 W (660 O) / 7.5 W (1320 O) / OFF & low impedance operation

Transducers

Dual concentric point source driver	1 x 130 mm (5.0") Dual Concentric driver, using Omnimagnet technology
Low frequency	35 mm (1.38") voice coil, treated multi fi ber paper pulp cone
High frequency	20 mm (0.79") PEI dome

Physical

Enclosure
Backcan	Zinc plated steel
Baffle	Reflex loaded UL 94V-0 rated ABS
Grille	Steel, with weather resistant coating
Safety features	Safety ring located at rear of enclosure for load bearing safety bond
Clamping design	Security toggle clamp Min / Max clamping range 9.5 mm (0.37") / 60 mm (2.36") Recommended clamp torque: 1.5 Nm
Backcan options
Blind mount (BM)	—
Pre install (PI)	—
Cable entry options	Cable clamp & squeeze connector for conduit up to 22 mm
Conduit knockouts on PI Backcan	—
Connectors	Removable locking connector with screw terminals with “loop through” facility
Compliance	UL-1480, UL-2043, CE
Dimensions
Bezel diameter	274.0 mm (10.79")
Front of ceiling to rear of backcan	98.6 mm (3.88")
BM model: Front of ceiling to <br />rear of backcan	—
BM model: Front of ceiling <br />to top of safety loop	—
PI model: Front of ceiling surface <br />to rear of speaker unit	—
PI model: Front of accessory backcan <br />bezel to top of safety loop	—
Hole cutout diameter (all models)	253.0 mm (9.96")
Net weight (ea)	4.7 kg (10.36 lbs)
CMS 803DC BM	—
CMS 803DC PI	—
PI Backcan	—
Included accessories	C-Ring, tile-bridge kit, paint mask, cut-out template, grille
Optional accessories	Plaster (mud) ring, Arco grille
Packed quantity	2
