Symetrix 80-0202 Prism 12x12 (non-Dante)
Product Overview

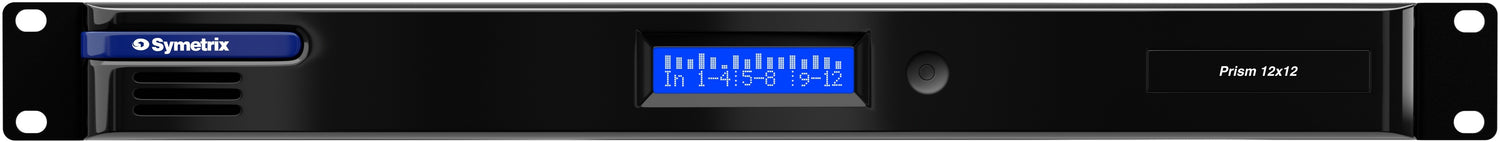

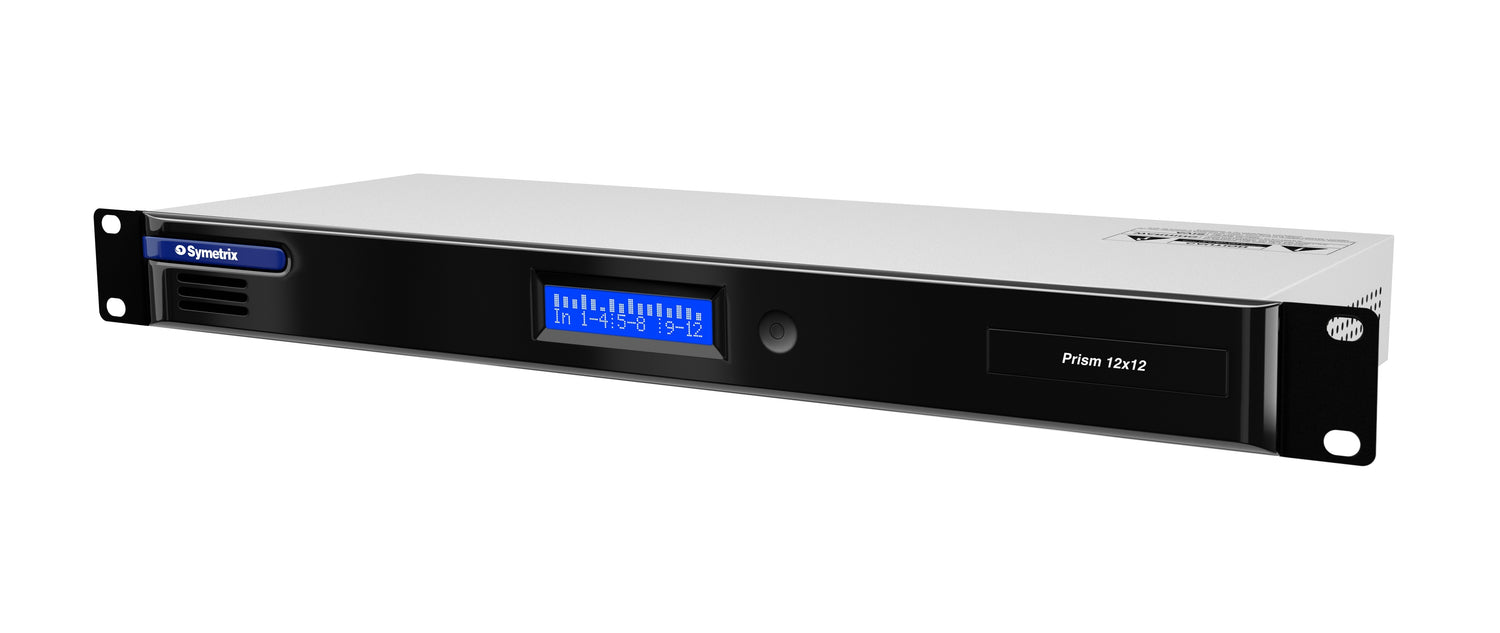

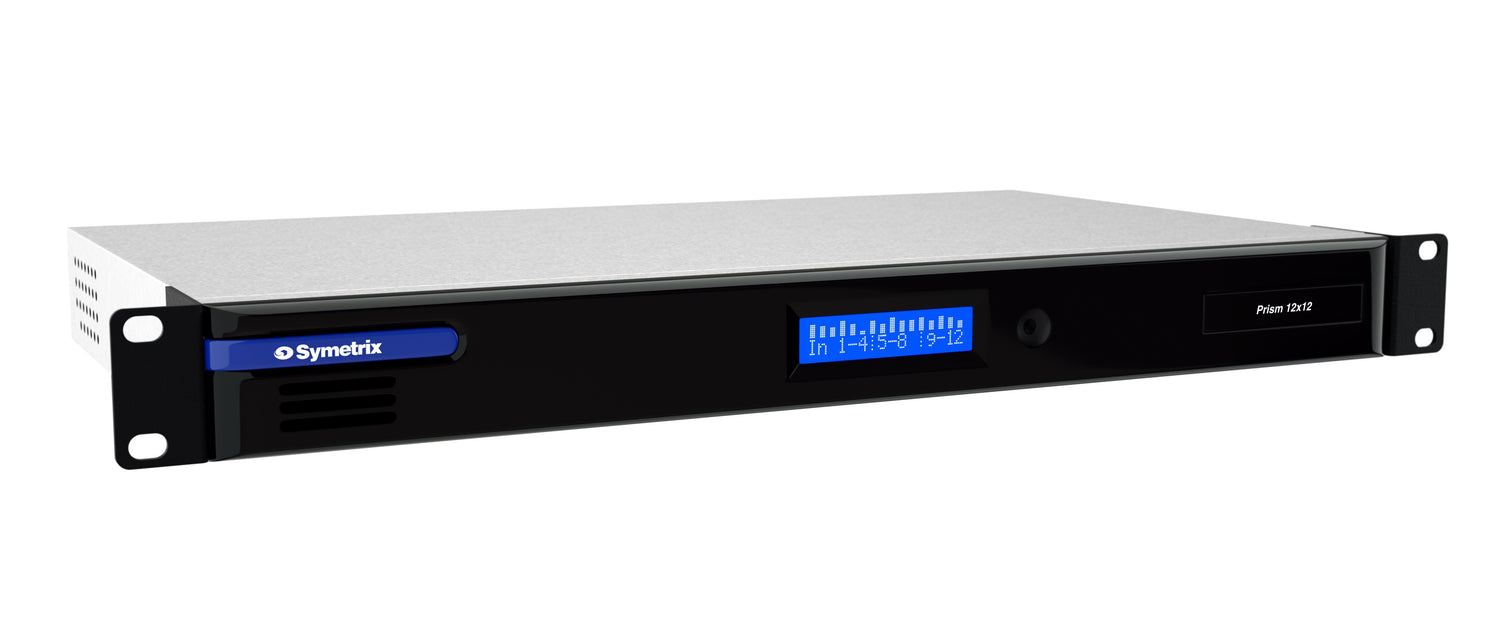

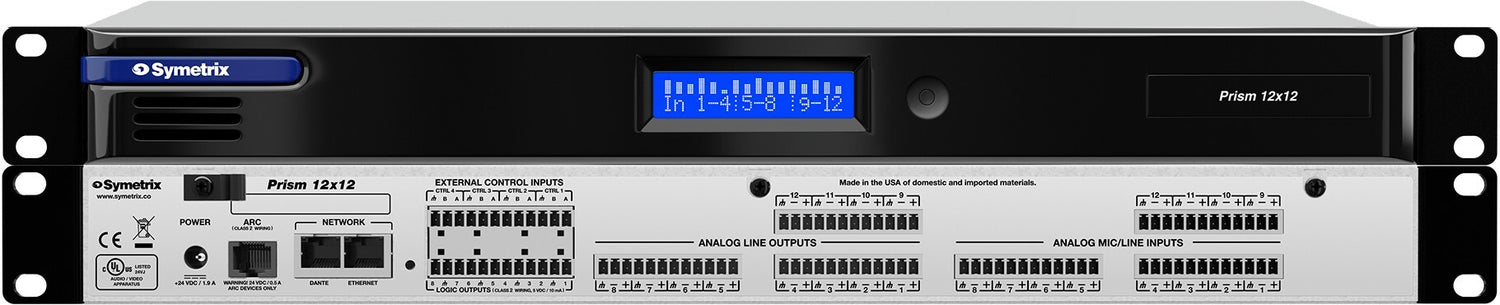

The Symetrix Prism 12x12 (SKU: 80-0202) is a 1U rack-mount fixed-architecture DSP processor providing 12 balanced analog inputs and 12 balanced analog outputs without onboard Dante networking. It is the analog-only variant of the Prism 12x12 platform, appropriate for medium-to-large commercial AV installations on analog wiring where AVoIP is not required. All processing runs at 40-bit floating point, 48 kHz, programmed in Symetrix Composer with no per-seat license cost.
Product Description

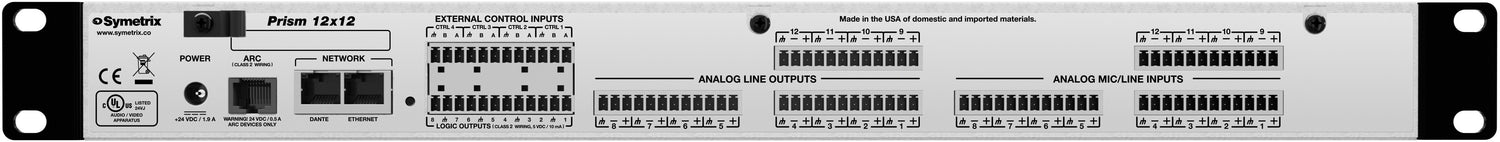

The Prism 12x12 non-Dante provides the same 12x12 analog I/O, processing architecture, and Composer compatibility as the Prism 12x12 Dante (80-0116), minus the Dante interface. The 12 balanced mic/line inputs have per-channel coarse gain, fine trim, and phantom power; 12 balanced analog outputs have fine trim. A/D/A latency is 0.88 ms. This model suits conference rooms, houses of worship, training rooms, and government spaces on analog-only signal chains, where the additional cost and configuration of Dante networking is not warranted. It is compatible in a Symetrix Composer site file with all other Symetrix DSP platforms.
Key Features
- 12 Balanced Analog Inputs — Mic/line switchable; per-channel gain, trim, phantom power.
- 12 Balanced Analog Outputs — Balanced line-level with fine trim.
- No Dante — Analog Only — No AVoIP infrastructure required.
- 40-Bit Floating Point, 48 kHz — 0.88 ms A/D/A latency.
- Fixed Architecture — No expansion slots.
- Composer Programmable — Free open-architecture software.
Typical Applications
- Conference rooms and training rooms on analog AV infrastructure
- Houses of worship with analog signal chains
- Government meeting spaces with network restrictions
- Commercial audio systems without AVoIP requirements
Technical Specifications
| Specification | Value |
|---|---|
| SKU | 80-0202 |
| Form Factor | 1U Rack-Mount |
| Analog Inputs | 12 balanced mic/line |
| Analog Outputs | 12 balanced line |
| Dante | None |
| Expansion Slots | None |
| Processing | 40-bit floating point, 48 kHz |
| Total A/D/A Latency | 0.88 ms |
| Programming Software | Symetrix Composer (free) |
