Symetrix 80-0115 Prism 8x8 Dante

Product Overview

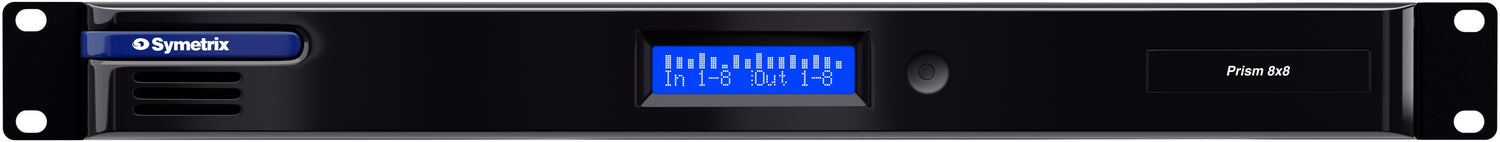

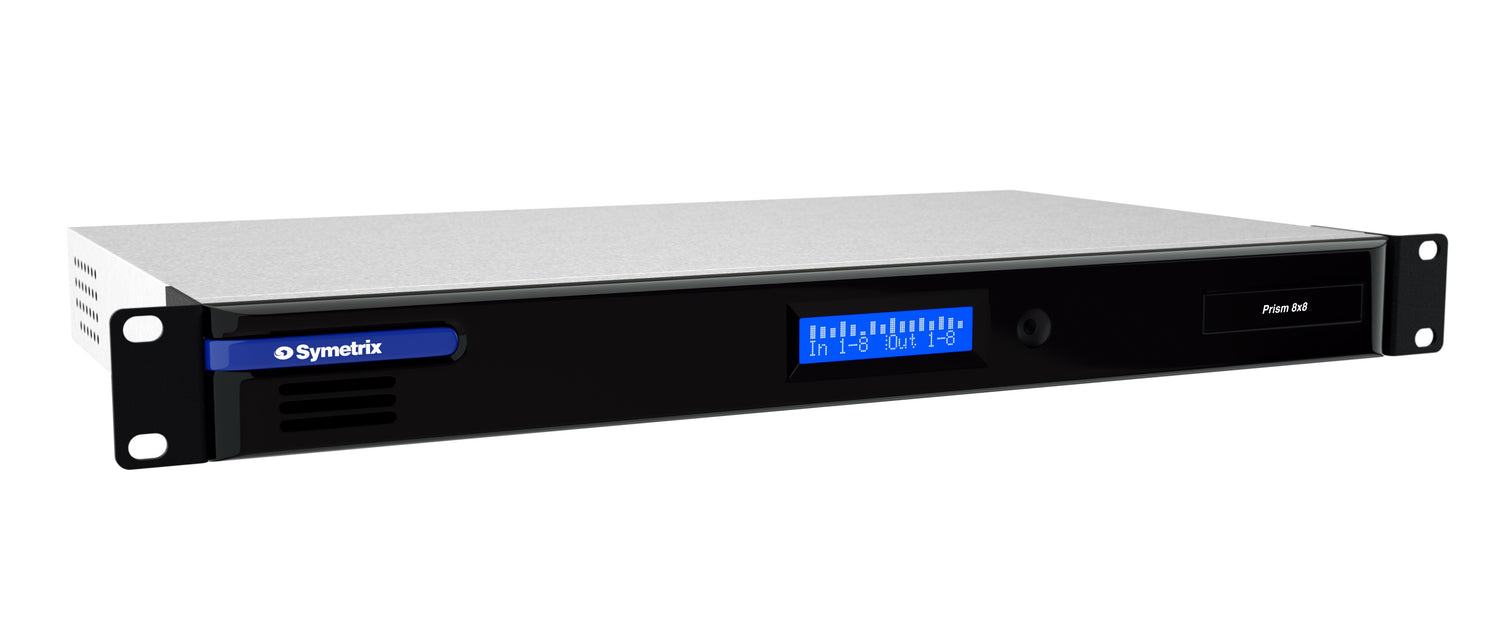

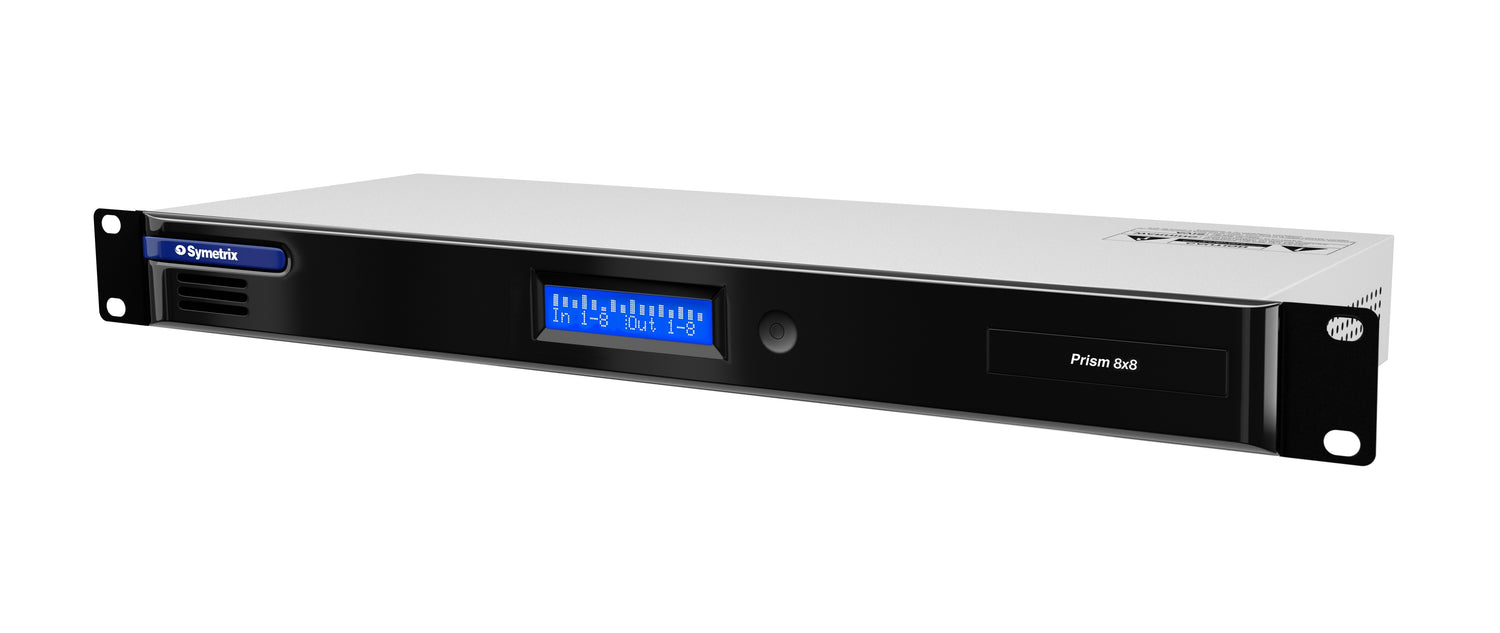

The Symetrix Prism 8x8 Dante (80-0115) is a compact 1U rack-mount DSP processor with 8 balanced analog inputs, 8 balanced analog outputs, and a native Dante card, designed for small to mid-size conference rooms, huddle rooms, and commercial meeting spaces requiring a capable, Dante-networked audio DSP at an accessible price point. Delivering 40-bit floating-point audio processing at 48 kHz with integrated acoustic echo cancellation and automatic gain control, the Prism 8x8 Dante handles the full DSP requirements of a typical 6 to 10 person conference room within a single 1U unit — programmed via Symetrix Composer at no additional software license cost.

Product Description

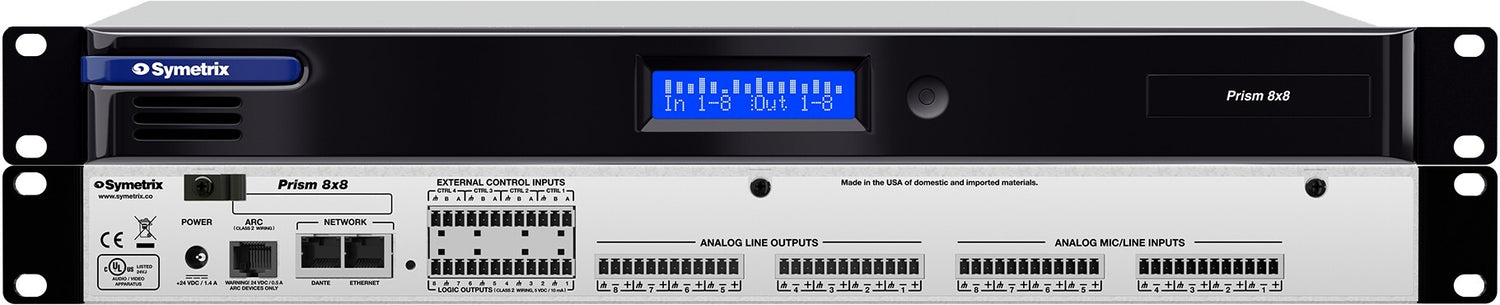

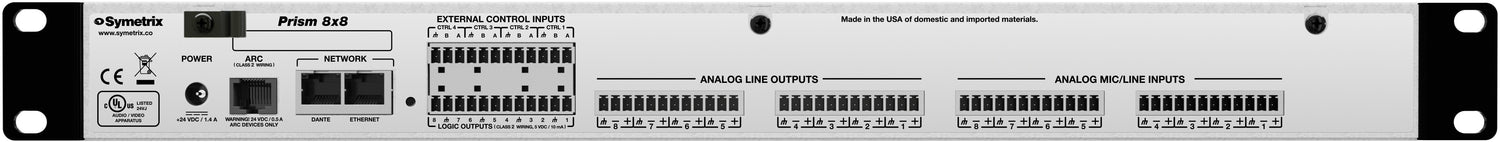

The 8-channel analog I/O of the Prism 8x8 Dante is well-matched to conference rooms using ceiling microphone arrays with 4 to 8 elements, a single or dual-zone amplified speaker system, and a unified communications interface. Phoenix terminal connectors on all analog I/O simplify installation and ensure reliable, permanent connections in rack environments. The native Dante card provides dual network ports and supports direct connectivity to Dante-enabled AV devices including ceiling microphone arrays, digital amplifiers, and conferencing codecs without external audio networking hardware.

Symetrix Composer provides the programming environment for all DSP block configuration, routing, and control system integration. ARC wall panels integrate natively for room-level user controls, and the unit supports TCP/IP control bindings for Crestron, AMX, and other third-party control systems. For installations requiring additional I/O beyond 8 channels, Symetrix xIO Dante endpoints can be added to the Dante network to extend analog I/O at remote locations.

Key Features

• 8 Balanced Analog Inputs / 8 Balanced Analog Outputs — Phoenix terminal I/O provides 8 independent channels in each direction, matching typical small conference room microphone and speaker zone requirements.
• Native Dante Card — Onboard Dante audio networking connects directly to Dante-enabled AV devices at low latency, eliminating the need for external audio network converters.
• Acoustic Echo Cancellation (AEC) — Integrated AEC removes loudspeaker-to-microphone feedback for intelligible far-end audio in videoconferencing and hybrid meeting rooms.
• Automatic Gain Control (AGC) — Automatically normalizes talker levels for consistent conference call audio quality regardless of individual talker volume variations.
• 40-Bit Floating-Point Processing at 48 kHz — High-precision DSP engine maintains audio quality through multi-stage processing including AEC, gating, EQ, and dynamics.
• Symetrix Composer Programming (No License Fee) — Complete DSP configuration and control integration with no per-unit software licensing cost.
• ARC Wall Panel and xIO Endpoint Compatible — Integrates with Symetrix ARC panels for end-user room controls and xIO endpoints for distributed I/O extension.
• 1U Rack-Mount Form Factor — Compact single rack unit fits into small equipment racks in conference room furniture or dedicated AV closets.

Typical Applications

• Conference room
• Huddle room
• Boardroom
• Training room
• Commercial meeting space
• Government space

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Q: Is the Prism 8x8 Dante suitable for a typical conference room installation?

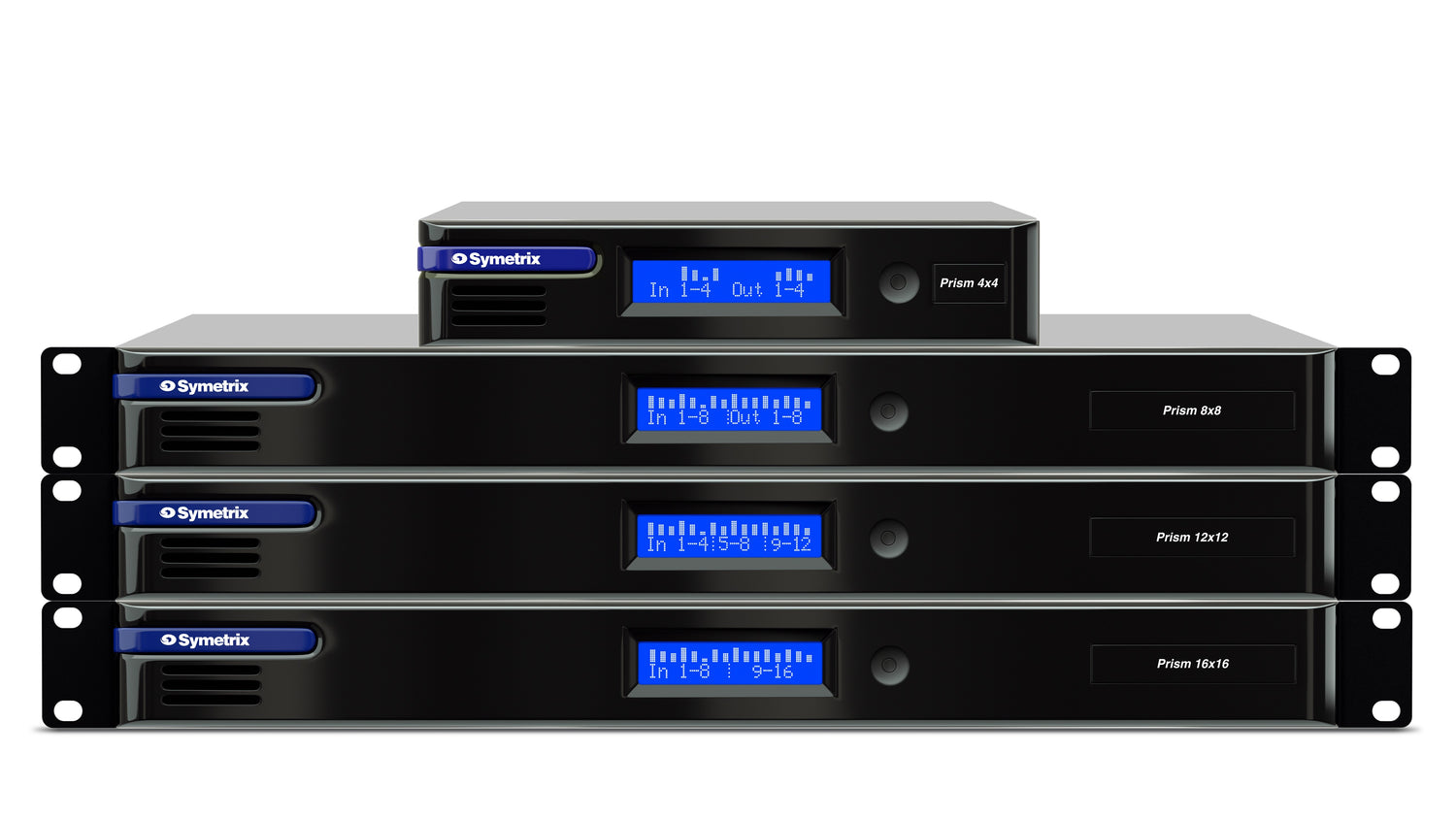

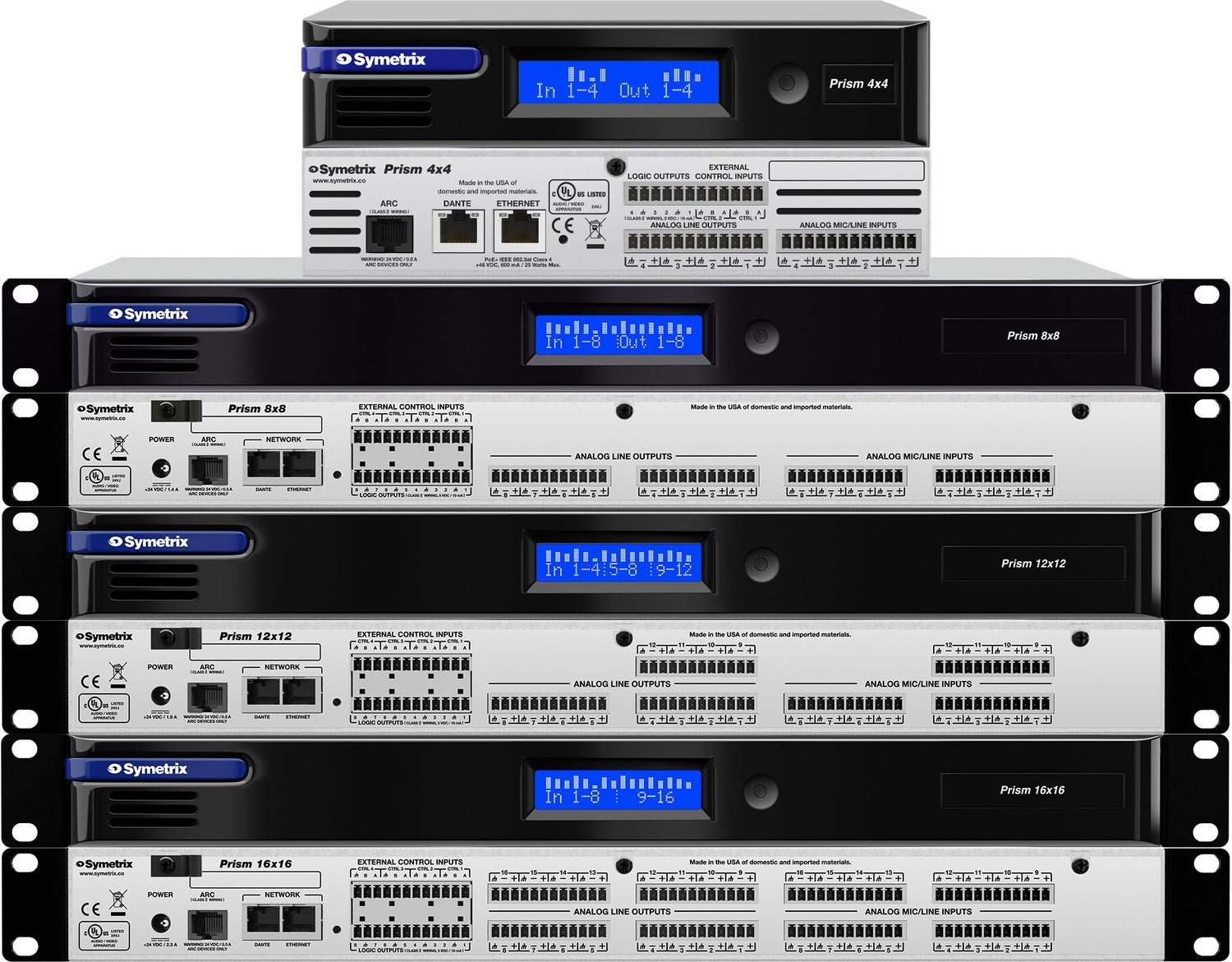

A: Yes. The 8-channel analog I/O is well-matched to conference rooms using ceiling microphone arrays with up to 8 elements, a single or dual amplified speaker zone, and a conferencing or unified communications interface. For rooms requiring more than 8 channels, the Prism 12x12 or 16x16 Dante models are available.

Q: Does the Dante card require any additional licensing?

A: No. The Dante card ships included with the 80-0115 and requires no additional Dante license for standard operation.

Q: Can I add I/O beyond the 8 channels?

A: Yes. Symetrix xIO Dante endpoints connect to the Dante network and extend analog or digital I/O to remote locations in the facility. They are configured alongside the Prism 8x8 Dante within a single Composer design file.

Q: What control systems are supported?

A: Crestron, AMX, and other TCP/IP control systems are supported via Composer control bindings. Symetrix ARC wall panels integrate natively for room-level user control.

Q: What warranty applies?

A: Symetrix provides a standard manufacturer warranty on Prism series products. Contact Creation Networks for current warranty terms and support options.
