Symetrix 80-0114 Prism 4x4 Dante

Product Overview

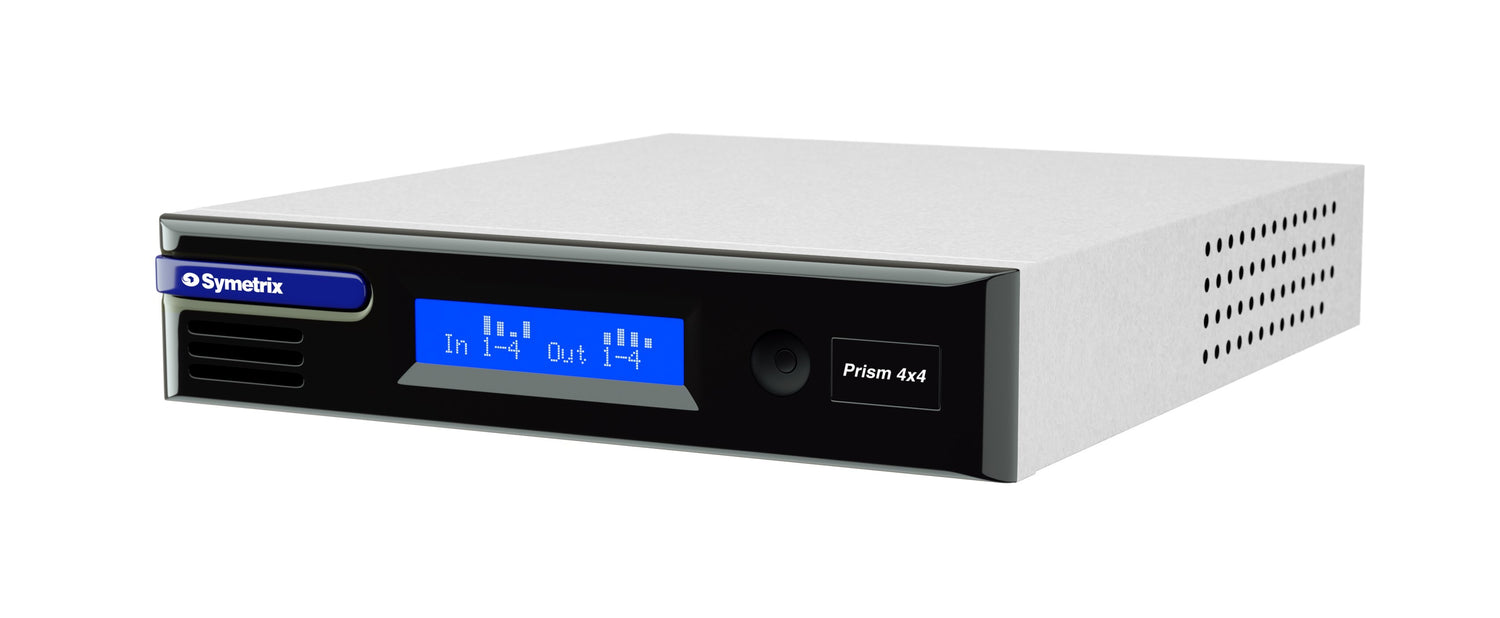

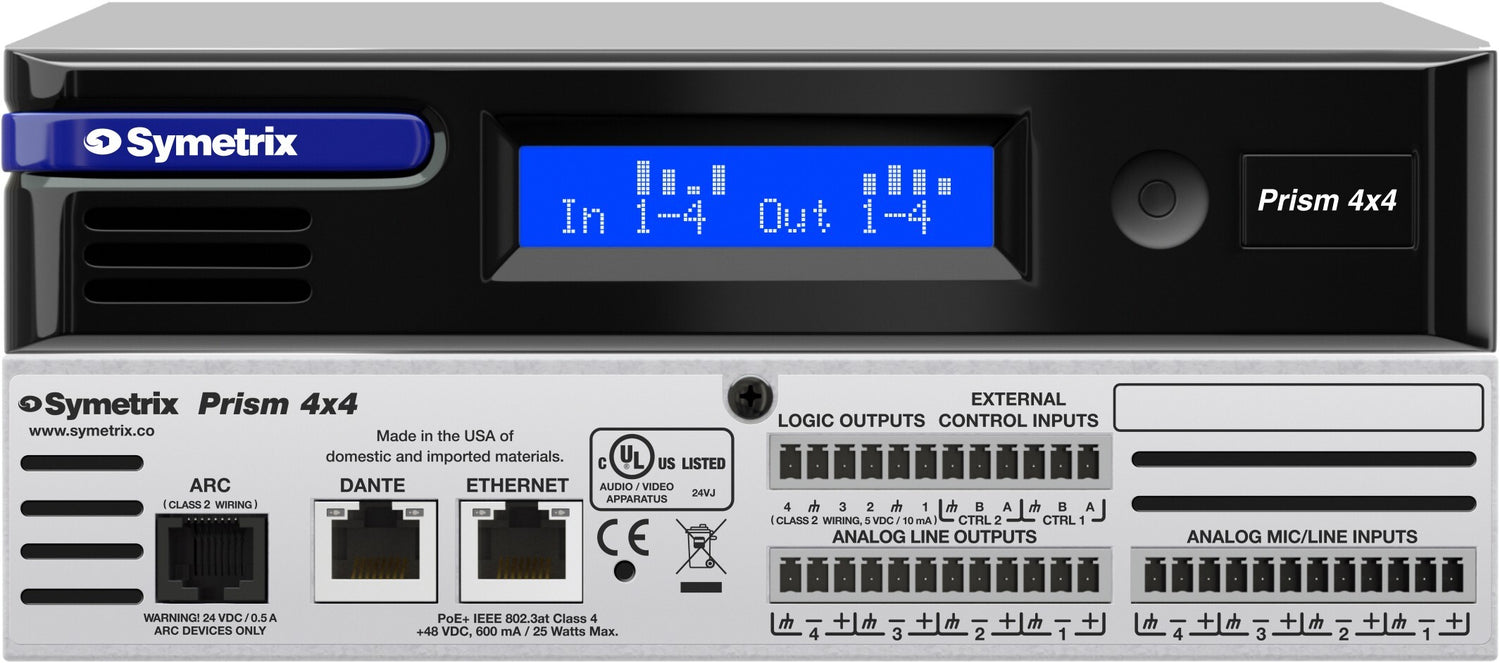

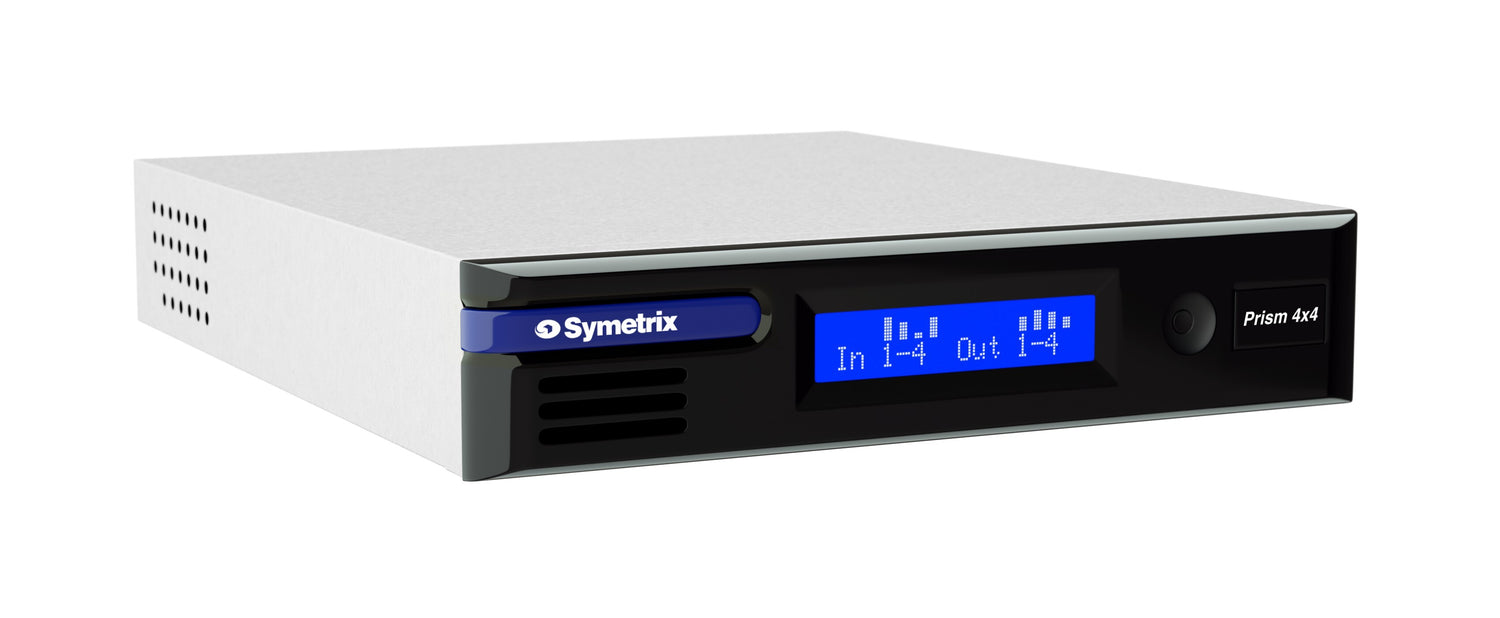

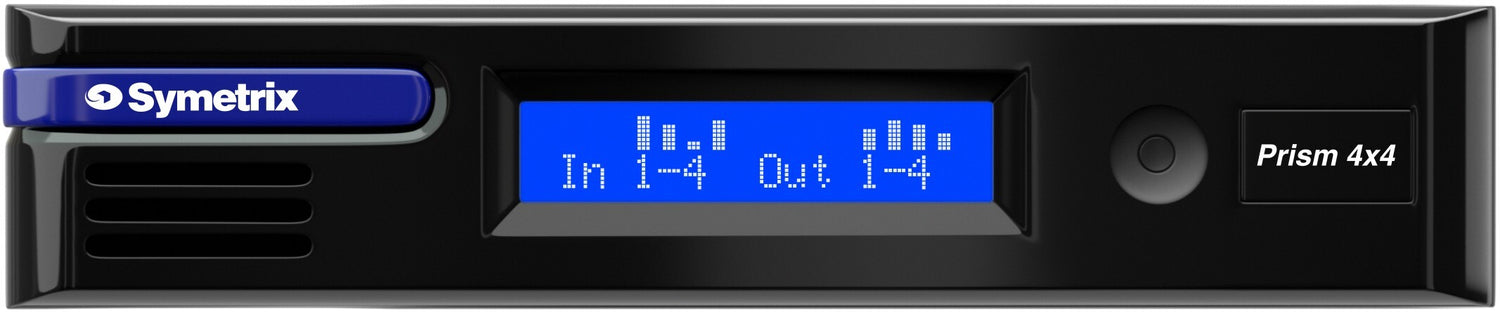

The Symetrix Prism 4x4 Dante (80-0114) is a compact 1U rack-mount DSP processor with 4 balanced analog inputs, 4 balanced analog outputs, and a native Dante card — ideal for small conference rooms, huddle spaces, and single-zone meeting environments where a full-featured Dante-networked DSP is required in a space-efficient and cost-effective form factor. Delivering 40-bit floating-point audio processing at 48 kHz with integrated acoustic echo cancellation and automatic gain control, the Prism 4x4 Dante handles the complete audio DSP requirements of a small meeting room within a single 1U unit, programmed via Symetrix Composer at no additional software license cost.

Product Description

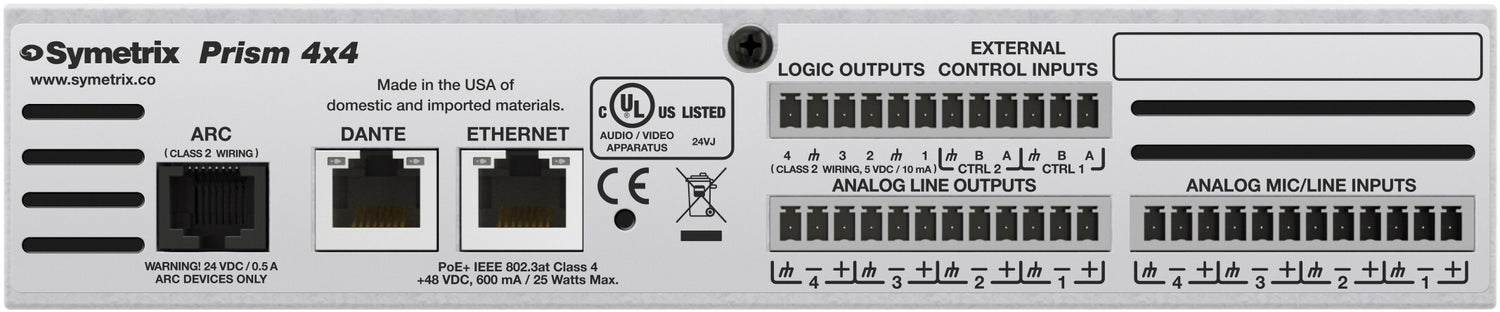

The 4-channel I/O configuration of the Prism 4x4 Dante is directly matched to small conference rooms and huddle spaces using a compact ceiling microphone array and a single amplified speaker zone with a conferencing interface — a common design pattern for rooms accommodating 2 to 6 participants. Phoenix terminal connectors on all analog inputs and outputs ensure reliable, permanent installation in furniture racks or small AV closets. The native Dante card connects directly to Dante-enabled conferencing endpoints, wireless microphone systems, and digital amplifiers on the network.

Symetrix Composer provides the full DSP programming environment at no per-unit license cost, with drag-and-drop block design for AEC, AGC, EQ, gating, and routing. Third-party control system integration for Crestron and AMX is supported via TCP/IP control bindings. Symetrix ARC wall panels provide native end-user room control for volume and muting.

Key Features

• 4 Balanced Analog Inputs / 4 Balanced Analog Outputs — Phoenix terminal I/O across 4 independent channels in each direction, precisely matched to small room microphone and speaker zone requirements.
• Native Dante Card — Onboard Dante audio networking provides low-latency AoIP connectivity to Dante-enabled conferencing and AV devices without external conversion hardware.
• Acoustic Echo Cancellation (AEC) — Integrated AEC removes loudspeaker-to-microphone feedback for clear, intelligible far-end audio in huddle rooms and small conference spaces.
• Automatic Gain Control (AGC) — Automatically normalizes talker levels for consistent audio output in rooms with variable talker positions and volumes.
• 40-Bit Floating-Point Processing at 48 kHz — High-precision DSP engine maintains audio fidelity through the full processing chain including AEC, EQ, gating, and dynamics.
• Symetrix Composer Programming (No License Fee) — Complete DSP configuration and control integration with no per-seat or per-unit software cost.
• ARC Wall Panel Compatible — Integrates natively with Symetrix ARC wall panels for end-user volume and mute control.
• 1U Rack-Mount Form Factor — Compact chassis integrates into small furniture racks, under-table enclosures, or dedicated AV closets.

Typical Applications

• Huddle room
• Conference room
• Commercial meeting space
• Training room
• Government space

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Q: Is the Prism 4x4 Dante sufficient for a typical huddle room?

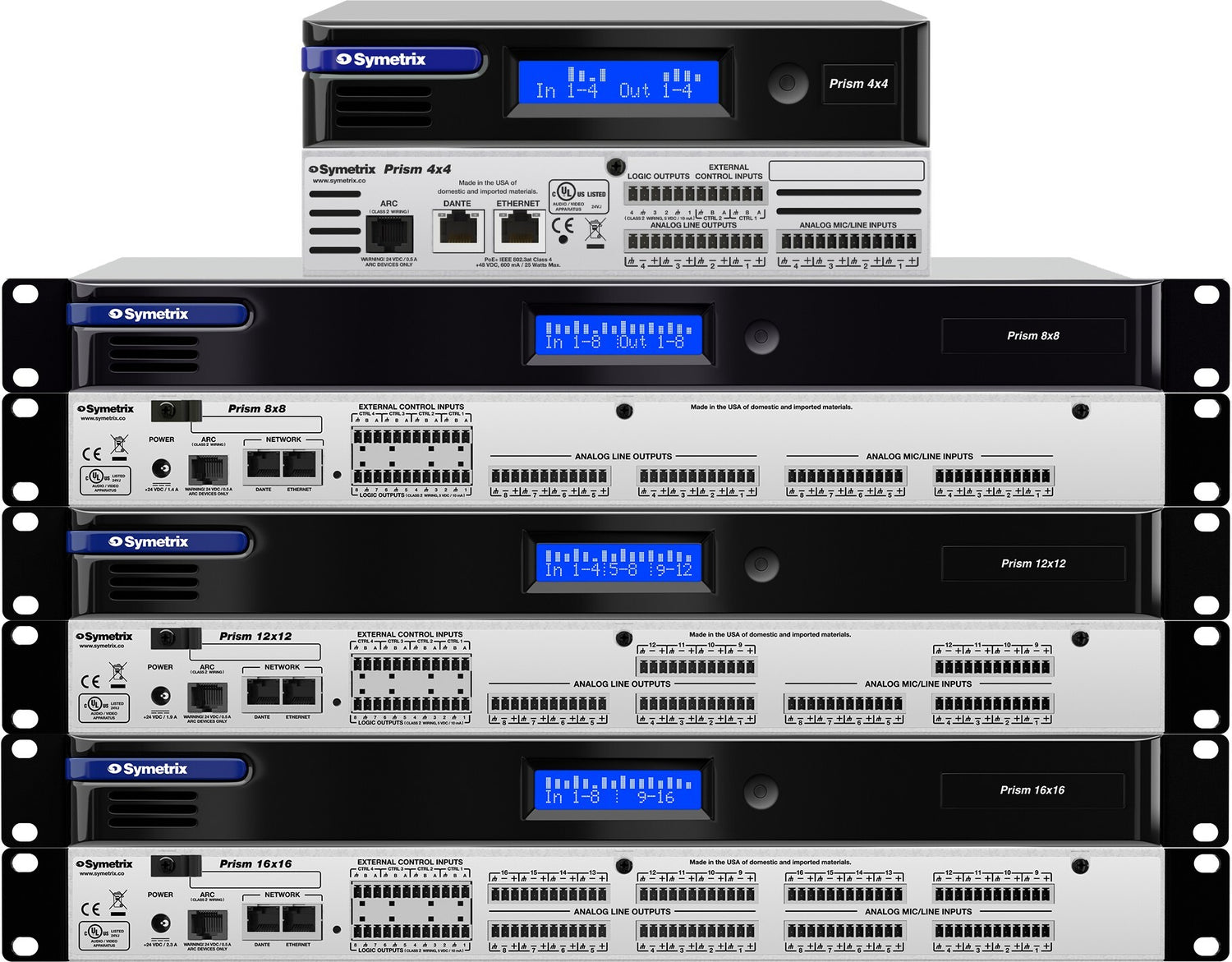

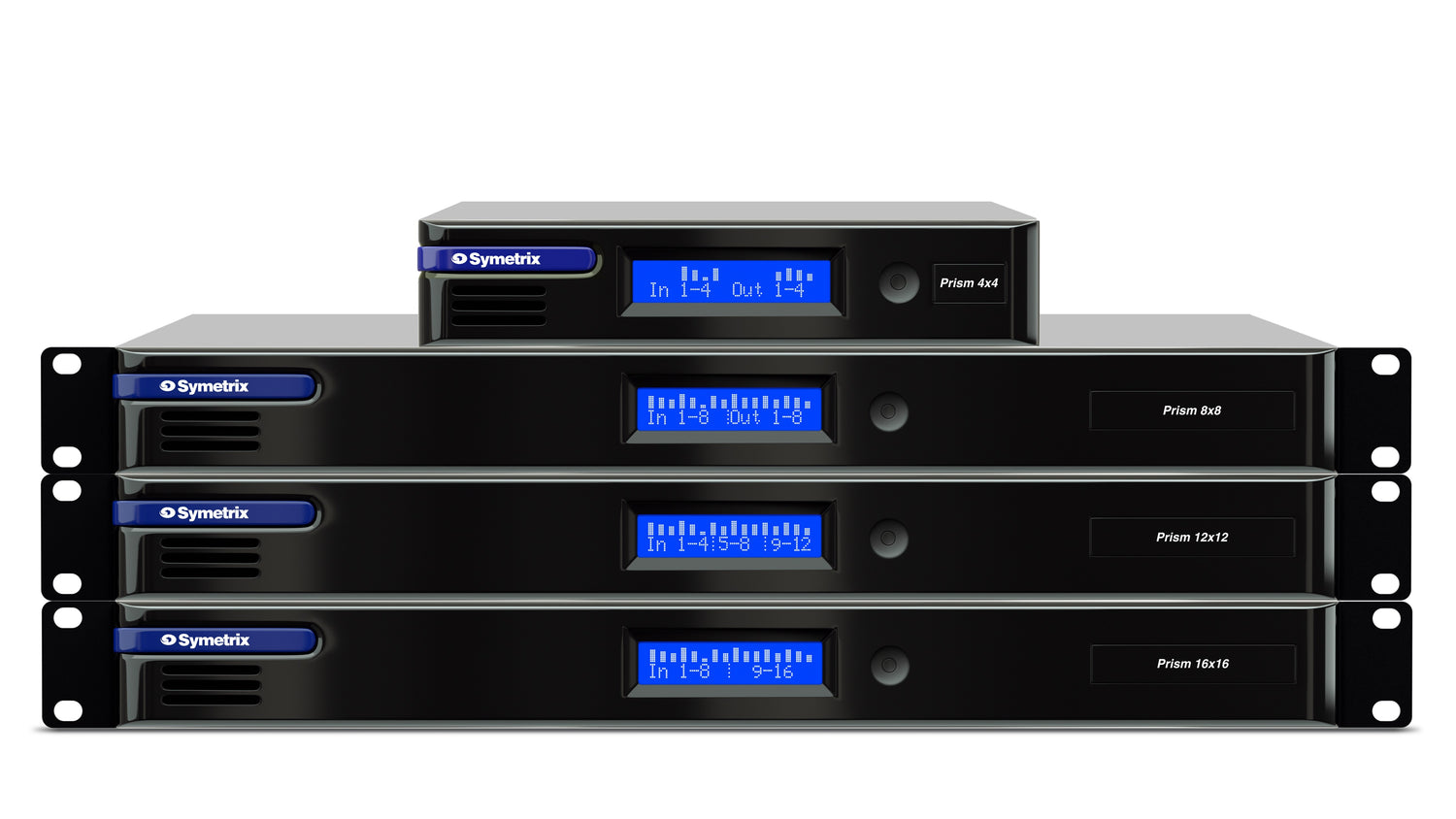

A: Yes. The 4-channel I/O is well-matched to huddle rooms and small conference spaces using a compact ceiling microphone array, a single amplified speaker zone, and a conferencing interface. For rooms requiring more than 4 analog channels, the Prism 8x8 Dante or larger models are available.

Q: Does the Dante card require any additional licensing?

A: No. The Dante card ships included with the 80-0114 at no additional cost and requires no additional Dante license for standard operation.

Q: What control systems integrate with the Prism 4x4 Dante?

A: Crestron, AMX, and other TCP/IP-based control systems are supported through Composer control bindings. Symetrix ARC wall panels integrate natively for room-level user controls.

Q: Can I expand beyond 4 channels of I/O on the Prism 4x4 Dante?

A: Yes. Symetrix xIO Dante endpoints connect to the Dante network and provide supplemental analog or digital I/O at remote locations in the room or facility, configured within the same Composer design file.

Q: What warranty applies?

A: Symetrix provides a standard manufacturer warranty on Prism series products. Contact Creation Networks for current warranty terms and support options for your installation.
