Symetrix 80-0093 ARC-PSe

Product Overview

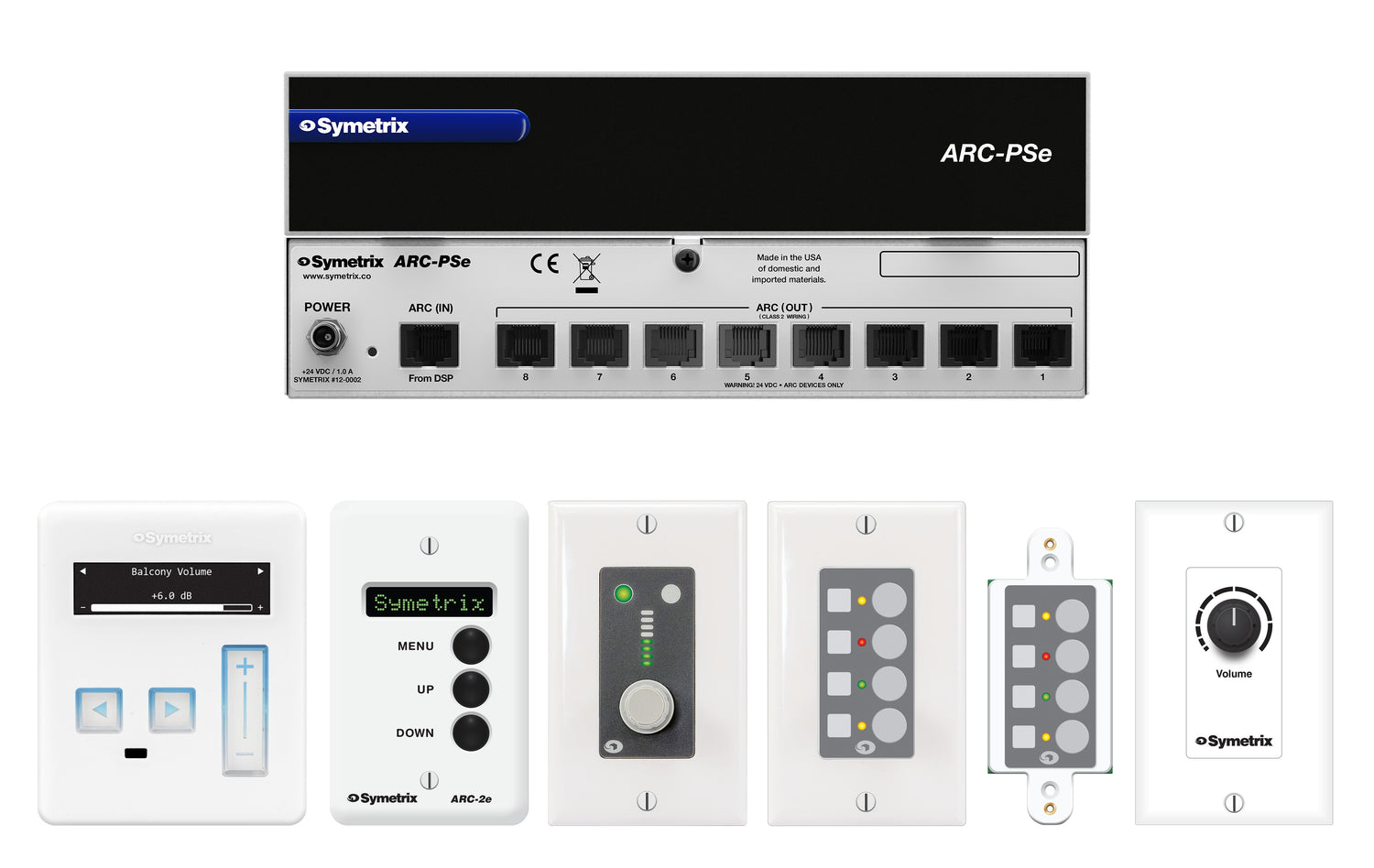

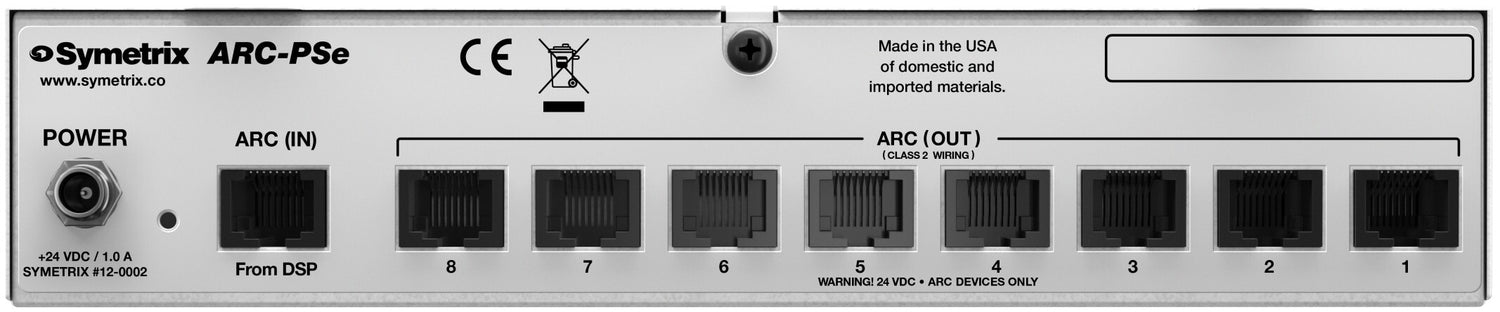

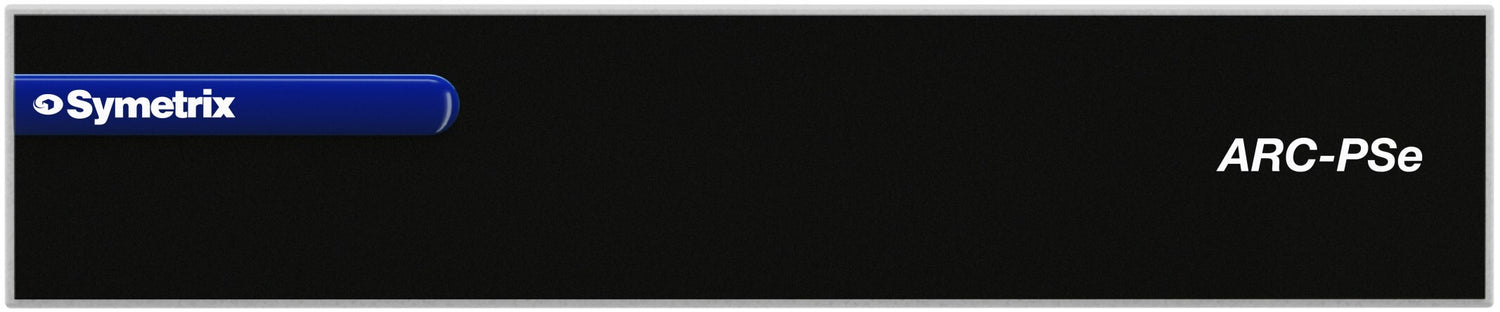

The Symetrix 80-0093 ARC-PSe is a dedicated power supply for Symetrix ARC wall panel controllers. It provides DC power and RS-485 bus connectivity to multiple ARC panels (ARC-2e, ARC-3, ARC-K1e, ARC-SW4e, and ARC-EX4e) in installations where the onboard power from the Symetrix DSP is insufficient for the number of panels deployed or the length of the RS-485 cable run. The ARC-PSe installs in an equipment rack and connects to the RS-485 bus serving the ARC wall panels.

Product Description

In a standard Symetrix ARC installation, the DSP powers the ARC panels via the RS-485 bus. However, installations with a large number of ARC panels, long RS-485 cable runs, or panels with high LED brightness — such as the ARC-K1e with its eight-segment LED stack — may require supplemental power. The ARC-PSe provides that supplemental power, allowing more panels to be connected per RS-485 bus and enabling longer wiring runs without voltage drop issues. It installs in a 1U rack position and is connected in line with the RS-485 bus. Compatible with all Symetrix ARC-series wall panels and programmed/configured in Symetrix Composer as part of the installation’s DSP site file.

Key Features

• Dedicated ARC Panel Power Supply — Provides DC power to ARC wall panels when DSP onboard power is insufficient.
• RS-485 Bus Integration — Connects in-line with the ARC RS-485 wiring; no separate control configuration required.
• Extends ARC Bus Reach — Enables longer RS-485 runs and more panels per bus.
• 1U Rack-Mount — Installs in the equipment rack alongside the Symetrix DSP.

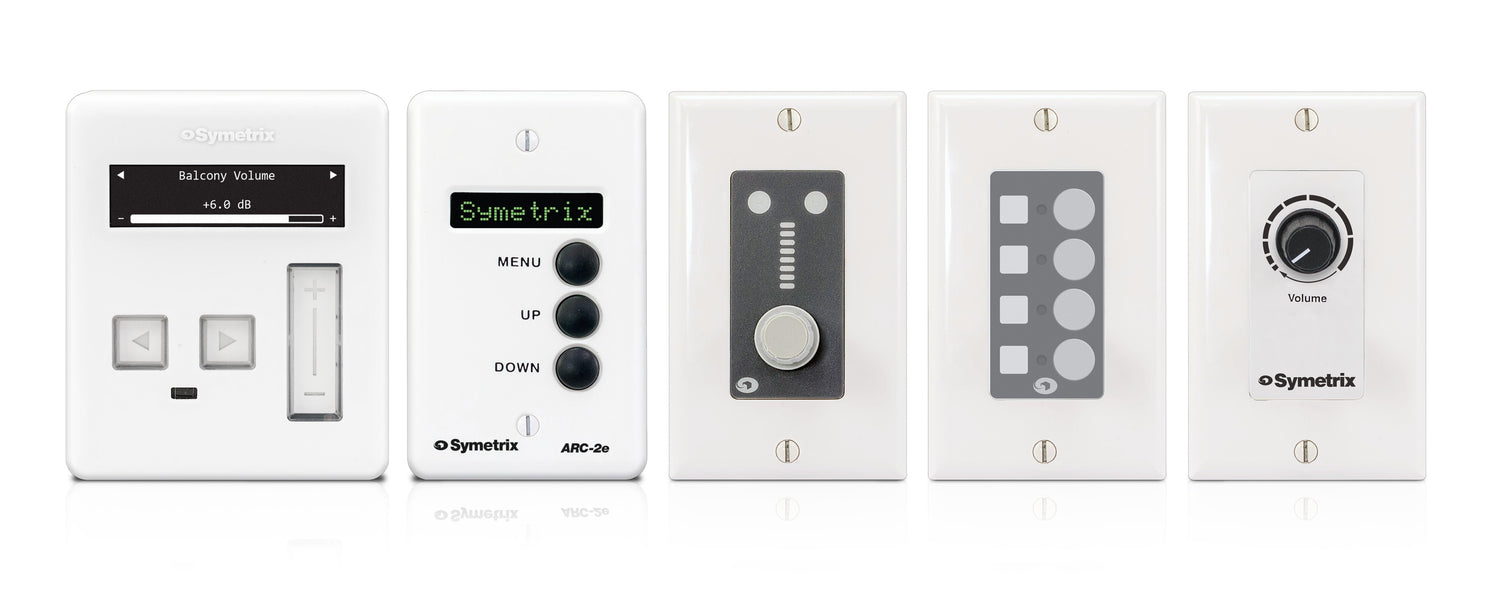

• Compatible with All Symetrix ARC Panels — ARC-2e, ARC-3, ARC-K1e, ARC-SW4e, ARC-EX4e.

Typical Applications

• Installations with 4 or more ARC panels per RS-485 bus
• Long-run RS-485 wiring to remote wall locations
• Houses of worship with multiple ARC panels per zone
• Corporate AV systems with distributed ARC panel installations

Technical Specifications

Frequently Asked Questions

When do I need the ARC-PSe?

The ARC-PSe is needed when the number of ARC panels per bus exceeds the power capacity of the DSP’s onboard RS-485 supply, or when the total RS-485 cable run to all panels is too long for the onboard supply to maintain reliable voltage. Consult the Symetrix Composer documentation for per-DSP ARC bus power limits.
