Symetrix 80-0043 Jupiter 4
Product Overview

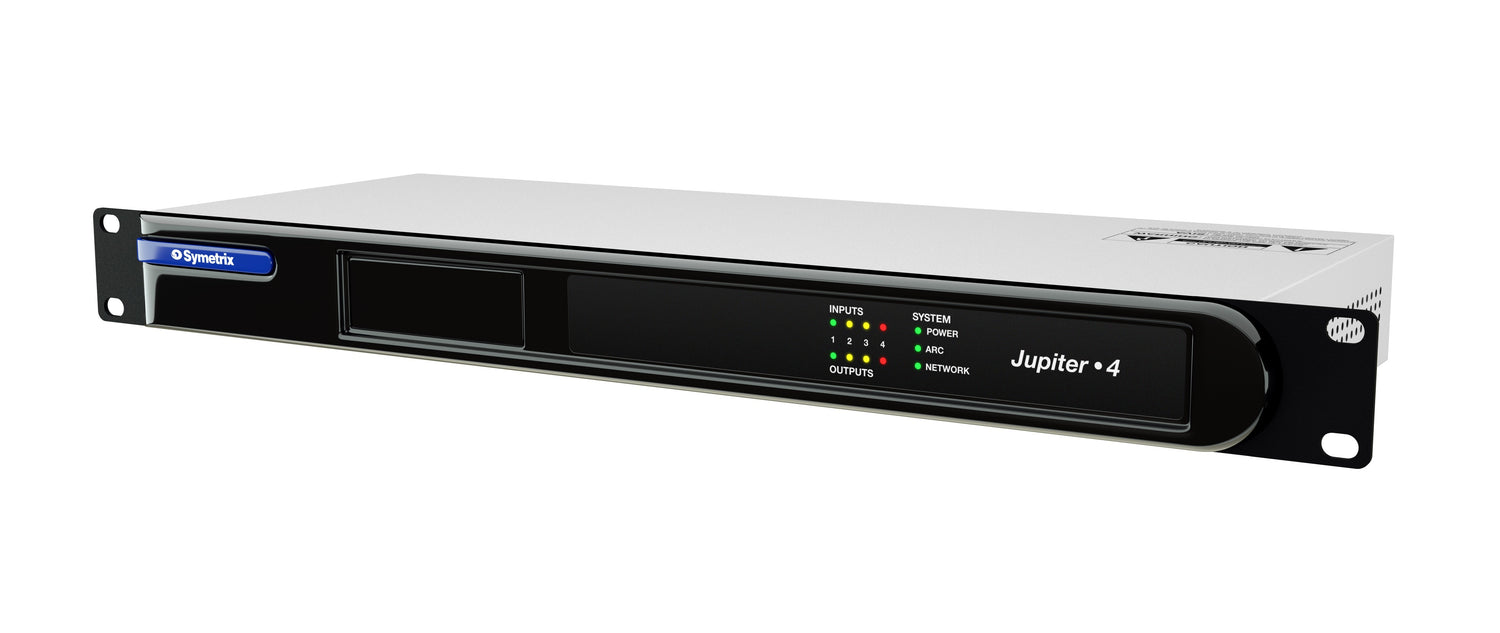

The Symetrix Jupiter 4 (SKU: 80-0043) is a compact 1U rack-mount fixed-architecture commercial DSP processor and the entry-level model in the Jupiter family. With 2 mic/line inputs and 2 balanced analog outputs, it is sized for small conference rooms, huddle spaces, and basic commercial audio applications where a turn-key DSP with simple operator control is more appropriate than a fully open-architecture platform. It deploys using one of 85 pre-built Composer applications and supports Symetrix ARC wall panels for local control.
Product Description
The Jupiter 4 uses the same turn-key application model as the Jupiter 8 and Jupiter 12 — the integrator selects and configures from 85 pre-built Composer apps covering mixing, routing, public address, and specialty DSP functions. For small rooms with straightforward audio requirements, this approach reduces programming time while still providing professional-grade signal processing including EQ, dynamics, room combining, and feedback elimination. ARC wall panels connect via RS-485 for local volume and source control. SymVue can generate a Windows-based virtual GUI for operator use. For installations requiring a replacement PSU, the Jupiter/Zone Mix PSU (12-0002) is available separately.
Key Features
- 2 Mic/Line Inputs — Balanced analog inputs for one or two microphone or line-level sources.
- 2 Balanced Analog Outputs — Line-level outputs for speaker feeds or downstream signal processing.
- 85 Turn-Key Applications — Pre-built Composer apps for rapid deployment of standard audio signal chains.
- ARC Wall Panel Support — Compatible with Symetrix ARC series controllers via RS-485.

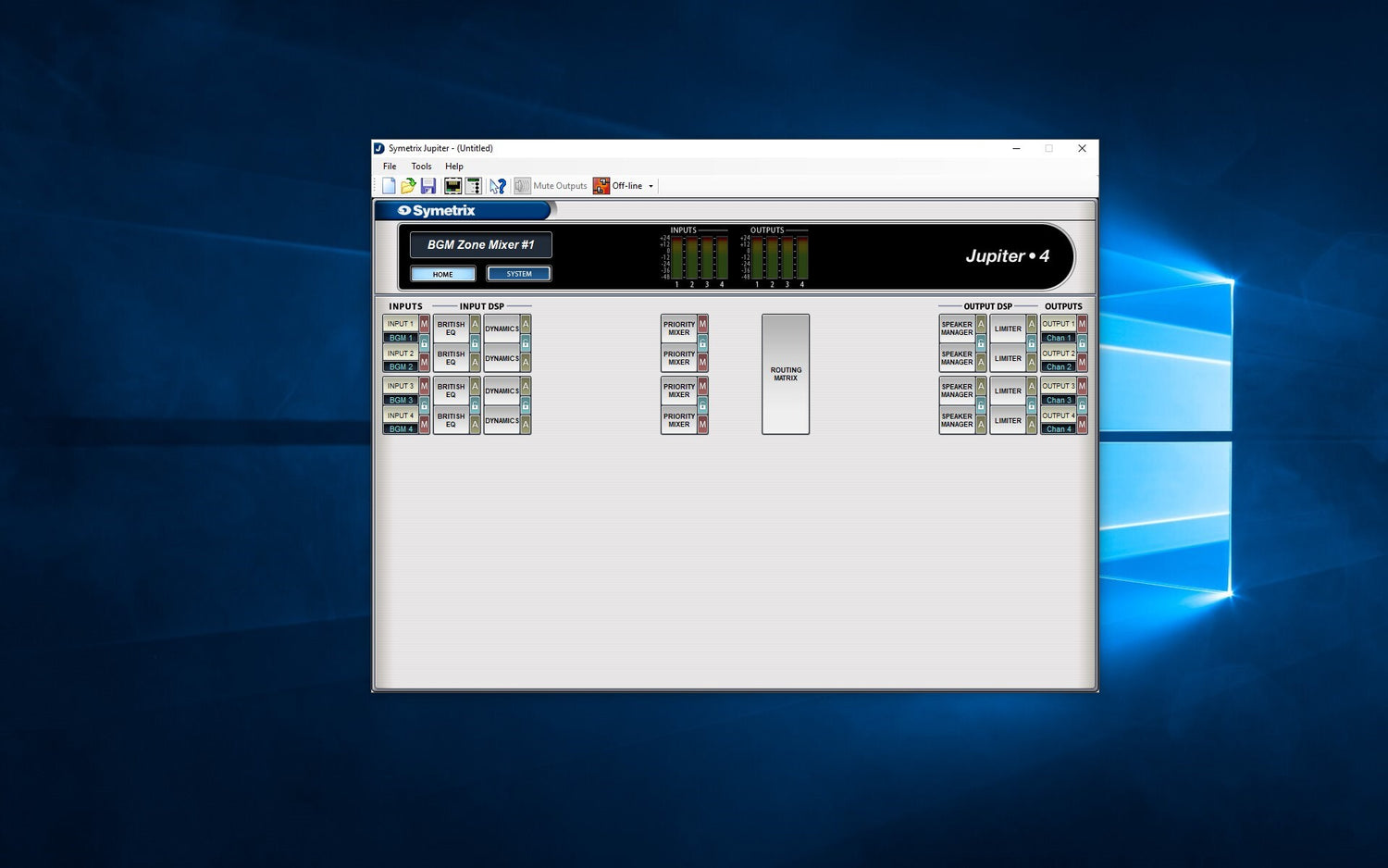

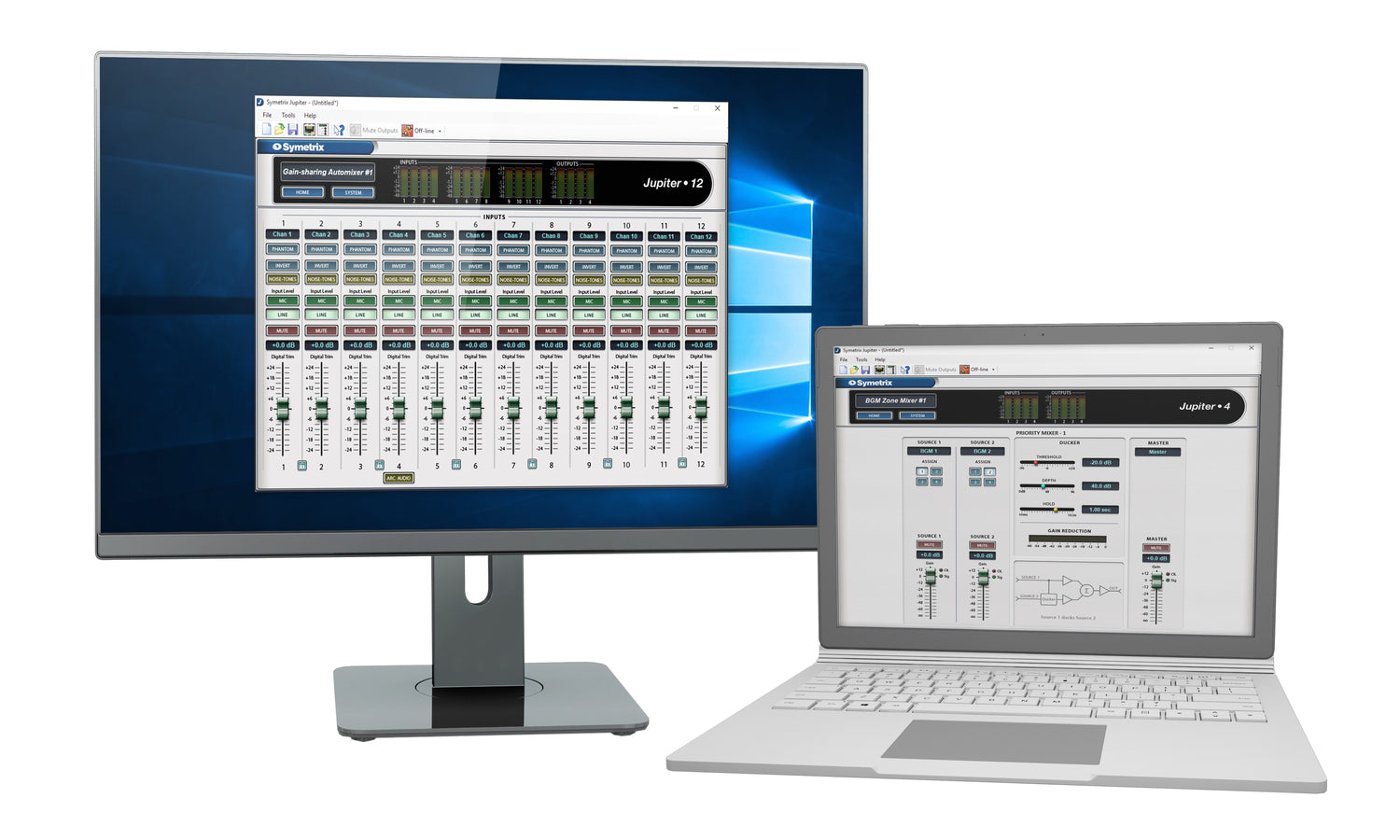

- SymVue Virtual GUI — Generates Windows-based operator control interface.
- 1U Rack-Mount — Compact footprint for small room AV racks.
Typical Applications
- Small conference rooms and huddle rooms with 1–2 mic inputs
- Retail and hospitality background audio with basic processing
- Small commercial meeting spaces with simple routing requirements
- Basic paging and background music installations
Technical Specifications
| Specification | Value |
|---|---|
| SKU | 80-0043 |
| Form Factor | 1U Rack-Mount |
| Analog Inputs | 2 mic/line balanced |
| Analog Outputs | 2 balanced line |
| Applications | 85 pre-built turn-key apps in Composer |
| Wall Panel Support | Symetrix ARC series (RS-485) |
| Control | RS-485, Ethernet |
| Programming Software | Symetrix Composer |
