Symetrix 80-0042 Jupiter 12

Product Overview

The Symetrix Jupiter 12 (SKU: 80-0042) is a 1U rack-mount fixed-architecture commercial DSP processor and the largest model in the Jupiter family. Like the Jupiter 4 and Jupiter 8, it is built around 85 pre-built turn-key Composer applications covering mixing, routing, public address, sound reinforcement, and specialty DSP functions. The Jupiter 12 is designed for conference rooms, training rooms, and commercial AV installations that require more channel capacity than the Jupiter 8 while retaining the rapid-deployment application model. It supports Symetrix ARC wall panels and SymVue virtual GUI interfaces for system control.

Product Description

The Jupiter 12 shares the same turn-key application model as the Jupiter 4 and Jupiter 8 — integrators select and configure from 85 pre-built Composer apps rather than building a signal chain from scratch, reducing programming time for standard commercial audio and conferencing applications. Its larger I/O count accommodates more microphone inputs, additional output zones, and more complex routing requirements than the smaller Jupiter models. ARC wall panels connect via RS-485 for local room control; Ethernet provides network control integration. Multiple Jupiter units can be linked for expanded system capacity. The PSU for Jupiter/Zone Mix (12-0002) is available as a replacement or additional power supply.

Key Features

• Largest Jupiter I/O Configuration — Accommodates conference rooms and training rooms requiring more inputs and output zones than the Jupiter 8.

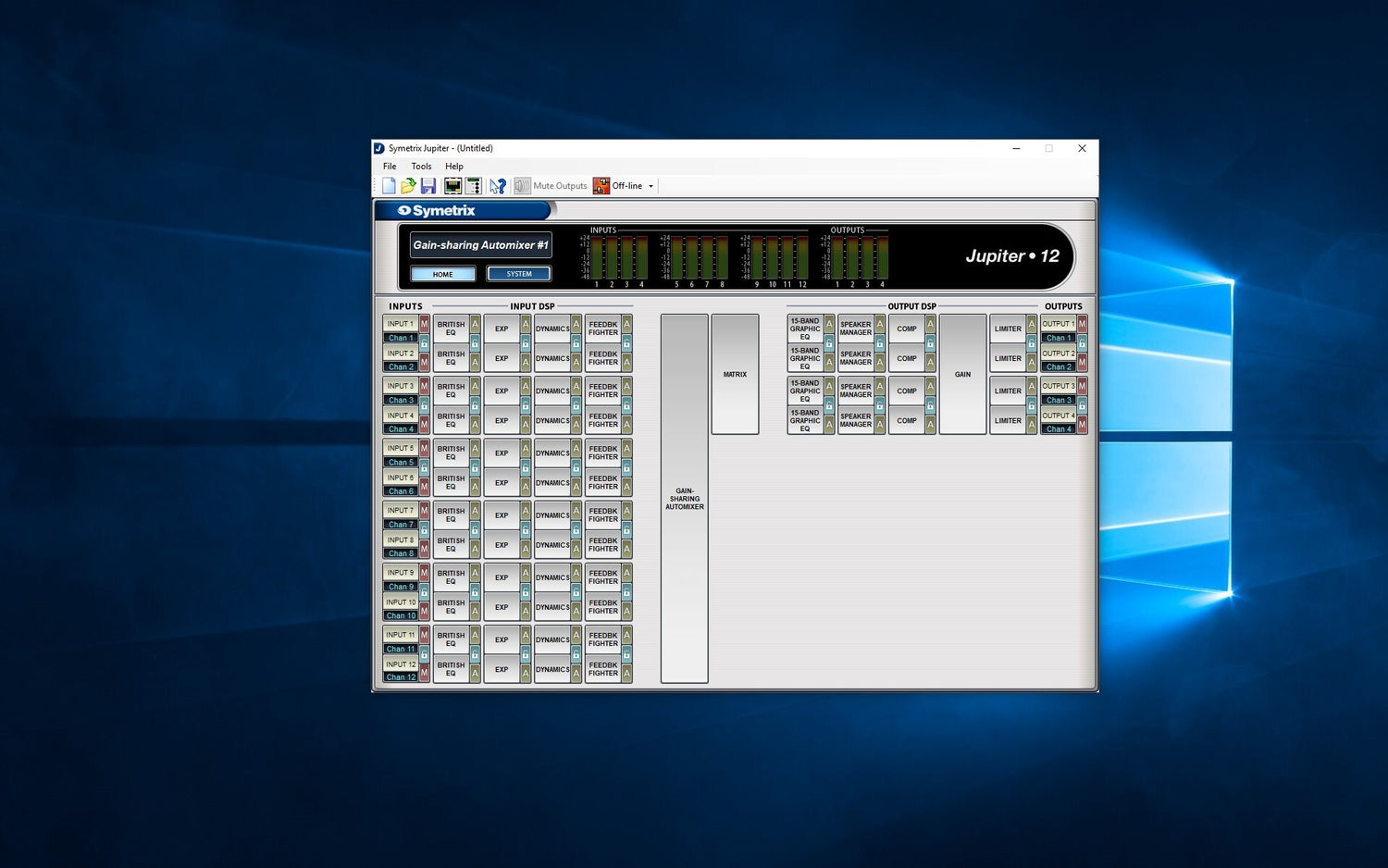

• 85 Turn-Key Applications — Pre-built Composer apps for rapid deployment of standard commercial audio signal chains.
• ARC Wall Panel Support — Full compatibility with ARC-2e, ARC-3, ARC-K1e, and ARC-SW4e controllers.

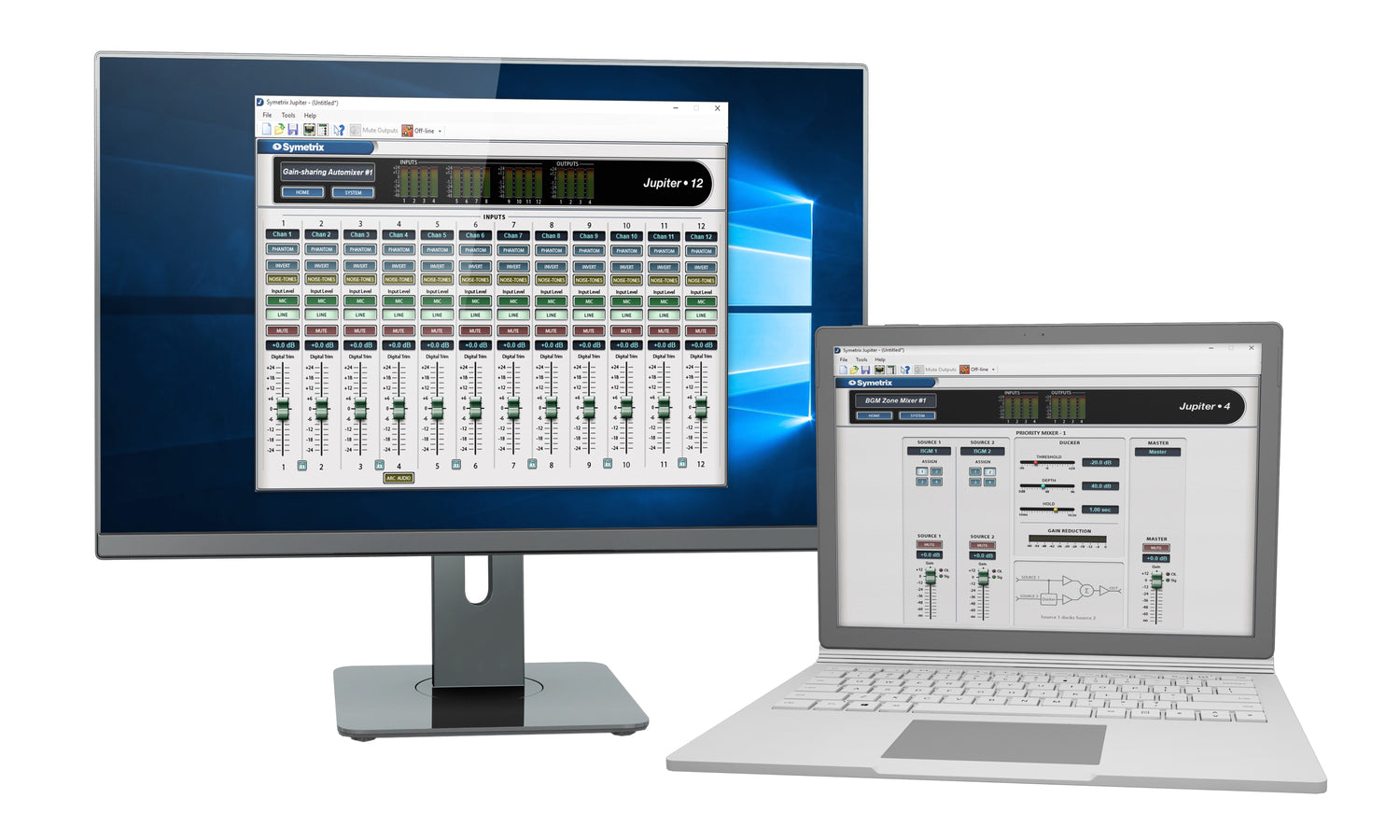

• SymVue Virtual GUI — Generates Windows-based operator control interfaces.

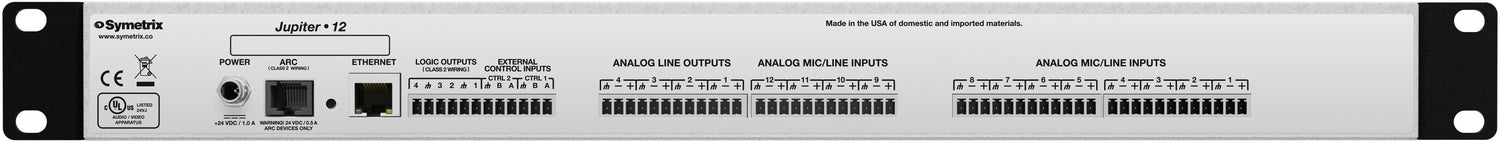

• Ethernet + RS-485 Control — Multiple control protocol options for integration with room control systems.
• Multi-Unit Linking — Link multiple Jupiter units for larger system capacity.

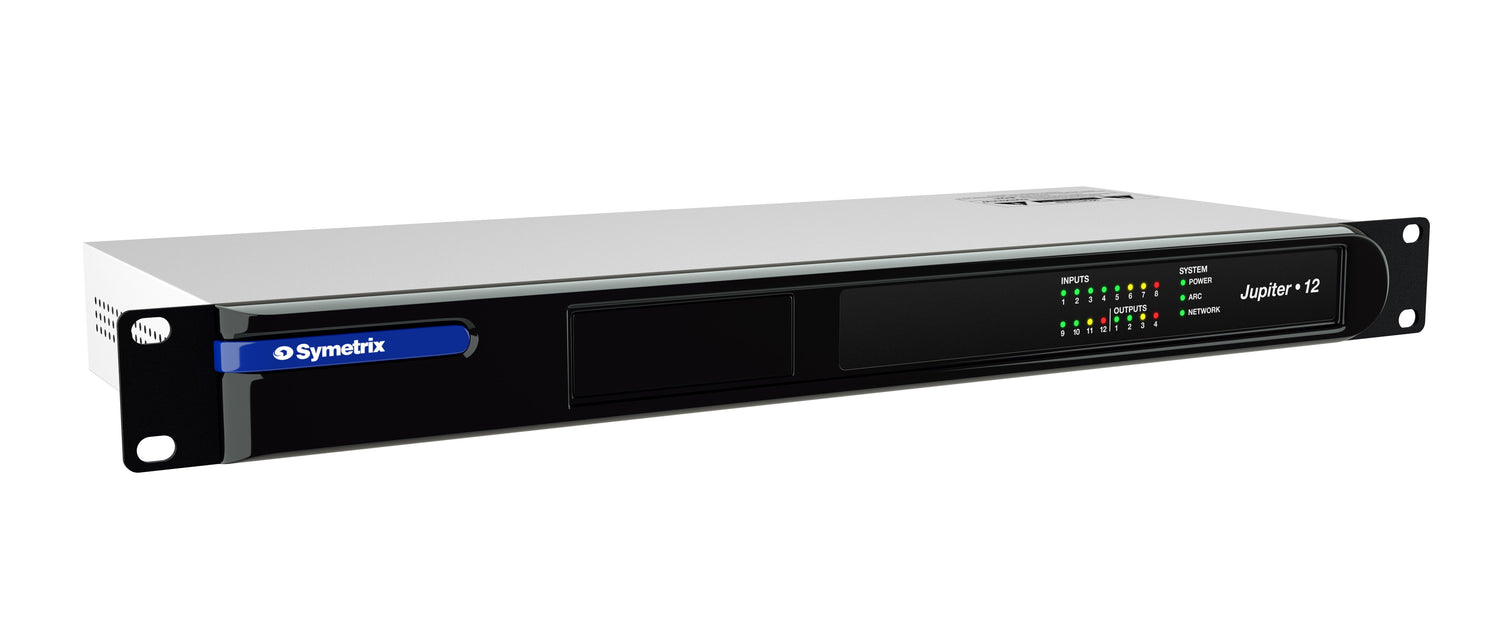

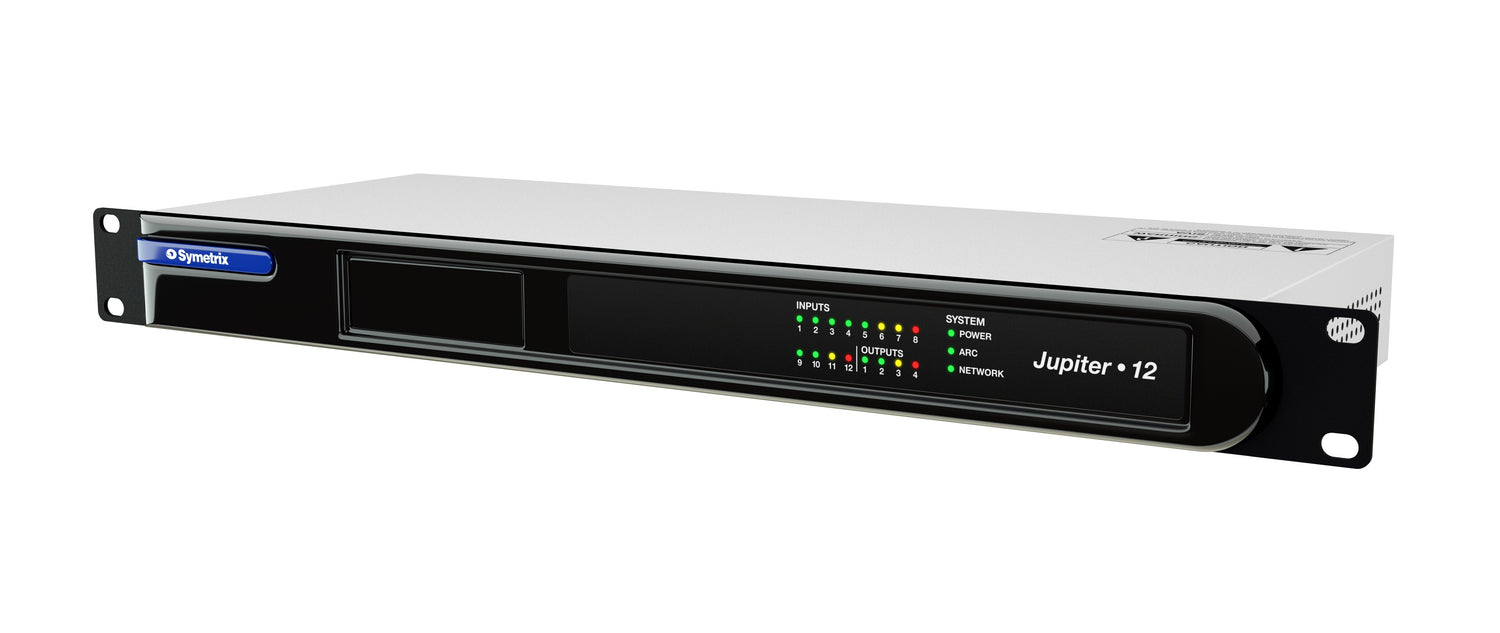

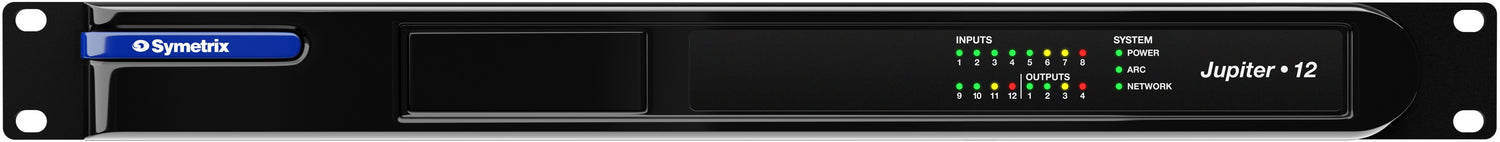

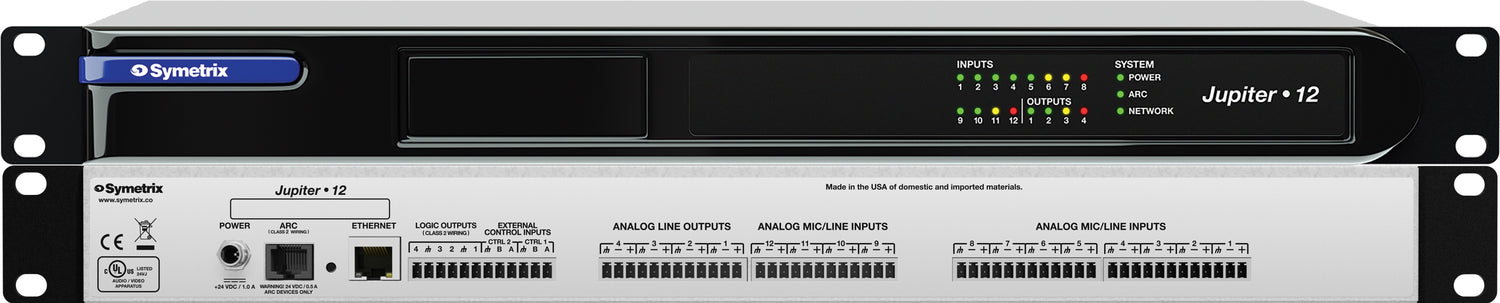

• 1U Rack-Mount — Standard form factor for equipment rack installation.

Typical Applications

• Conference rooms requiring multiple mic inputs and output zones
• Training rooms with paging, background music, and routing
• Commercial meeting spaces with complex audio distribution
• Government spaces requiring rapid DSP deployment
• Houses of worship with multi-zone audio distribution

Technical Specifications

Frequently Asked Questions

Does the Jupiter 12 support Dante?

No. The Jupiter family is analog I/O only. For Dante-enabled commercial DSPs, consider the Prism, EDGE, or Radius NX platforms.

Can I combine a Jupiter 12 with a Jupiter 8 in the same system?

Multiple Jupiter units can be linked for larger systems. Contact Creation Networks for system design assistance.
