Symetrix 80-0037 Jupiter 8

Product Overview

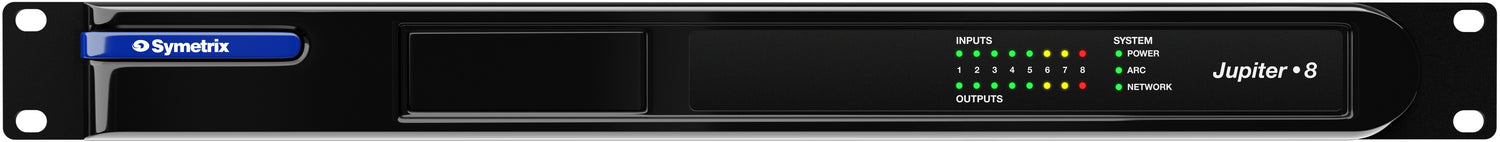

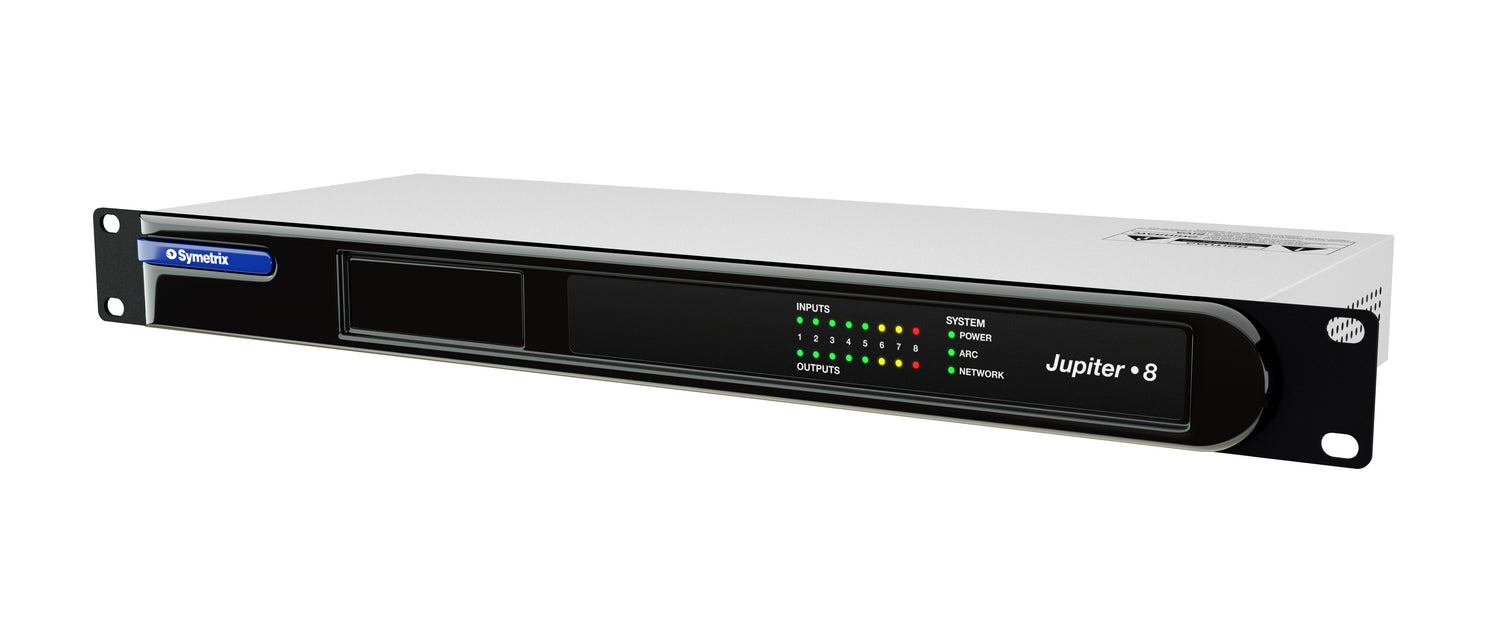

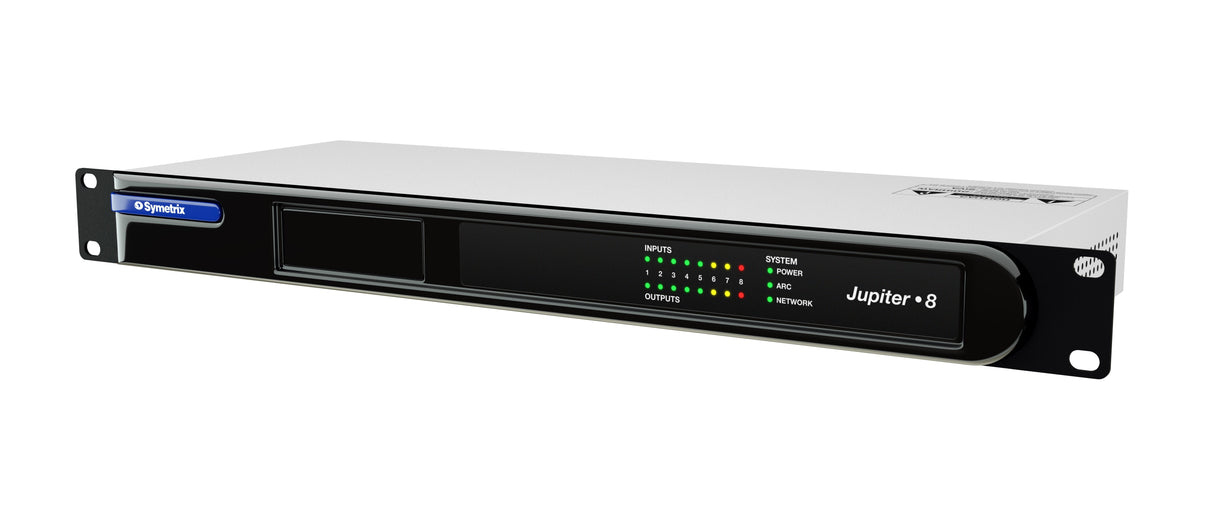

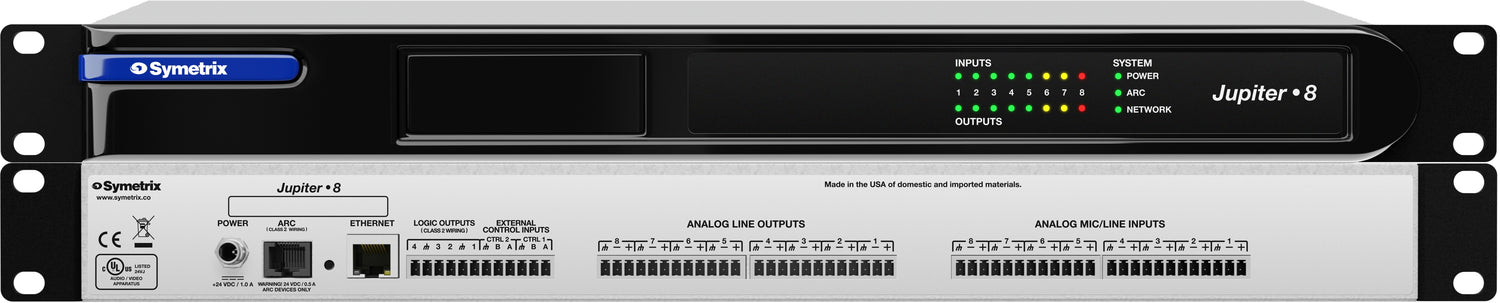

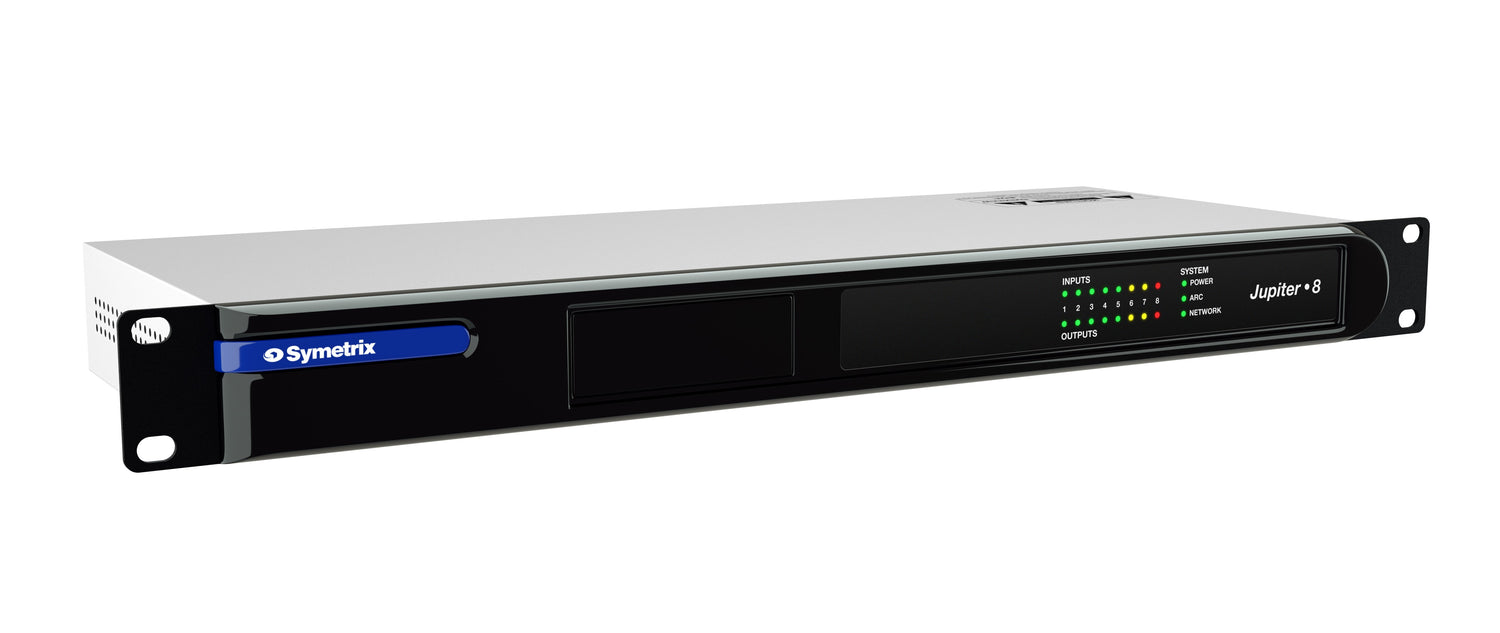

The Symetrix Jupiter 8 (SKU: 80-0037) is a 1U rack-mount fixed-architecture commercial DSP processor providing 4 mic/line inputs and 4 balanced analog outputs in an 8x8 channel configuration. It is part of the Symetrix Jupiter family — a purpose-built line of turn-key DSPs that deploy quickly using 85 pre-built application programs covering mixing, routing, public address, sound reinforcement, and specialty DSP functions. The Jupiter 8 is suited to conference rooms, training rooms, commercial meeting spaces, and small commercial audio systems where rapid deployment and simplified programming are priorities.

Product Description

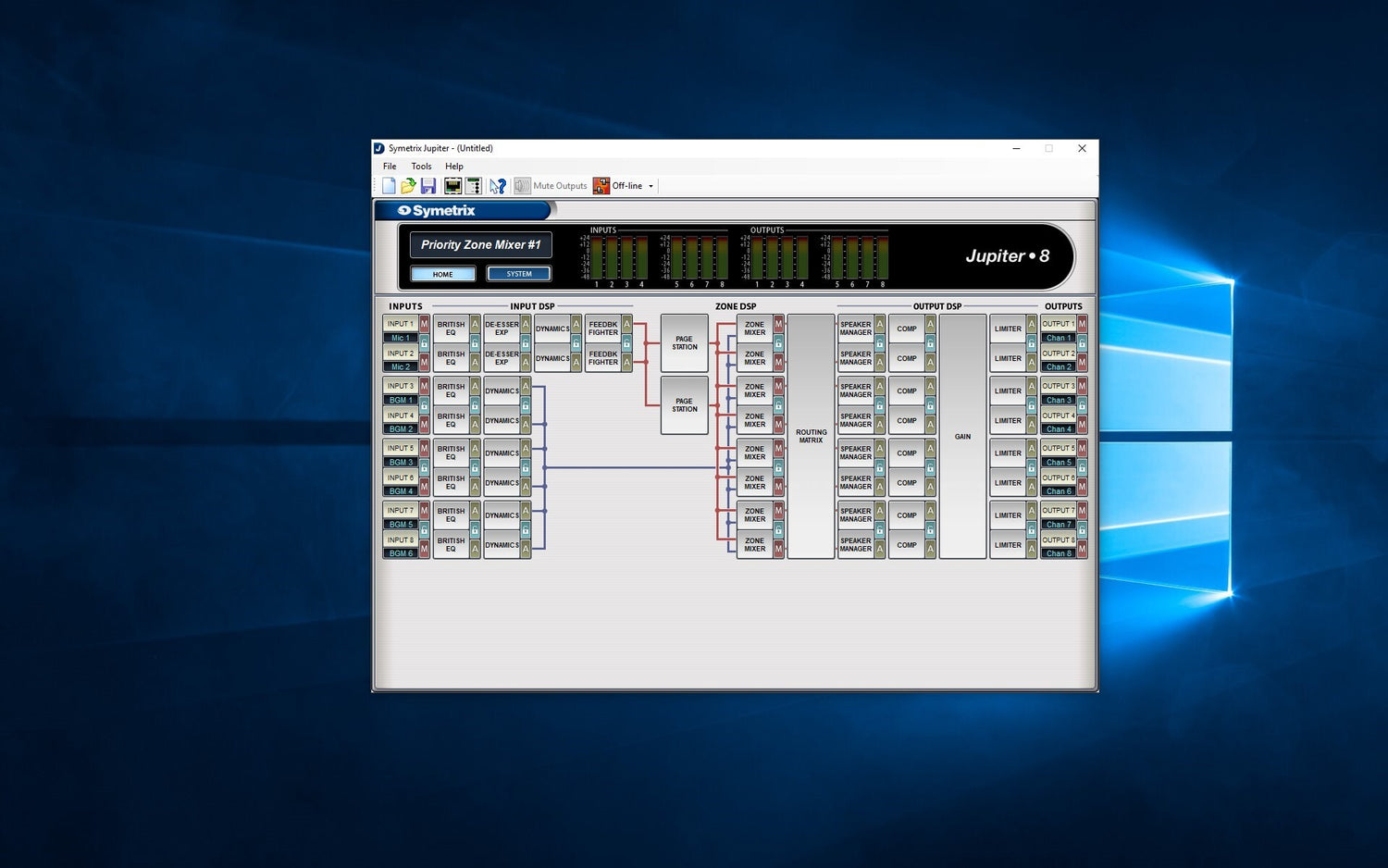

Unlike the open-architecture Prism, EDGE, and Radius NX platforms, the Jupiter 8 uses a turn-key application model: the integrator selects one of 85 pre-built applications in Symetrix Composer to define the signal processing topology, which can then be customized with parameter adjustments rather than building a signal chain from scratch. This approach significantly reduces programming time for standard applications. The Jupiter 8 supports Symetrix ARC wall panels and can generate SymVue Windows virtual GUI interfaces for operator control. Control options include RS-485 for ARC panels and Ethernet for network control. Multiple Jupiter units can be linked for larger systems. For installations requiring PSU replacement or redundancy, the Jupiter/Zone Mix PSU (12-0002) is available separately.

Key Features

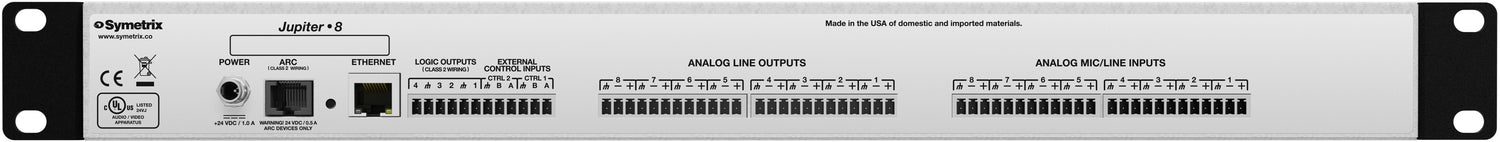

• 4 Mic/Line Inputs — Balanced analog inputs covering microphone and line-level sources.
• 4 Balanced Analog Outputs — Line-level outputs for speaker zones and downstream signal processing.
• 85 Turn-Key Applications — Pre-built DSP programs in Composer covering mixing, PA, sound reinforcement, room combining, and specialty functions.
• ARC Wall Panel Support — Compatible with Symetrix ARC-2e, ARC-3, ARC-K1e, ARC-SW4e, and ARC-EX4e wall panels for local room control.

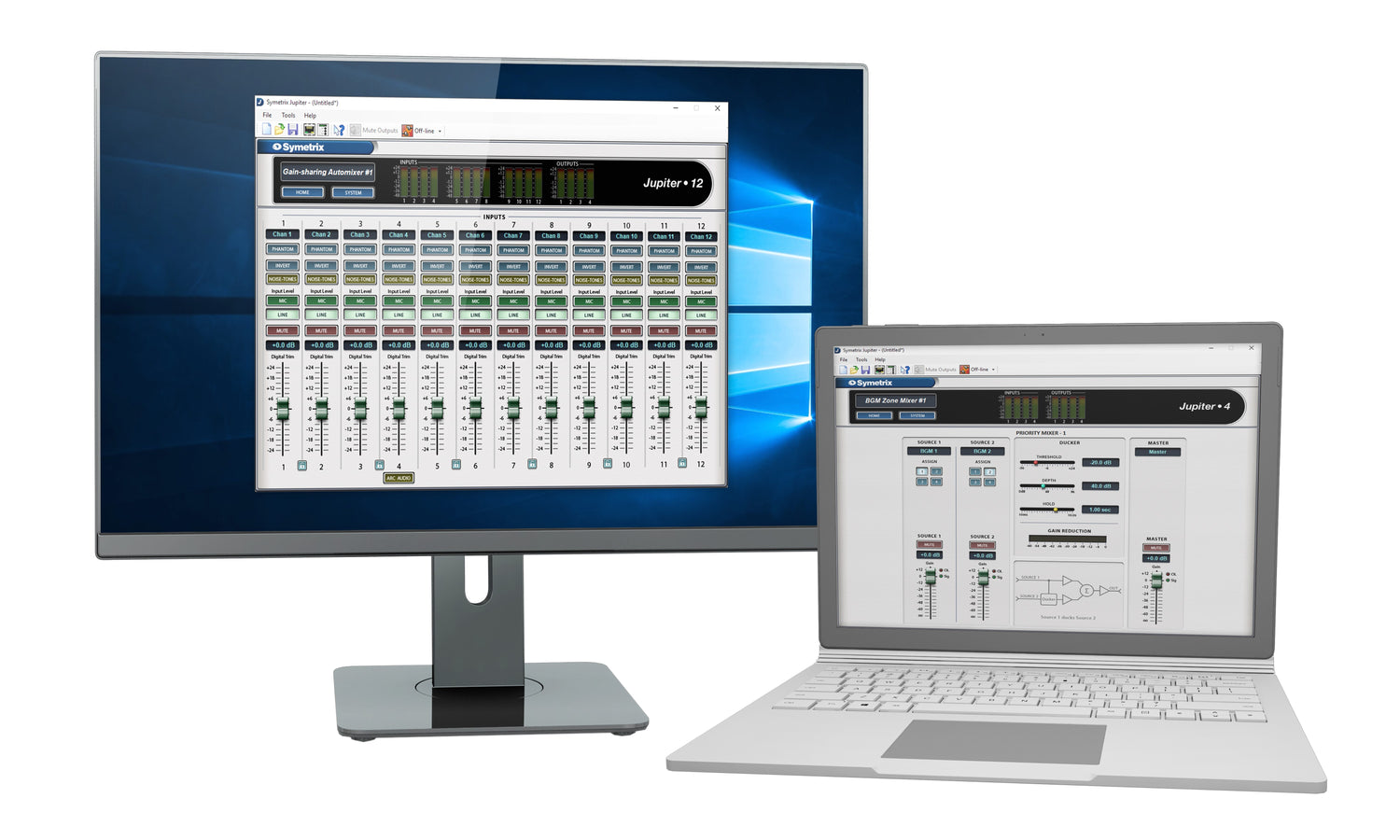

• SymVue Virtual GUI — Generates Windows-based virtual control panels for operator use without a dedicated touch panel.
• Multi-Unit Linking — Multiple Jupiter units can be linked to scale system capacity.
• 1U Rack-Mount — Standard form factor for equipment rack installation.

Typical Applications

• Conference rooms and boardrooms requiring rapid DSP deployment
• Commercial meeting spaces with standard mixing and routing requirements
• Training rooms with paging and background music distribution
• Small houses of worship with basic audio signal processing
• Hospitality and retail audio systems with zone distribution

Technical Specifications

Frequently Asked Questions

What is the difference between the Jupiter DSP and the Prism DSP?

The Jupiter uses a turn-key application model — the integrator selects from 85 pre-built Composer apps and adjusts parameters. The Prism, EDGE, and Radius NX use open-architecture programming where the signal chain is built from scratch in Composer. Jupiter is faster to deploy for standard applications; Prism/EDGE/Radius NX offer greater flexibility for custom signal paths.

Does the Jupiter 8 support Dante?

No. The Jupiter family uses analog I/O only. For Dante-enabled DSPs in a similar price range, consider the Prism 4x4 Dante (80-0114) or Prism 8x8 Dante (80-0115).

What ARC wall panels are compatible with the Jupiter 8?

All Symetrix ARC wall panels connect to the Jupiter via RS-485, including the ARC-2e, ARC-3, ARC-K1e, and ARC-SW4e.
