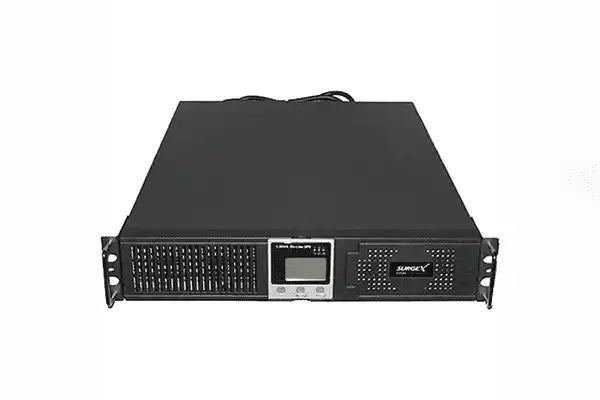

SURGEX UPS-1000-OL 2U Stand-Alone Online Battery Backup (1000VA)

Product Overview

The SurgeX UPS-1000-OL is a 1000VA online double conversion UPS designed to provide continuous, uninterrupted power to sensitive AV equipment, critical business systems, and network infrastructure in a compact 2U rack-mount or tower form factor. As an entry-level standalone online UPS for AV system integration, the UPS-1000-OL delivers true sine-wave output with zero transfer time on a 15A 120VAC input circuit, making it appropriate for conference room AV racks, huddle room equipment, and smaller commercial meeting space installations. The online double conversion topology guarantees that connected equipment never experiences the brief power interruption inherent in line interactive designs, and the hot-swappable battery trays allow field maintenance without service shutdown. Runtime scalability from 7 minutes on internal batteries to 18 hours via external battery packs makes this unit viable for both standard AV protection and extended-holdover applications.

Product Description

The UPS-1000-OL operates on true online double conversion technology: all incoming 120VAC is rectified to DC, simultaneously charging the internal battery bank and powering the inverter that supplies connected equipment. The inverter is active at all times, so when utility power fails, the battery absorbs the DC bus load without any switching event. Connected AV processors, control systems, and network devices continue to operate without interruption, which is essential for installations where even a momentary power gap causes system resets or lost AV signal paths.

At 1000VA capacity with a standard NEMA 5-15P input plug, the UPS-1000-OL is well-suited for smaller AV racks and single-zone installations. It is the entry point in the SurgeX OL series and shares the same double conversion architecture as the 2000VA and 3000VA models. The controllable receptacle design allows individual outlet management, enabling AV integrators to sequence power or selectively shed non-critical loads during battery operation to extend effective runtime for the most important equipment in the rack.

The UPS-1000-OL installs in 2U of a standard 19-inch equipment rack or stands alone as a tower unit. It ships with horizontal rack brackets, 5:1 rack brackets, a 6-foot DB9 serial cable, and the UPSILON UPS monitoring software. An intuitive LED display on the front panel provides real-time visibility into operating mode, input and output voltage, battery charge level, and connected load percentage. The hot-swappable battery tray design means battery replacement does not require a service shutdown — batteries can be exchanged while the unit continues to power connected equipment. An optional SNMP card adds network-based monitoring and automated shutdown capability for managed commercial AV deployments. The RS-232 interface is standard and works with the included UPSILON software for local monitoring. External battery packs (UPS-BPX-1000) extend runtime significantly beyond the internal battery capacity, supporting applications where multi-hour holdover is required.

Key Features

• Online Double Conversion Topology — Inverter is always active, providing zero transfer time during utility power failures and full isolation from supply voltage variations and noise.
• 1000VA Capacity — Appropriate for conference room AV racks, huddle rooms, and single-zone commercial AV installations with moderate load requirements.
• True Sine-Wave Output — Clean sine-wave output is compatible with active PFC power supplies in modern AV processors, control systems, and network switches.
• Controllable Receptacles — Individual outlet switching allows load prioritization and sequenced shutdown during battery operation.
• Hot-Swappable Battery Trays — Batteries are field-replaceable without powering down connected equipment, supporting zero-downtime maintenance in commercial installations.
• Scalable Runtime up to 18 Hours — Internal batteries provide rated backup time; external battery packs (UPS-BPX-1000) extend runtime to 18 hours.
• 2U Rack-Mount or Tower Form Factor — Compact 2U chassis fits standard 19-inch AV and IT racks; tower configuration available for non-rack deployments.
• LED Status Display — Front-panel LED screen provides real-time operating mode, voltage, battery, and load information without requiring software.
• RS-232 Communications (Standard) — Serial interface for local UPS monitoring and shutdown scripting using the included UPSILON software.
• Optional SNMP Card — Network-based monitoring and automated graceful shutdown for managed commercial AV and IT deployments.
• Auto Restart — Automatically restores output when utility power returns, reducing the need for on-site technician response after power events.
• Start on Battery — Can be powered up from battery without utility power present, useful for mobile or temporary AV installations.

Typical Applications

• Conference room AV racks
• Huddle room AV and videoconferencing equipment
• Commercial meeting space AV infrastructure
• Boardroom control system power protection
• Training room AV system protection
• Multi-purpose room AV racks
• Government facility small AV equipment rooms

Technical Specifications

Frequently Asked Questions

Is the UPS-1000-OL appropriate for a conference room AV rack?

Yes. The UPS-1000-OL is designed for exactly this use case. It provides zero transfer time double conversion protection for AV processors, control system controllers, network switches, and display drivers in conference room and huddle room racks. At 1000VA capacity, it is well-matched for small to mid-size AV racks with moderate total connected load.

What is the difference between online double conversion and line interactive UPS technology?

A line interactive UPS supplies utility power directly to connected equipment under normal conditions and transfers to battery-derived output only when utility power exceeds defined thresholds, which introduces a transfer gap. The UPS-1000-OL’s double conversion design always runs connected equipment from the inverter output. There is no transfer event when utility power fails, making it the correct choice for AV and control systems that are sensitive to even a sub-cycle power interruption.

Can the UPS-1000-OL be monitored over a network?

Yes, with the optional SNMP card. The SNMP interface integrates with network management platforms and supports automated graceful shutdown. The RS-232 interface is standard and connects to the UPSILON monitoring software for serial-based management. For managed commercial AV deployments, the SNMP card is the recommended configuration.

How long does the UPS-1000-OL run on internal batteries?

Actual runtime depends on connected load. The internal batteries provide rated backup time for the connected load at the UPS’s rated capacity. Lighter loads yield proportionally longer runtime. External battery packs (UPS-BPX-1000) can extend runtime to up to 18 hours for applications requiring extended holdover.

Are the batteries user-replaceable without a service shutdown?

Yes. The UPS-1000-OL uses hot-swappable battery trays. Batteries can be removed and replaced while the unit is energized and connected equipment continues to operate. Replacement batteries are available through Creation Networks.

What rack space does the UPS-1000-OL require?

The UPS-1000-OL occupies 2U in a standard 19-inch equipment rack. Unit dimensions are 17.3" x 25.6" x 3.4" and the unit weighs 57.3 lbs. It can also be deployed in tower orientation for non-rack installations. Rack structural capacity should be verified before installation.

Where can I buy the SurgeX UPS-1000-OL and get support?

The UPS-1000-OL is available through Creation Networks. For current pricing, availability, and technical support for commercial AV installations, visit creationnetworks.net.
